996124 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Floor Panel and Shields Parts Diagram

Treker Utility Vehicle, 4x2, Red

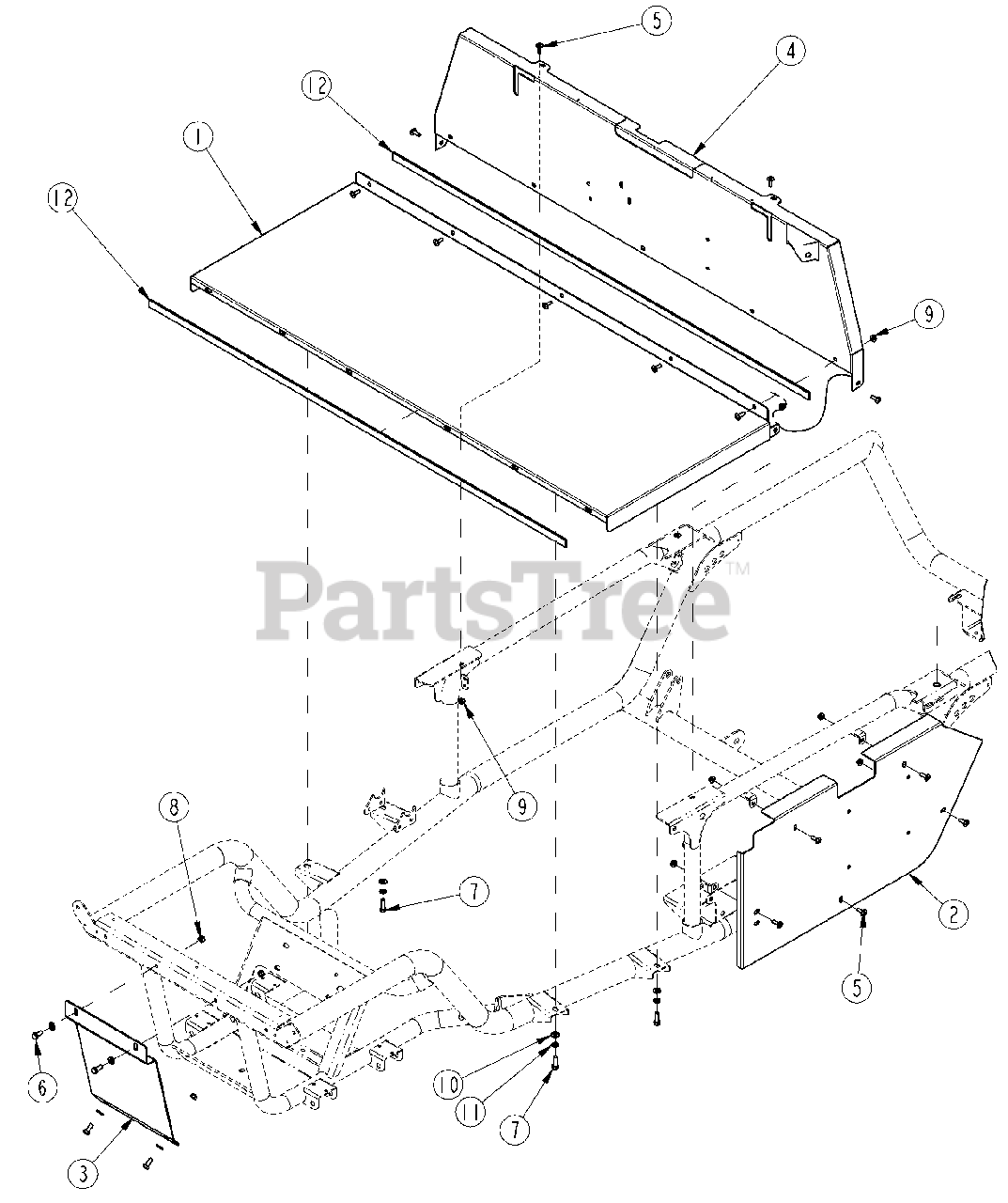

Floor Panel and Shields Parts Diagram

  • Title

1

700-047H

FLOOR WIDE WELDMENT

$

$

Not available

2

700-145D

SIDE PANEL, WIDE

$

$

Not available

3

700-197D

FRONT FRAME GUARD ST

$

$

Not available

4

700-289H

KICK PANEL WLDMNT (ST)

Note: (ST)

$

$

Not available

5

801-180C

TPHMS Y 1/4-20 X 3/4 YELLOW DIE

$

$

Not available

6

Gravely 05947000

BOLT, HEX 5/16-18 X 3/4 GR5 YELLOW DI
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05946900

BOLT, HEX 5/16-18 X 1 GR5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06530200

NUT, NYLON LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

803-293C

NUT HEX FLNG T-LOCK 1/4-20 PLT

$

$

Not available

10

Gravely 06400536

WASHER, FLAT 5/16 HARDENED ASTMF436

$

$

Not available

11

Gravely 06308600

WASHER, LOCK SPRING 5/16 YELLOW
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

990-227R

FOAM RUBBER 3/16 X 3/4 THK W/PSA 52.5" Lg.

$

$

Not available
