996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 020000 & Above) Steering Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

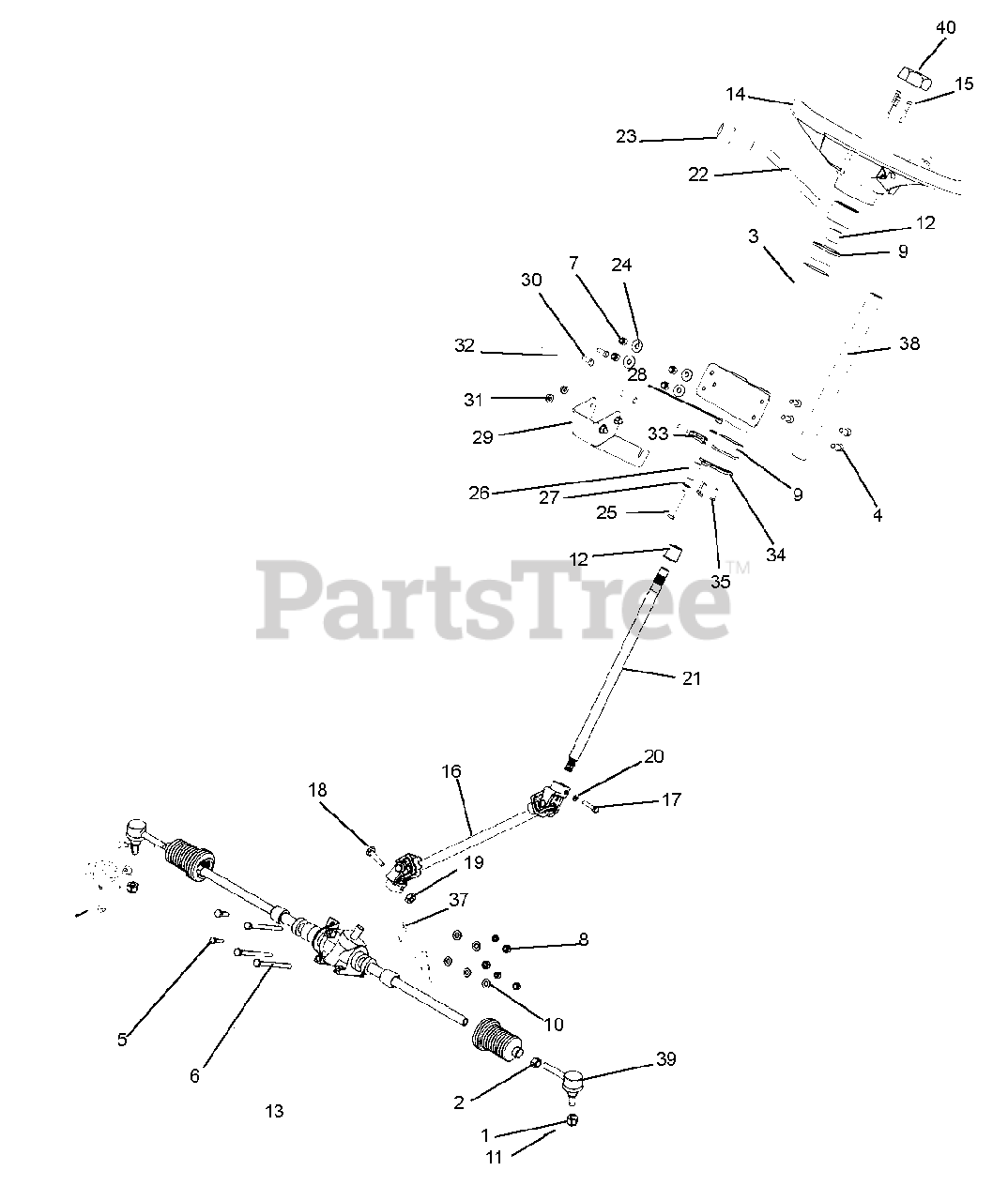

Steering Parts Diagram

  • Title

1

Gravely 06520002

NUT, HEX SLOTTED M12 X 1.25 YWZC

$

$

Not available

2

Gravely 06548100

NUT, HEX M14 X 1.5 GR8.8 YWZC

$

$

Not available

3

Gravely 04157951

STEERING COLUMN WELDMENT

$

$

Not available

4

Gravely 05947000

BOLT, HEX .31-18 X .75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05952400

BOLT, HEX .31-18 X 1.50 GR5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

6

Gravely 05973900

BOLT, HEX .31-18 X 4.50 GR5 YWZC

$

$

Not available

7

Gravely 06530200

NUT, LOCK NYLOC .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06543100

NUT, LOCKING TOP FLANGE .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04157300

BUSHING, STEERING COLUMN, LARGE

$

$

Not available

10

Gravely 06435700

WASHER, FLAT STEEL .38 X .875 X .083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

11

805-063C

PIN, COTTER 3/32 X 1 LONG

$

$

Not available

12

Gravely 04157200

BUSHING, STEERING COLUMN, SMALL

$

$

Not available

13

Gravely T826-400C

RACK & PINION ST

$412.99

$

Usually ships in 4-12 days

0

14

Gravely 03964990

STEERING WHEEL, 3 SPK CONTOUR

$108.99

$

Usually ships in 4-12 days

0

15

Gravely 00967418

BOLT, 10-24 X 1.25 SOCKET GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

16

Gravely T840-093C

STEERING SHAFT TRUCK

$

$

Not available

17

Gravely T23035

MVL BOLT FOR T840-093C

$

$

Not available

18

Gravely T802-628C

HHCS M10 X 1.5 X 35 PLT

$

$

Not available

19

Gravely 06542400

NUT LOCK NYLOC M10 X 1.5 PLT

$

$

Not available

20

Gravely T20061

MVL SPRING WASHER FOR T840-093C

$

$

Not available

21

Gravely T840-130C

UPPER STEERING SHAFT TRUCK ASSEMBLY

$35.99

$

Usually ships in 4-12 days

0

22

Gravely 04160551

WLDT, COLUMN SHIFT LEVER

$

$

Not available

23

Gravely T840-288C

SHIFTER KNOB

$

$

Not available

24

Gravely 06435700

WASHER, FLAT STEEL .38 X .875 X .083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05967100

BOLT, HEX .25-20 X 2.00 GR5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 04300451

SHIFT STOP

$

$

Not available

27

Gravely 06437300

WASHER, FLAT STEEL 281 X .62 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06531000

NUT, LOCK NYLOC .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

29

Gravely 04237251

CABLE BRACKET, SHIFTER

$

$

Not available

30

Gravely 05946800

BOLT, HEX .25-20 X .75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06530100

NUT, LOCKING FLANGE .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

32

Gravely T840-270C

SHIFT CABLE (DASH)

Note: (DASH)

$145.99

$

Usually ships in 4-12 days

0

33

Gravely T890-884C

YOKE 10-32 WITH LOCK

$

$

Not available

34

Gravely 04157400

CAM, COLUMN SHIFTER

$

$

Not available

35

Gravely 05901511

SHCS #10-24 X .750

$1.99

$

In Stock, only 3 left!

0

36

Gravely 04062500

CAP, STEERING WHEEL (Not Shown)

Note: (Not Shown)

$

$

Not available

37

Gravely 04338851

SPACER, STEERING

$

$

Not available

38

Gravely 04157100

SHAFT, COLUMN SHIFTER

$137.99

$

Usually ships in 4-12 days

0

39

Gravely T0180006

TIE ROD END

$

$

Not available

40

Gravely T803-283C

NUT HEX M16X2.00X8MM THK PLT

$

$

Not available
