996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 020000 & Above) Rear Brake Drum Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

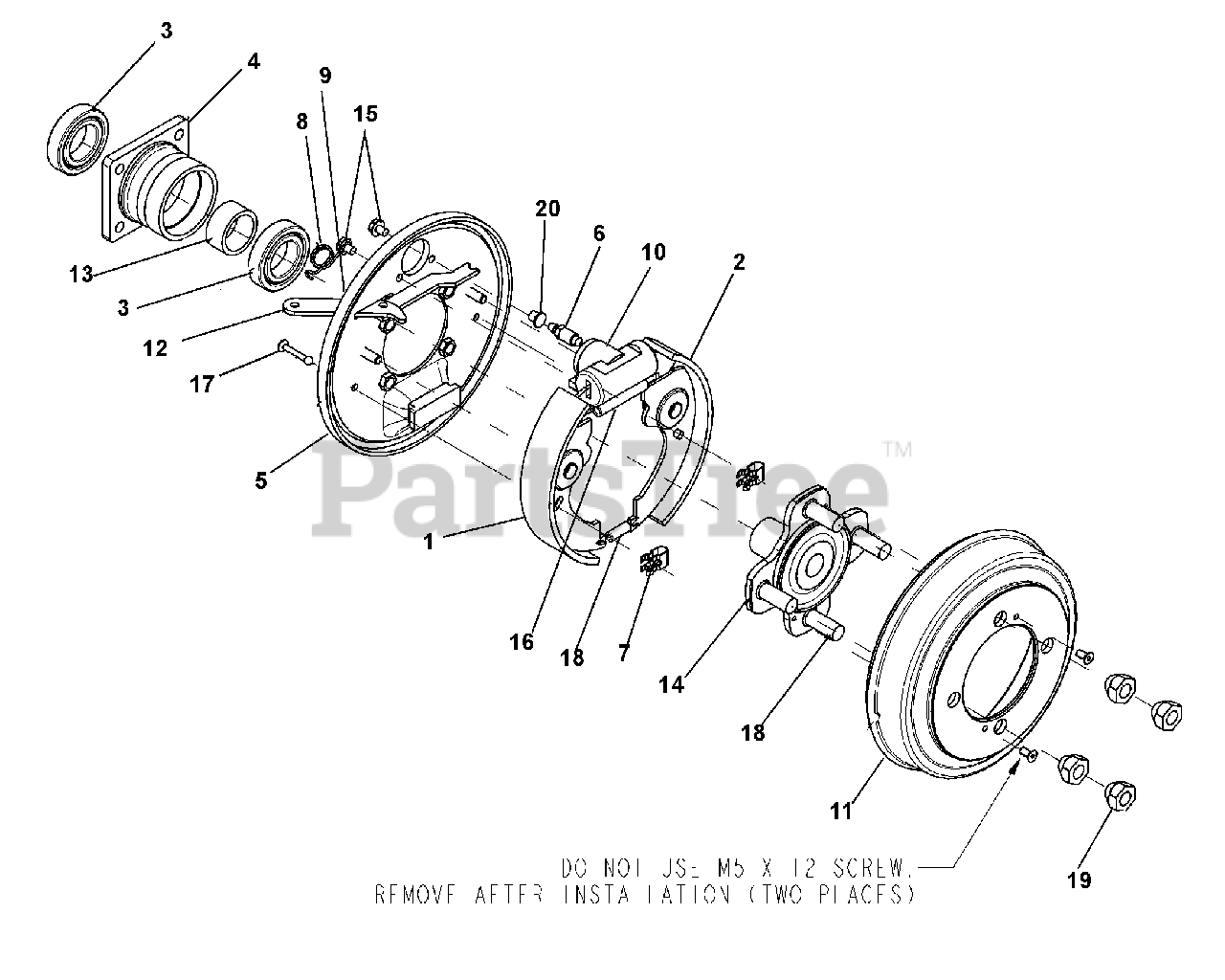

Rear Brake Drum Parts Diagram

  • Title

--

Gravely T815-145C

RIGHT HAND DRUM ASSEMBLY 180mm 4 ON 4" BC (Item 17 NOT INCLUDED)

Note: (Item 17 NOT INCLUDED)

$

$

Not available

--

Gravely T815-146C

LEFT HAND DRUM ASSEMBLY 180mm 4 ON 4" BC (Item 17 NOT INCLUDED)

Note: (Item 17 NOT INCLUDED)

$

$

Not available

1

F136

LEFT SHOE

$

$

Not available

2

F137

RIGHT SHOE

$

$

Not available

3

F777

BALL BEARING

$

$

Not available

4

F855

BEARING HOLDER HUB

$

$

Not available

5

F179

BRAKE SHOE DISC RIGHT HAND

$

$

Not available

F178

BRAKE SHOE DISC LEFT HAND

$

$

Not available

6

F827

BLEEDER SCREW

$

$

Not available

7

F622

SHOES LOCKING SPRING

$

$

Not available

8

F792

RIGHT SPRING/HAND BRAKE LEVER

$

$

Not available

9

F793

LEFT SPRING/HAND BRAKE LEVER

$

$

Not available

10

F261

HYDRAULIC CYLINDER

$

$

Not available

11

F908

DRUM

$

$

Not available

12

F176

RIGHT LEVERS SET

$

$

Not available

F177

LEFT LEVERS SET

$

$

Not available

13

F852

CMX SPACER

$

$

Not available

14

Gravely F175

BRAKE FLANGE HUB WITH STUDS

$168.99

$

Usually ships in 4-12 days

0

15

F258

SCREW M6 X 40

$

$

Not available

16

F610

UPPER RETURN SPRING

$

$

Not available

17

F621

SPRING PIN

$

$

Not available

18

F609

LOWER RETURN SPRING

$

$

Not available

19

Gravely 06553000

WHEEL NUT .500-20 YZ
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

20

NA

BLEEDER CAP

$

$

Not available
