996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 020000 & Above) Hood Assembly Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

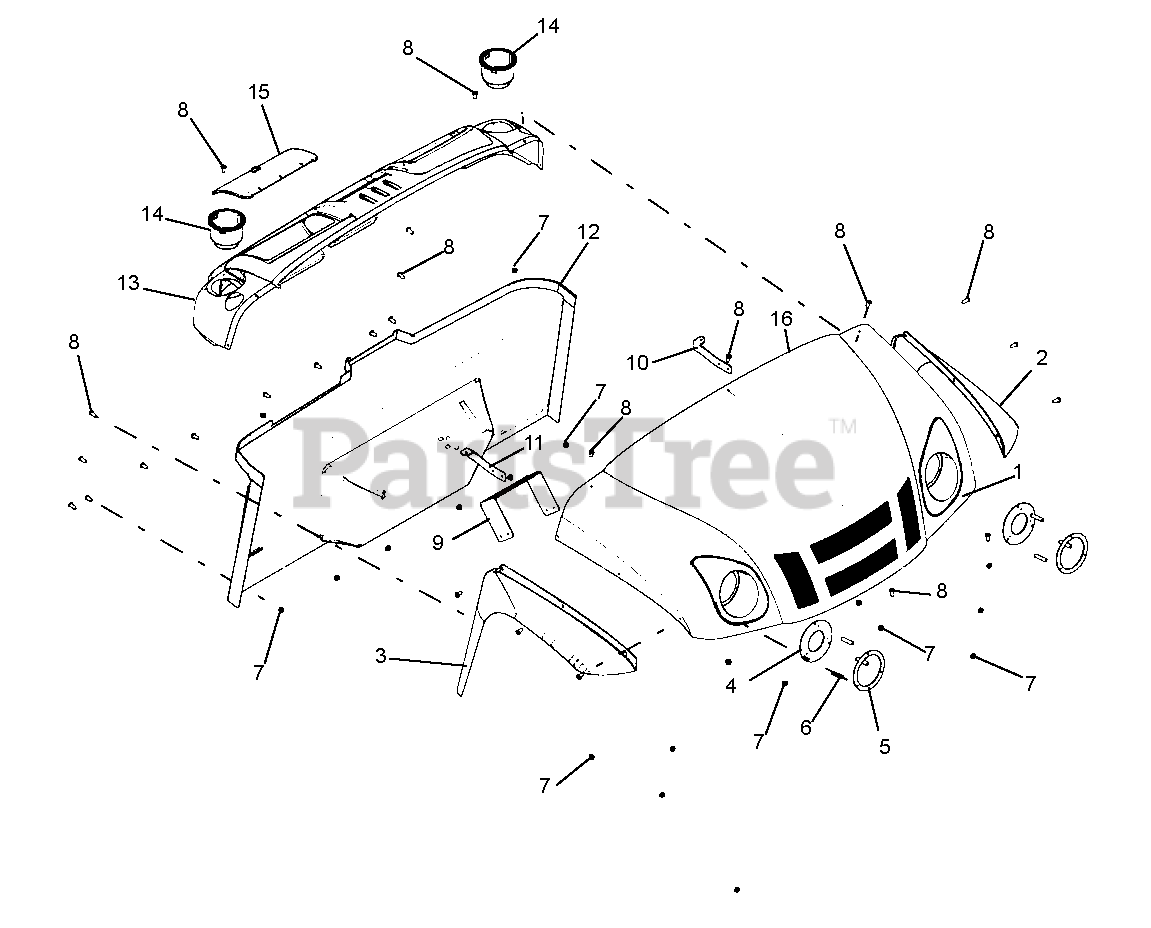

Hood Assembly Parts Diagram

  • Title

1

Gravely 50528000

KIT, HOOD WITH DECALS (996123, 125, 146)

Note: (996123, 125, 146)

$

$

Not available

Gravely 50528007

KIT, CAMO HOOD WITH DECALS (996147)

Note: (996147)

$

$

Not available

2

Gravely 04075002

FENDER, FRONT, LEFT HAND

$

$

Not available

3

Gravely 04075003

FENDER, FRONT, RIGHT HAND

$

$

Not available

4

Gravely 04266651

TOP FLANGE, HEADLIGHT

$

$

Not available

5

Gravely 04266551

BASE FLANGE, HEADLIGHT

$

$

Not available

6

Gravely 04266751

SPACER, HEADLIGHT

$

$

Not available

7

Gravely T803-293C

NUT, HEX FLANGE TL 1/4-20 ZNYCR

$

$

Not available

8

Gravely T801-181C

TTHMS 1/4-20 X 1 ZNYCR

$

$

Not available

9

Gravely 04182851

BRACKET, MOUNTING SWITCH

$

$

Not available

10

Gravely 04183351

BRACKET, CUPHOLDER, LEFT HAND

$

$

Not available

11

Gravely 04182751

BRACKET, CUPHOLDER, RIGHT HAND

$

$

Not available

12

Gravely 50528005

KIT, FOOTWELL WITH DECALS

$

$

Not available

13

Gravely 50528013

DASH ASSEMBLY WITH DECALS

$

$

Not available

14

Gravely 04192700

CUP, HOLDER SNAP-IN 3.75 OD

$

$

Not available

15

Gravely 04280000

DOOR, GLOVEBOX ASSEMBLY

$

$

Not available

16

Gravely T816-318C

TRIM, 1/8 RUBBER EDGE

$

$

Not available
