996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 020000 & Above) Floor Panel and Shields Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

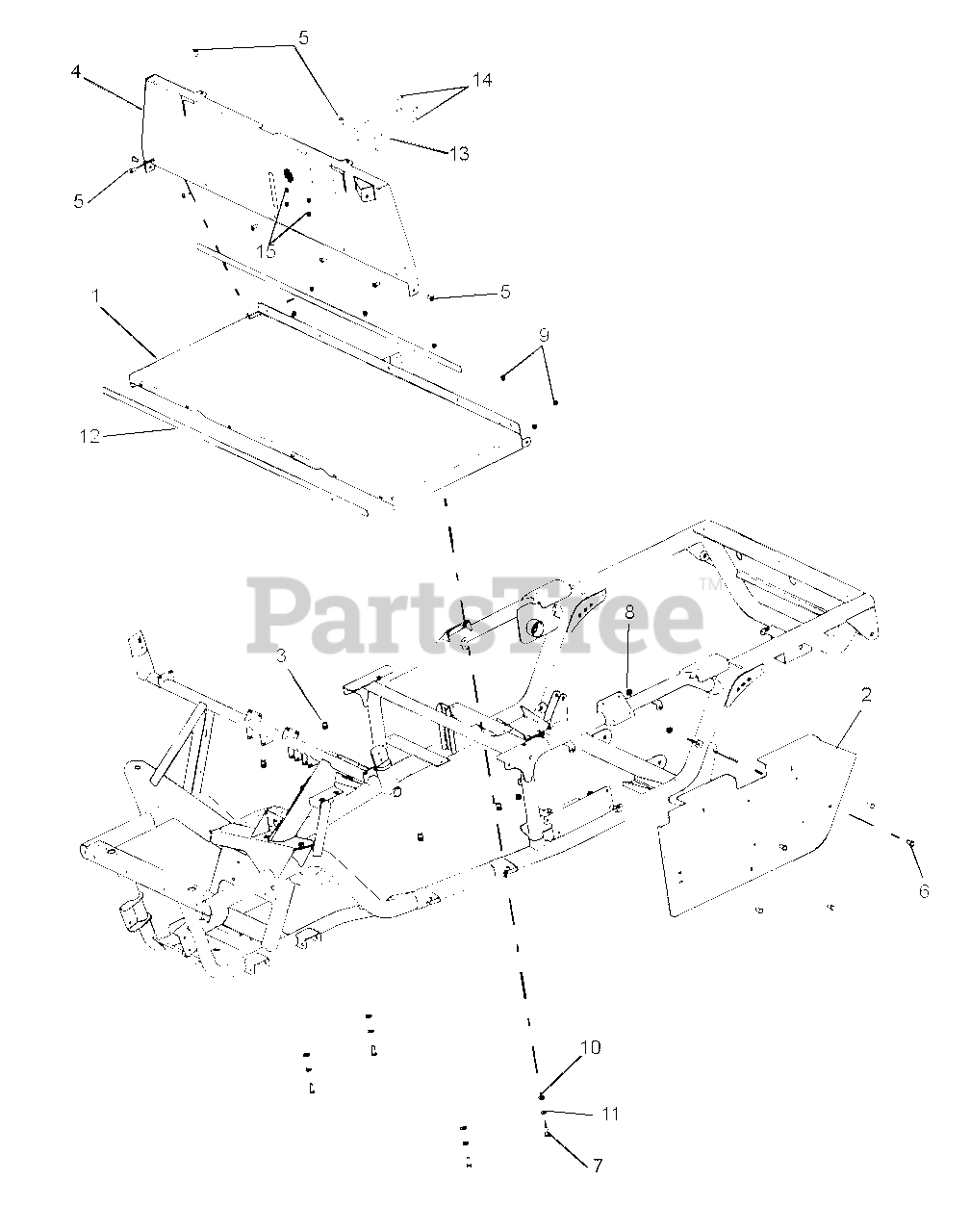

Floor Panel and Shields Parts Diagram

  • Title

1

Gravely 04259651

FLOOR WIDE WELDMENT

$

$

Not available

2

Gravely T700-145D

SIDE PANEL, WIDE

$

$

Not available

3

Gravely 06500638

NUTZERT, 5/16-18 X .667 HEX

$

$

Not available

4

Gravely 04268351

KICK PANEL WLDMNT

$

$

Not available

5

Gravely 06114400

SCREW, MACHINE .25-20 X .75 TXTR YWZC

$0.99

$

In Stock, Qty 10

0

6

Gravely 05947000

BOLT, HEX 5/16-18 X 3/4 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05946900

BOLT, HEX 5/16-18 X 1 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

NUT, HEX TOP LOCK FLANGE .312-18YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06543500

NUT, LOCKING TOP FLANGE 1/4-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

10

Gravely T804-084C

WASHER, FLAT 5/16 HARDENED ASTMF436

$

$

Not available

11

Gravely 06308600

WASHER, LOCK SPRING 5/16 YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely T990-227R

FOAM RUBBER 3/16 X 3/4 THK WITH PSA 52.5" Lg.

$

$

Not available

13

Gravely 04451051

BRACKET, MODULE EPA FUSE/RELAY (600 Series Main Harness) *

Note: (600 Series Main Harness) *

$

$

Not available

Gravely 04385951

BRACKET, MODULE EPA FUSE/RELAY (601 Series Main Harness) *

Note: (601 Series Main Harness) *

$

$

Not available

14

Gravely T801-180C

TTHMS 1/4-20 X 3/4 YWZC

$

$

Not available

15

Gravely T803-293C

NUT, HEX FLANGE TL 1/4-20 YWZC

$

$

Not available

16

Gravely 00181143

CABLE, CHOKE (Not Shown)

Note: (Not Shown)

$52.99

$

Usually ships in 4-12 days

0
