996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 020000 & Above) Air Cleaner Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

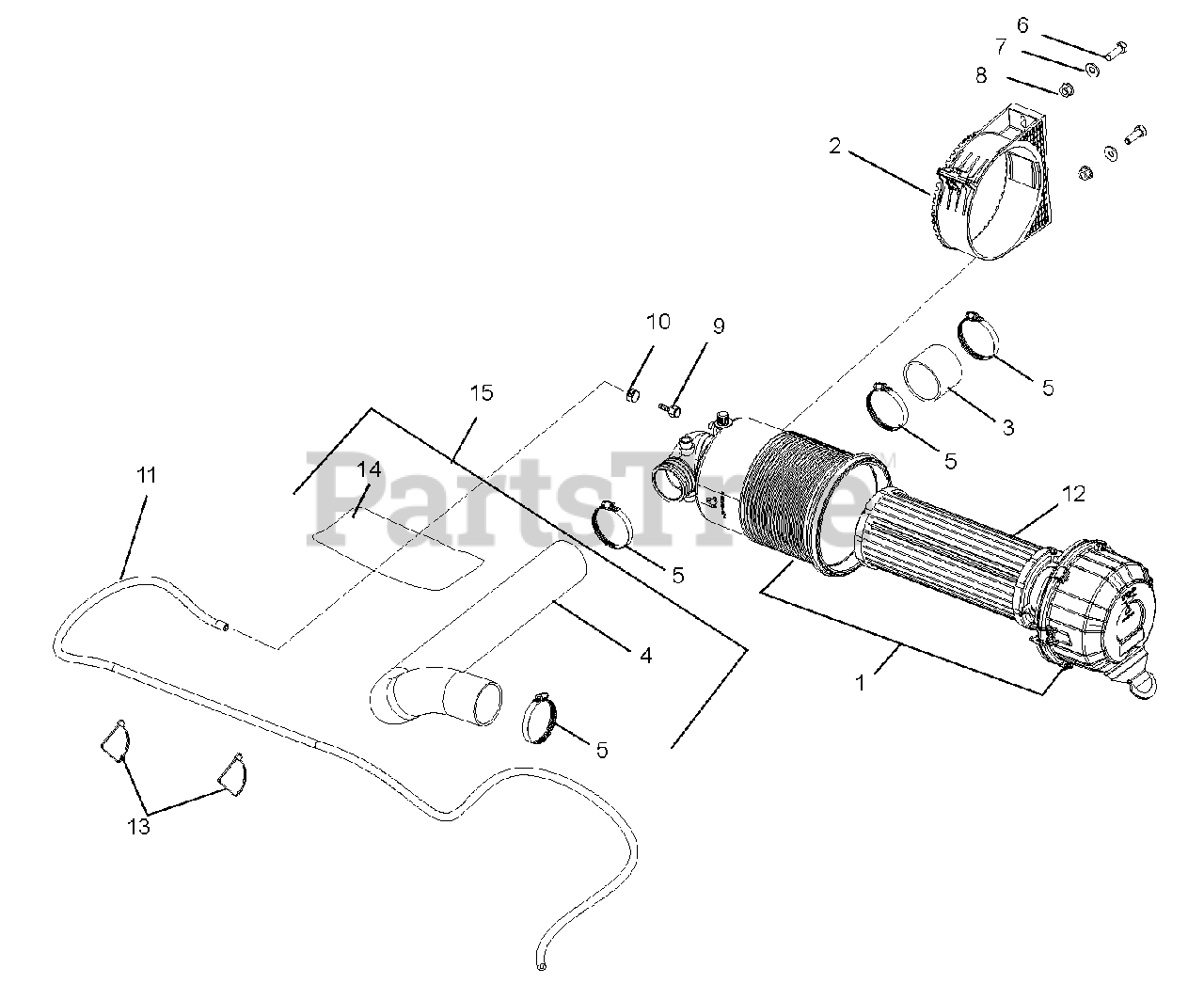

Air Cleaner Parts Diagram

  • Title

1

Gravely 04430900

ASSEMBLY, AIR CLEANER EPA

$

$

Not available

2

Gravely 04434200

CLAMP, AIR CLEANER BRACKET

$

$

Not available

3

Gravely 04236300

INTAKE AIR FILTER COUPLER

$

$

Not available

4

Gravely 04235500

INTAKE TUBE, ENGINE

$

$

Not available

5

Gravely T800-259C

CLAMP, HOSE, WRM DRV, 1.81 X 2.75

$

$

Not available

6

Gravely 05946900

BOLT, HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

7

Gravely T804-084C

WASHER, FLAT STEEL .312 X .734 X .065 YWZC

$

$

Not available

8

Gravely T803-177C

HEX NUT, LOCKING TOP FLANGE .31-18 YWZC

$

$

Not available

9

Gravely 07001705

FITTING, 1/8-27 NPT, 3/16 BARB

$

$

Not available

10

Gravely 04097700

CLAMP, FUEL LINE, 3/16"

$

$

Not available

11

Gravely 03375900

HOSE, .188 LOW-PERM 34"

$0.99

$

Usually ships in 4-12 days

0

12

Gravely T839-323C

FILTER AIR OUTER ELEMENT

$

$

Not available

13

Gravely 07500040

CABLE TIE WITH TREE

$3.99

$

In Stock, only 1 left!

0

14

Gravely 04371500

TAPE FOIL 39"

$

$

Not available

15

Gravely 21552900

ASM, INTAKE HOSE & HEAT TAPE (Includes items 4 & 14 assembled)

Note: (Includes items 4 & 14 assembled)

$

$

Not available
