996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Throttle And Brake Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

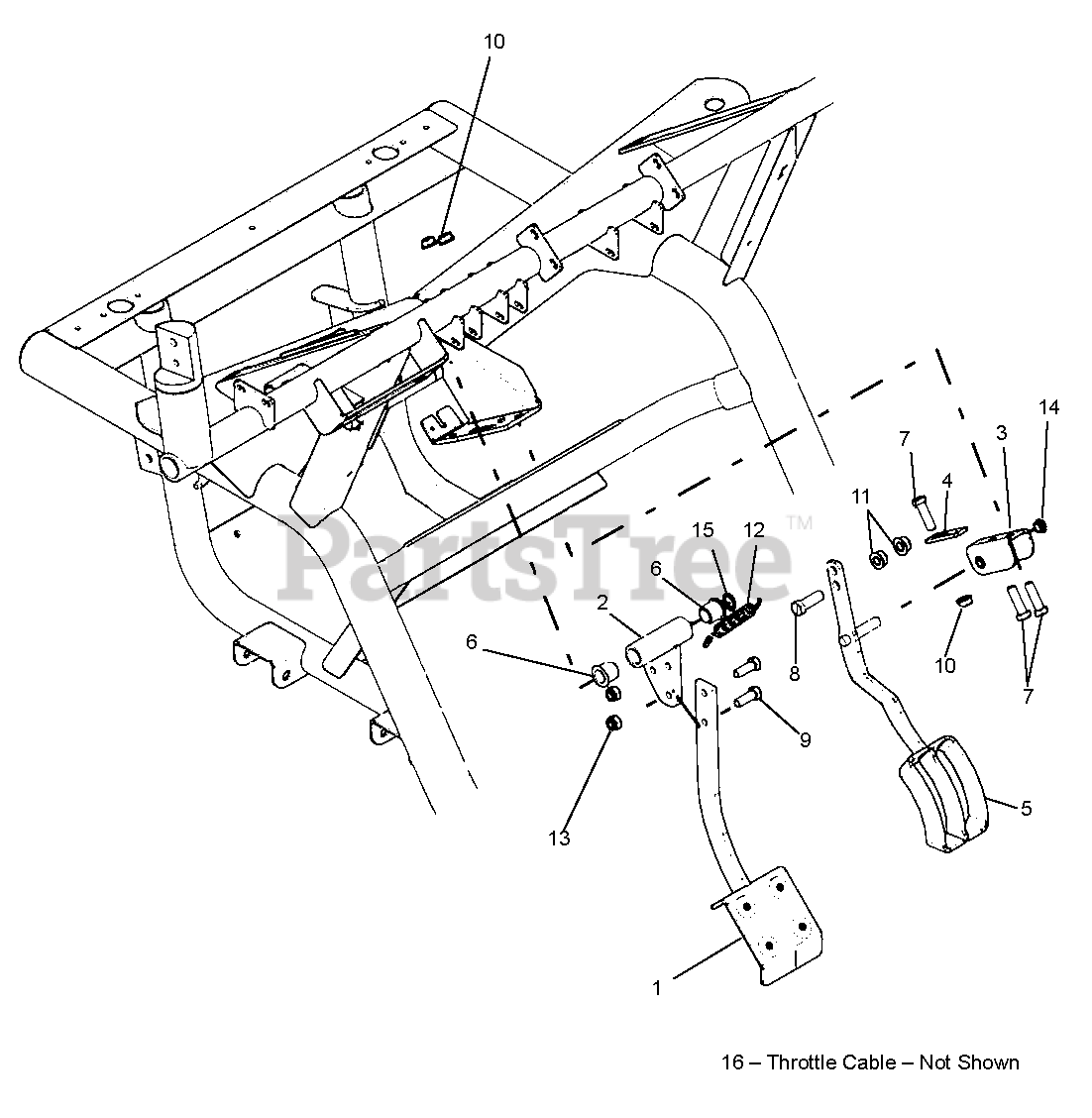

Throttle And Brake Parts Diagram

  • Title

1

Gravely 04183751

BRAKE PEDAL ASSEMBLY

$

$

Not available

2

Gravely T700-056H

BRAKE PEDAL PIVOT WELDMENT

$

$

Not available

3

Gravely T700-129D

GAS PEDAL MOUNT

$

$

Not available

4

Gravely T700-206D

GAS PEDAL ADJUSTMENT PLATE

$

$

Not available

5

Gravely 04154651

WELDMENT, GAS PEDAL

$

$

Not available

6

Gravely T817-526C

BUSHING, 3/4OD X 5/8ID X 3/4 FLG HD

$

$

Not available

7

Gravely 05947500

BOLT, HEX .31-18 X 1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

8

Gravely 05958000

BOLT, HEX 3/8-16 X 1 1/4 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05946900

BOLT, HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06543100

NUT, LOCKING TOP FLANGE .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06542000

NUT, LOCKING TOP FLANGE .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

12

Gravely T807-227C

SPRING, EXTENSION .5OD .075W 2.75LG

$

$

Not available

13

Gravely 06530200

NUT, LOCKING NYLON .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

14

Gravely T817-540C

BUSHING NYLON 3/8 ID (SNAP IN)

Note: (SNAP IN)

$

$

Not available

15

Gravely 05700140

SNAP RING, .625 X .035 EXT
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 04060200

THROTTLE CABLE (NOT SHOWN)

Note: (NOT SHOWN)

$

$

Not available
