996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Main Frame And Bumper Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

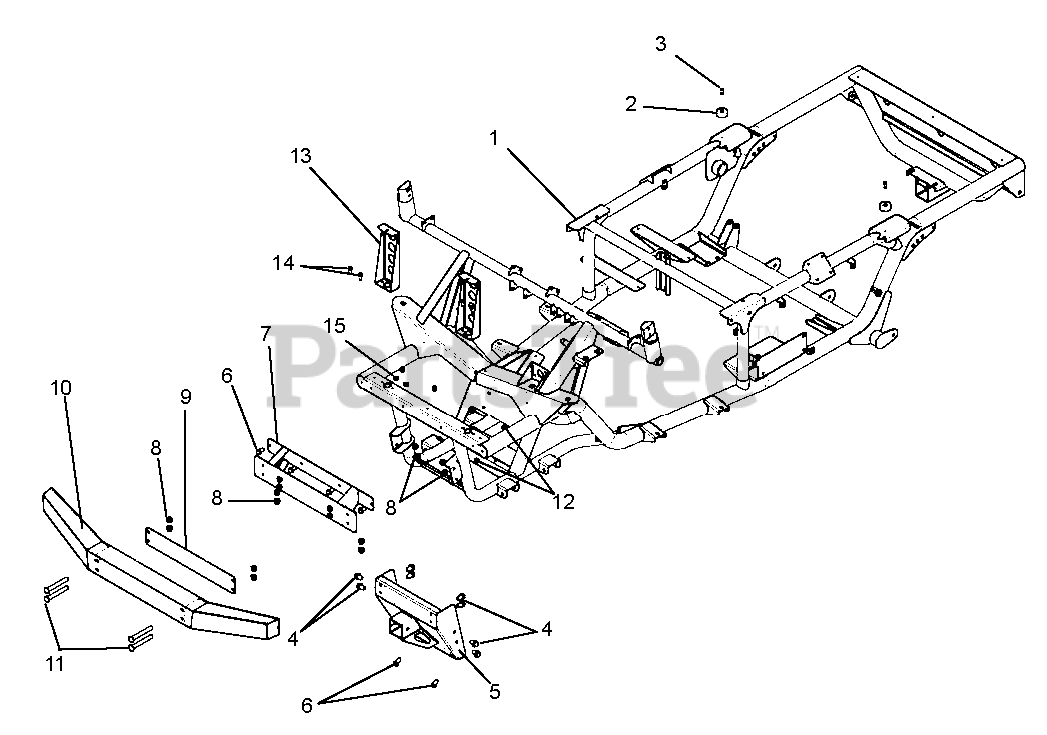

Main Frame And Bumper Parts Diagram

  • Title

1

Gravely 04232351

WELDMENT, MAINFRAME

$

$

Not available

2

Gravely 00180390

BUMPER, RUBBER .625 X 1.50 DIA

$4.49

$

Usually ships in 4-12 days

0

3

Gravely AA968100

RIVET, 3/16 X .500 POP

$

$

Not available

4

Gravely T802-185C

HFSS 3/8-16 X 3/4 LG

$

$

Not available

5

Gravely 04095951

WELDMENT, RECEIVER, FRONT

$

$

Not available

6

Gravely 07049600

BOLT, SERRATED HEX FLANGE HEAD .312-18 X .75

$2.99

$

In Stock, Qty 5

0

7

Gravely 04085551

WELDMENT, MNT, BUMPER

$

$

Not available

8

Gravely 06534900

NUT, SPIN, LOCK FLANGE .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04085453

PLATE, BACK BUMPER, RED (996123, 125, 146)

Note: (996123, 125, 146)

$

$

Not available

Gravely 04085468

PLATE, BACK BUMPER, GREY (996147)

Note: (996147)

$

$

Not available

10

Gravely 04085351

WELDMENT, BUMPER

$

$

Not available

11

Gravely 06200129

BOLT, ROUNDHEAD SQUARE NECK .38-16 X 4.0 G5 YWZC

$

$

Not available

12

Gravely 06530400

NUT, SPIN LOCK FLANGE .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 04258551

HOOD MOUNT BRACKET

$

$

Not available

14

Gravely 05946800

BOLT, HEX .25-20 X .75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06530100

NUT, LOCKING FLANGE .25-20 TWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0
