996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Front Shock Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

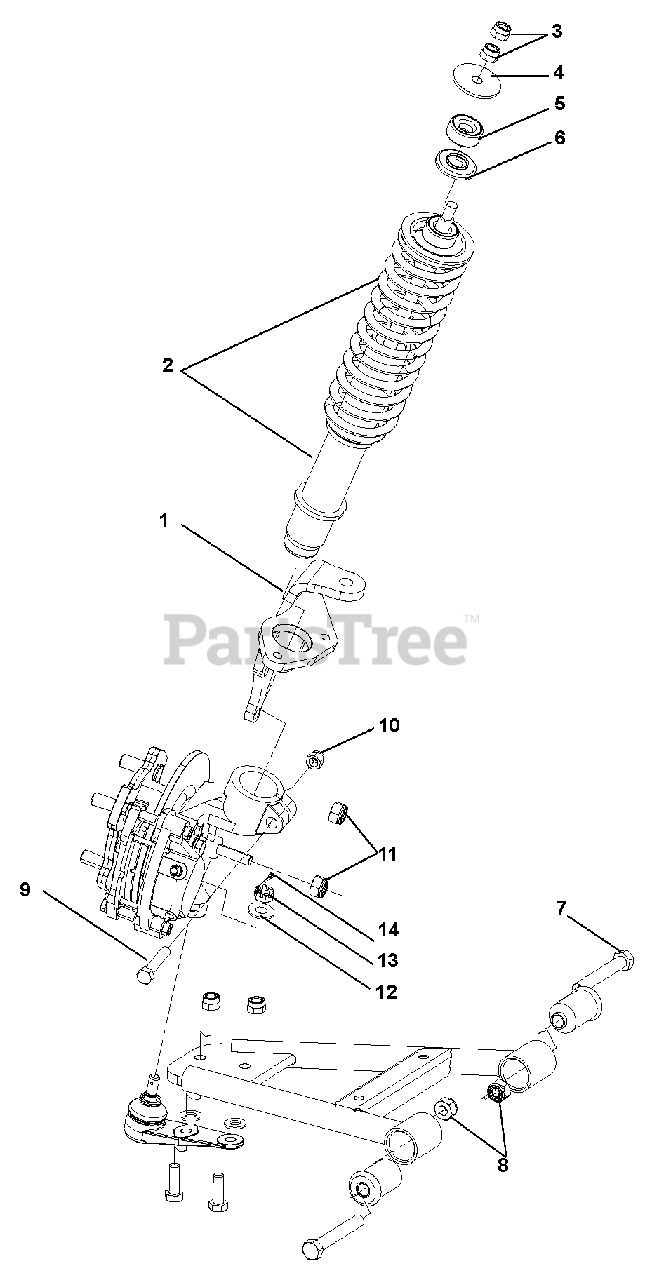

Front Shock Parts Diagram

  • Title

1

Gravely T700-055H

STEERING BRACKET RIGHT

$

$

Not available

Gravely T700-054H

STEERING BRACKET LEFT

$

$

Not available

2

Gravely T840-100C

STRUT/COIL SPRING ASSEMBLY

$

$

Not available

3

Gravely T803-344C

NUT, HEX JAM M10 X 1.25 6MTHK YLW

$

$

Not available

4

Gravely T804-220C

WASHER, FLAT 1.92OD X .413ID X .118T

$

$

Not available

5

Gravely T816-531C

GROMMET, RUBBER MOUNT

$

$

Not available

6

Gravely T840-314C

WASHER, STRUT MOUNT

$

$

Not available

7

Gravely T802-486C

HHCS M12 X 1.75 X 80 GR8.8 PLT

$

$

Not available

8

Gravely 06542500

NUT, LOCK NYLON M12 X 1.75 PLT

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05963100

BOLT, HEX .38-16 X 2.00 GR8
(Superseded to 05901810)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 06535800

NUT, LOCK NYLON .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 06542400

NUT, HEX NYLOCK M10 X 1.5 PLT

$

$

Not available

12

Gravely 06435900

WASHER, FLAT STEEL .438 X 1.00 X .083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06520001

NUT, HEX SLOTTED M10 X 1.25 YWZC

$

$

Not available

14

Gravely 06707000

PIN, COTTER .09 X 1 LONG
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0
