996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Front Lower Control Arm Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

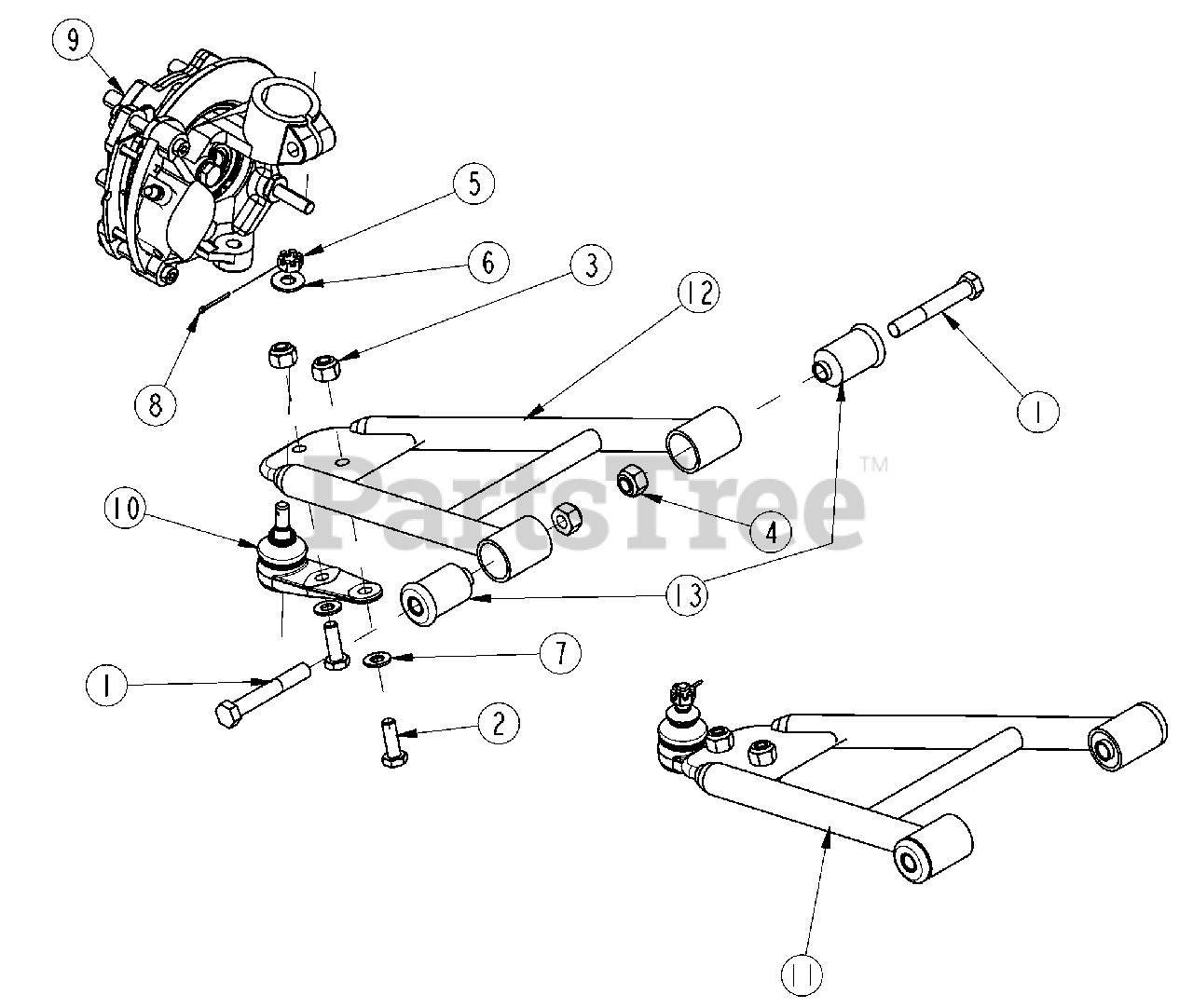

Front Lower Control Arm Parts Diagram

  • Title

1

Gravely T802-486C

HHCS M12 X 1.75 X 80 GR8.8 PLT

$

$

Not available

2

Gravely 00961307

BOLT, M10 X 1.50 X 30 HEX 8.8

$

$

Not available

3

Gravely 06542400

NUT, LOCK NYLON M10 X 1.5 PLT

$

$

Not available

4

Gravely 06542500

NUT, LOCK NYLON M12 X 1.75 PLT

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 06520001

NUT, HEX, SLOTTED M10-1.25

$

$

Not available

6

Gravely 06435900

WASHER, FLAT STEEL .438 X 1.00 X .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06449300

WASHER, FLAT STEEL M10 10.5 X 20 X 2

$

$

Not available

8

Gravely 06707000

PIN COTTER .09 X 1 LONG
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely T815-143C

RIGHT HAND DISC BRAKE ASM 172mm WITH JNT

$

$

Not available

Gravely T815-144C

LEFT HAND DISC BRAKE ASM 172mm WITH JNT

$

$

Not available

10

Gravely T840-137C

BALL JOINT BOLT ON SIR

$47.99

$

Usually ships in 4-12 days

0

11

Gravely 04067200

CONTROL ARM ASSEMBLY, LEFT HAND (Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13)

Note: (Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13)

$

$

Not available

Gravely 04067100

CONTROL ARM ASSEMBLY, RIGHT HAND (Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13)

Note: (Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13)

$

$

Not available

12

Gravely 04066051

CONTROL ARM WELDMENT, LEFT HAND

$240.99

$

Usually ships in 4-12 days

0

Gravely 04067051

CONTROL ARM WELDMENT, RIGHT HAND

$

$

Not available

13

Gravely T840-229C

BUSHING, A-ARM

$

$

Not available
