996123 (420 RX) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Front Brake System Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

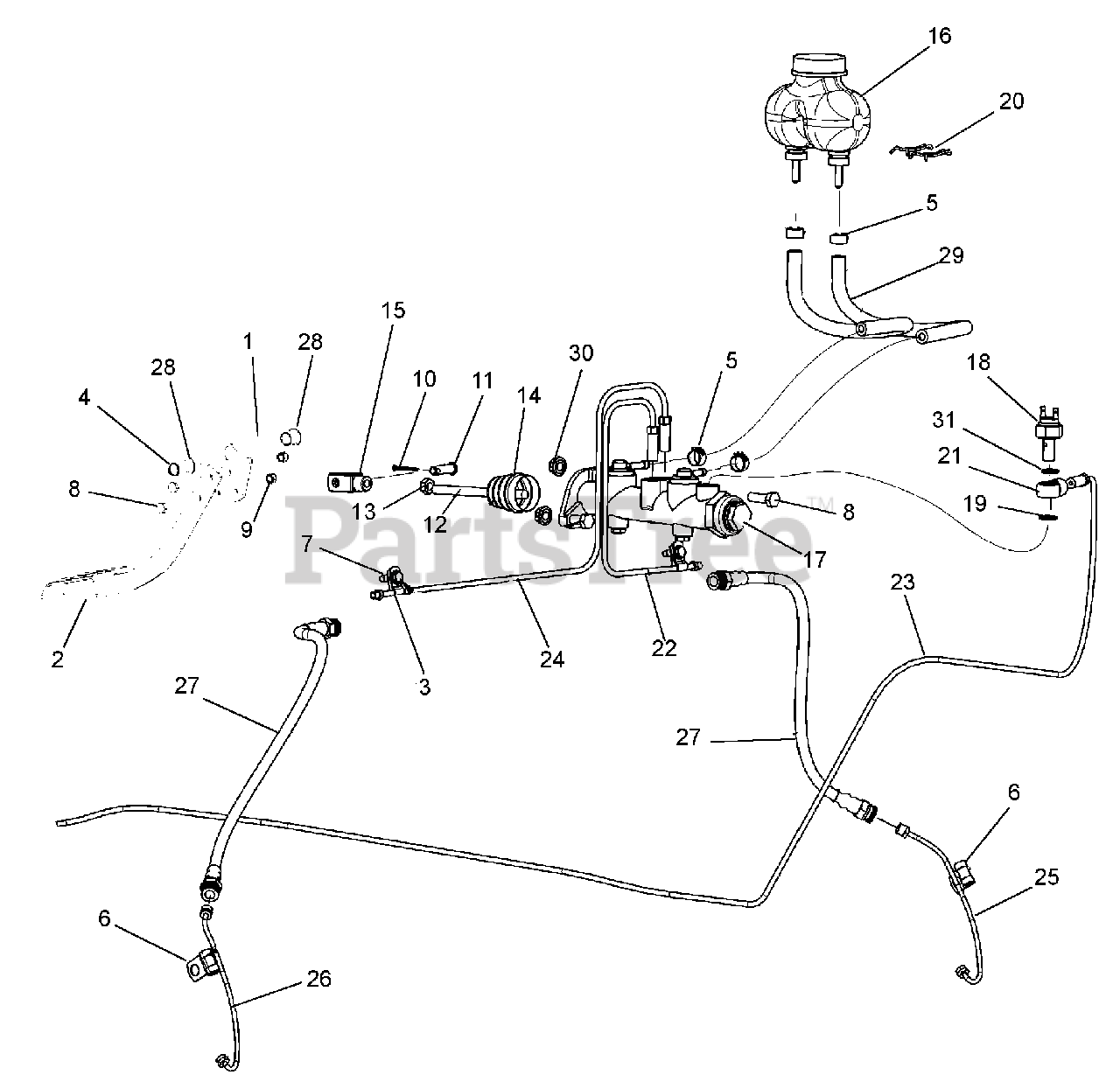

Front Brake System Parts Diagram

  • Title
1

Gravely T700-056H

BRAKE PEDAL PIVOT WELDMENT

$

$

Not available

2

Gravely 04183751

BRAKE PEDAL ASSEMBLY

$

$

Not available

3

Gravely T800-347C

WIRING/TUBE CLIP FOR 1/4 OD

$

$

Not available

4

Gravely 05700140

SNAP RING, .625 X .035 EXT
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely T800-360C

HOSE CLAMP 1/4 ID

$3.99

$

In Stock, only 1 left!

0

7

Gravely 06120224

HH DRILL SCREW 1/4 X 3/4 LG

$

$

Not available

8

Gravely 05946900

BOLT, HEX 5/16-18 X 1 GR5 YELLOW ZINC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06530200

NUT, HEX NYLOCK .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06707000

PIN, COTTER .09 X 1
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 06819500

PIN, CLEVIS 5/16 X 1

$

$

Not available

12

Gravely T815-150C

MASTER CYLINDER PUSH ROD

$

$

Not available

13

Gravely 06542700

NUT, JAM M8-1.25 TWZC

$

$

Not available

14

Gravely T815-152C

MASTER CYLINDER BOOT

$

$

Not available

15

Gravely T815-154C

MASTER CYLINDER CLEVIS

$

$

Not available

16

Gravely T815-155C

DUAL RESERVOIR BRAKE FLUID WITH CAP

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 04096300

DUAL MASTER CYLINDER

$

$

Not available

18

Gravely 04104600

BRAKE SWITCH, HIGH PRESSURE

$56.99

$

Usually ships in 4-12 days

0

19

Gravely 04096302

WASHER, COPPER 3.5 MM

$

$

Not available

20

Gravely T815-163C

MASTER CYLINDER RESERVOIR CLIP

$

$

Not available

21

Gravely T815-167C

BULK HEAD FLOW THROUGH

$

$

Not available

22

Gravely T815-173C

FRONT BRAKE LINE LEFT HAND

$

$

Not available

23

Gravely T815-175C

ST STEEL BRAKE LINE

$

$

Not available

24

Gravely T815-174C

FRONT BRAKE LINE 21 1/4 RIGHT HAND ST

$

$

Not available

25

Gravely T815-190C

FRONT BRAKE LINE END LEFT HAND STEEL

$

$

Not available

26

Gravely T815-196C

FRONT BRAKE LINE END RIGHT HAND STEEL

$24.99

$

In Stock, only 1 left!

0

27

Gravely T815-210C

BRAKE LINE RBR 17" M10 X 1 FEMALE

$

$

Not available

28

Gravely T817-526C

BUSHING 3/4 OD X 5/8 ID X 3/4 FLG HD

$

$

Not available

29

Gravely T840-104C

12.5" FUEL LINE/HYDRAULIC FLUID RESVOIR.

$

$

Not available

30

Gravely 06543100

NUT, TOP LOCK FLANGE .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

31

Gravely T815-158C

MASTER, CYLINDER CPPR WASHER 16 X 10 X 1.5 MM

$

$

Not available
