996122 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Air Cleaner Parts Diagram

Treker Utility Vehicle, 4x2, Red

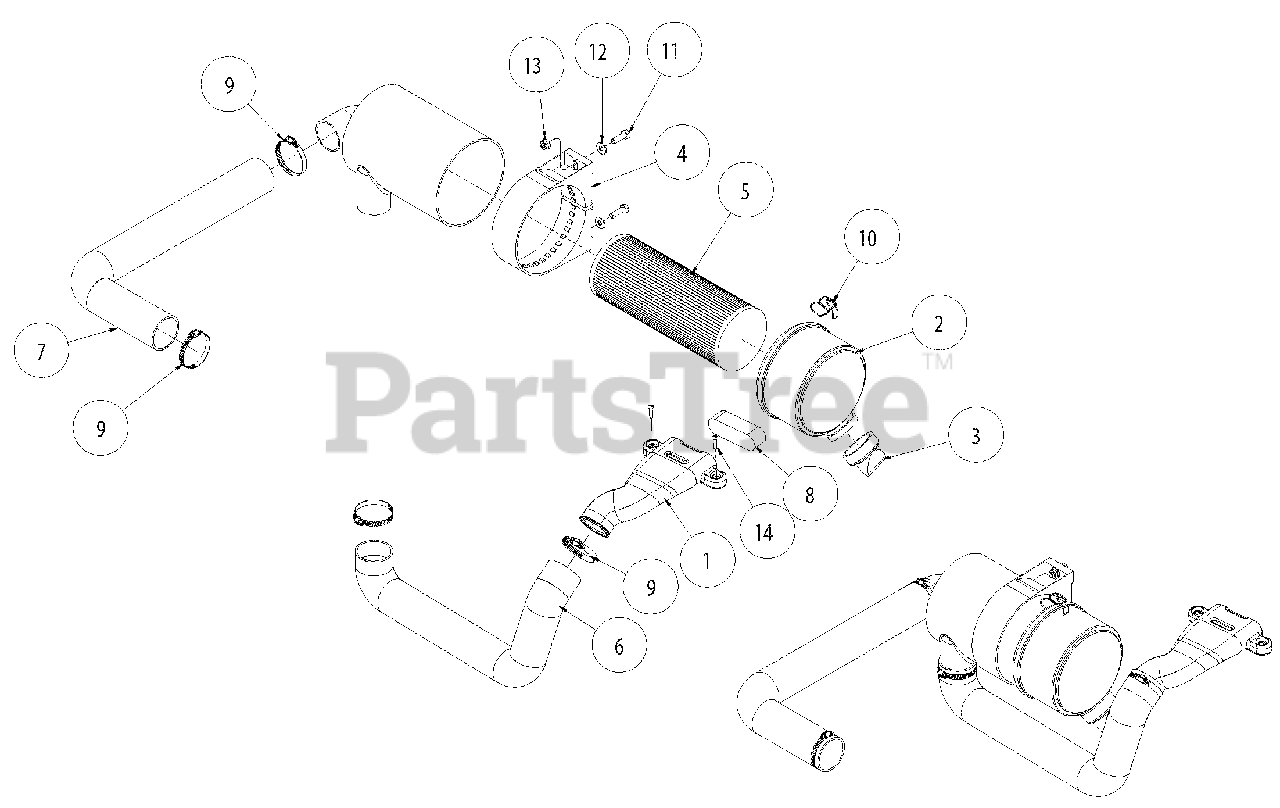

Air Cleaner Parts Diagram

  • Title

1

840-266C

SNORKEL AIR INTAKE

$

$

Not available

2

839-375C

DNLDSN COVER W/LATCHES P533761

$

$

Not available

3

839-377C

DNLDSN VACUATOR (BURP) P522958

Note: (BURP) P522958

$

$

Not available

4

839-311C

DNLDSN AIR CLNR CLAMP PPGF30

$

$

Not available

5

839-323C

FILTER AIR OUTER ELEMENT

$

$

Not available

6

Gravely 03964931

SNORKEL TUBE

$

$

Not available

7

Gravely 03964913

INTAKE TUBE

$

$

Not available

8

840-268C

FILTER, AIR INTAKE

$

$

Not available

9

800-259C

CLAMP WRM DRV#36SS (1.81-2.75)

Note: (1.81-2.75)

$

$

Not available

10

839-376C

DNLDSN LATCH P538928

$

$

Not available

11

Gravely 802-738C

HHCS 5/16-18 X 1 GR5 ZNYCR

$

$

Not available

12

804-084C

WASHER FLAT 5/16 HARD ASTMF436

$

$

Not available

13

Gravely 803-177C

NUT HEX FLG TP LK 5/16-18ZNYCR

$

$

Not available

14

801-199C

SCR SELF TAP #10 X 3/4

$

$

Not available
