996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Throttle Components Parts Diagram

Treker Utility Vehicle, 4x2, Red

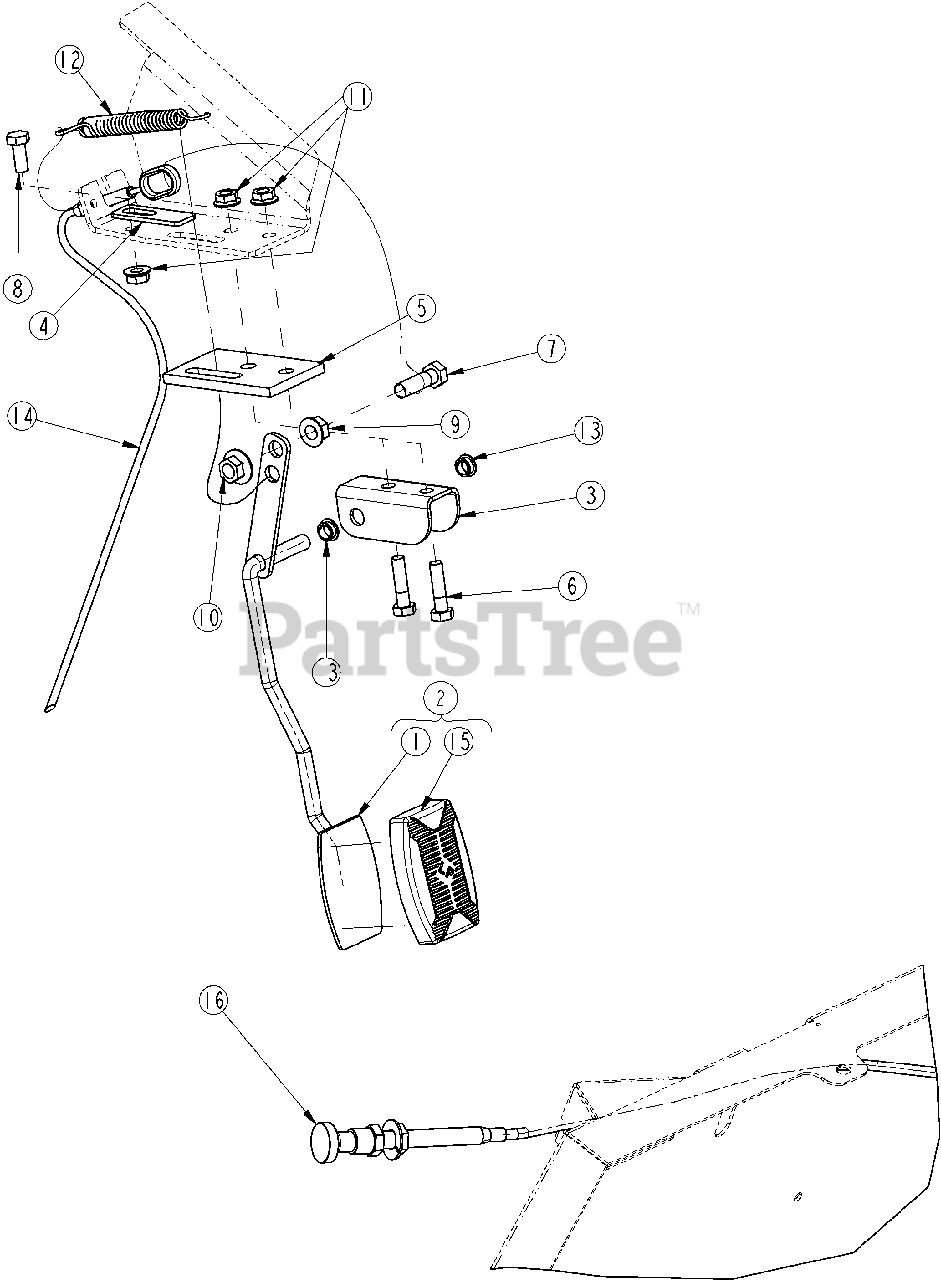

Throttle Components Parts Diagram

  • Title

1

700-127H

GAS PEDAL WELDMENT

$

$

Not available

2

700-128S

GAS PEDAL W/PAD ASSEMBLY

$

$

Not available

3

700-129D

GAS PEDAL MOUNT

$

$

Not available

4

700-206D

GAS PEDAL ADJUSTMENT PLATE

$

$

Not available

5

700-255D

BODY MOUNT SPACER .375 THICK Use as needed

$

$

Not available

5

700-254D

BODY MOUNT SPACER .25 THICK Use as needed

$

$

Not available

6

802-010C

HHCS 5/16-18X1 1/4 GR5

$

$

Not available

7

Gravely 05958000

BOLT, HEX 3/8-16 X 1 1/4 GR5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05947000

BOLT, HEX 5/16-18 X 3/4 GR5 YELLOW DIE
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06500521

NUT, SERRATED FLANGE 3/8-16 PLT

$

$

Not available

10

803-086C

NUT MAC-LOK FLG 3/8-16 GR F

$

$

Not available

12

Gravely 807-227C

SPRING EXT .5OD .075W 2.75LG

$

$

Not available

11

Gravely 803-177C

NUT HEX LOCK 5/16-18 FLG.

$

$

Not available

13

817-540C

BUSHING NYLON 3/8ID (SNAP IN)

Note: (SNAP IN)

$

$

Not available

14

840-002C

THROTTLE CABLE

$

$

Not available

15

840-134C

BRAKE/ACCELERATOR PEDAL RUBBER

$

$

Not available

16

Gravely 00181143

THROTTLE CABLE

$52.99

$

Usually ships in 4-12 days

0
