996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Front Differential and Drive Shaft Parts Diagram

Treker Utility Vehicle, 4x2, Red

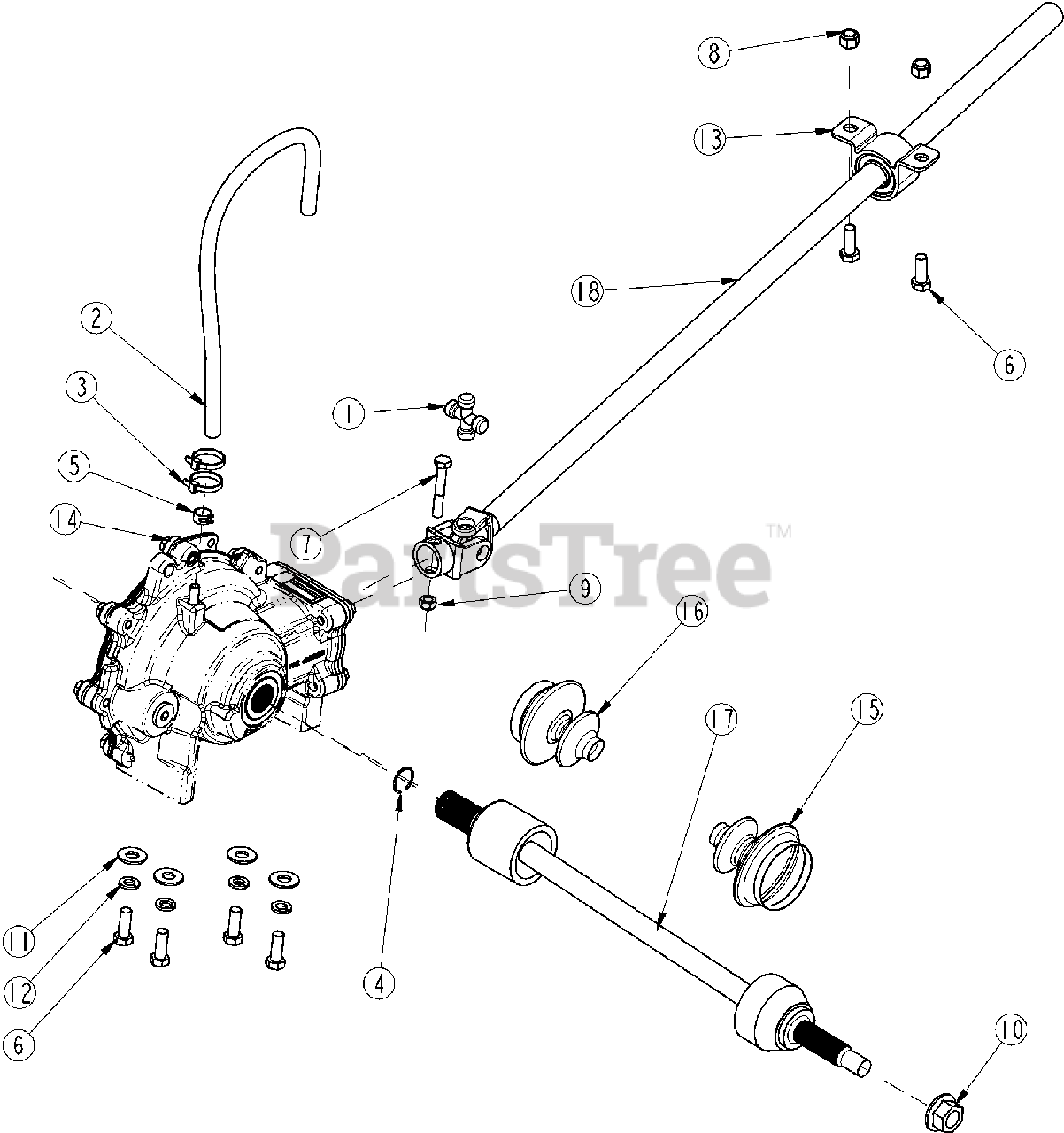

Front Differential and Drive Shaft Parts Diagram

  • Title

1

1-0170NPL

CROSS & BRG KIT

$

$

Not available

2

700-466D

VENT HOSE 17.5LG 4X4 GBOX

$

$

Not available

3

800-303C

CABLE TIE 2 DIA MIN - BLK

$

$

Not available

4

800-353C

SPRING CIR CLIP .95ODX.063WIRE

$

$

Not available

5

800-356C

CLAMP PINCH FOR .50 OD HOSE

$

$

Not available

6

Gravely 802-017C

HHCS 3/8-16X1 GR5

$

$

Not available

7

802-115C

HHCS 5/16-18X2 GR5

$

$

Not available

8

Gravely 803-078C

NUT LOCK 3/8-16 NYLON INSERT

$

$

Not available

9

Gravely 803-084C

NUT HEX NYLOCK 5/16-18 PLT

$

$

Not available

10

Gravely 803-332C

NUT HEX M16X1.5 TOP LOCK PLT

$

$

Not available

11

804-011C

WASHER FLAT 3/8 USS PLT

$

$

Not available

12

804-013C

WASHER LOCK SPRING 3/8 PLT

$

$

Not available

13

822-203C

PILLOW BLOCK BEARING TRUCK

$

$

Not available

14

Gravely 826-398C

FRONT DIFFERENTIAL W/ELE CLTCH

$950.99

$

Usually ships in 4-12 days

0

15

5048

OUTER BOOT KIT W/ 2 CLAMPS

$

$

Not available

16

Gravely 5051

INNER BOOT KIT W/2 CLAMPS

$

$

Not available

17

Gravely 826-405C

FRONT AXLE SHAFT STANDARD

$452.99

$

Usually ships in 4-12 days

0

18

Gravely 826-438C

DRIVELINE 4X4 NT/ST

$342.99

$

Usually ships in 4-12 days

0
