996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Drive Belt Driver Pulley Parts Diagram

Treker Utility Vehicle, 4x2, Red

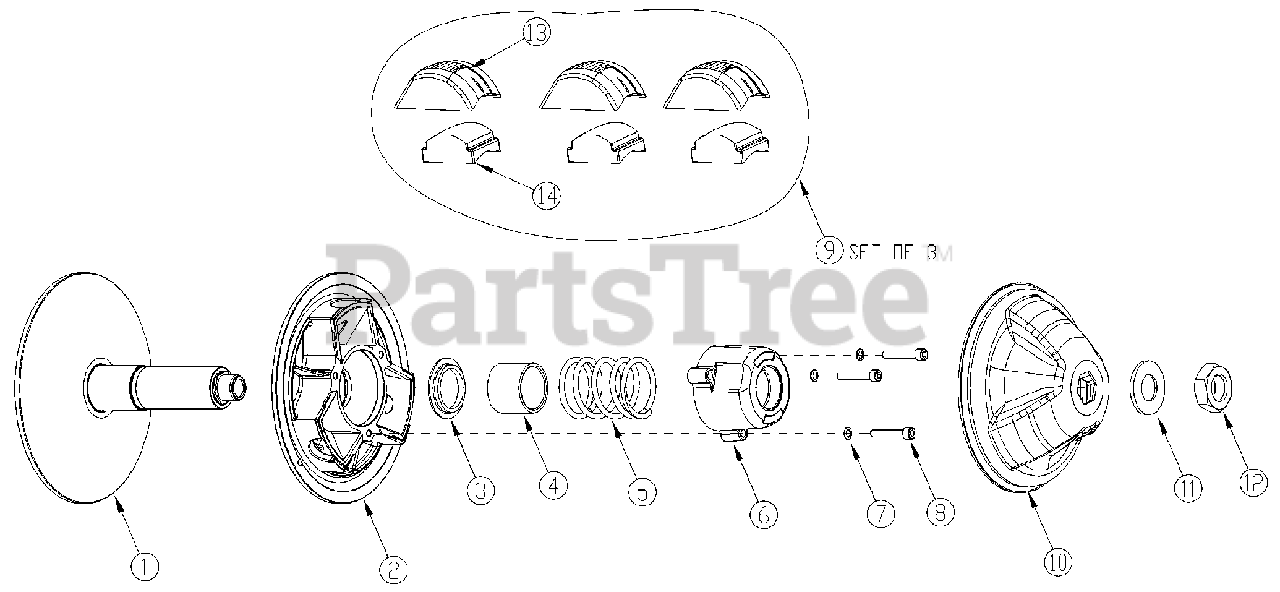

Drive Belt Driver Pulley Parts Diagram

  • Title
1

0405-0104

FIXED FLANGE

$

$

Not available

2

0410-0031

SLIDING FLANGE

$

$

Not available

3

Gravely N/A

SPRING SUPPORT

$

$

Currently unavailable

4

0440-2032

STROKE LIMITER

$

$

Not available

5

Gravely N/A

SPRING

$

$

Currently unavailable

6

0440-0005

SPRING COVER

$

$

Not available

7

0080-0167

LOCK WASHER

$

$

Not available

8

0080-0021

SOCKET HEAD CAP SCREW

$

$

Not available

9

0130-0165

BLOCK ASSEMBLY

$

$

Not available

10

0115-0050

CAP

$

$

Not available

11

Gravely 06400534

WASHER, FLAT #10 ZP SAE

$

$

Not available

12

803-149C

NUT HEX 7/8-14 PLT

$

$

Not available

13

Gravely N/A

BLOCK

$

$

Currently unavailable

14

Gravely N/A

WEIGHT

$

$

Currently unavailable
