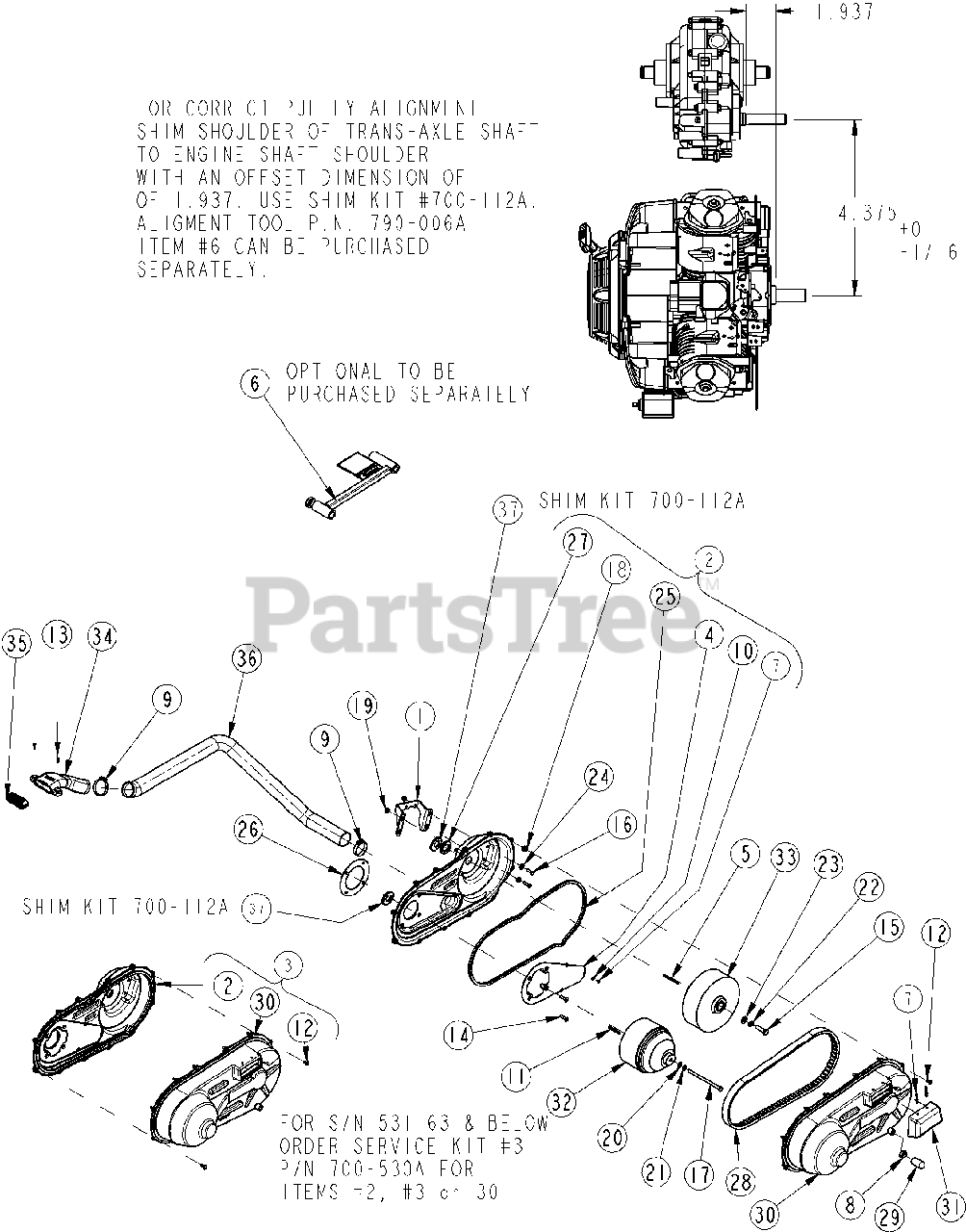

996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Drive Belt Components Parts Diagram

Treker Utility Vehicle, 4x2, Red

Drive Belt Components Parts Diagram

  • Title

1

700-286D

BRACKET, CVT COVER TO TRANS.

$

$

Not available

2

700-503S

ASSEMBLY, CVT INNER COVER

$

$

Not available

3

700-530A

KIT, CVT SERVICE S/N 531163 & Below Redesigned

$

$

Not available

4

700-591D

COVER, CVT INLET DUCT

$

$

Not available

5

710-097D

KEY 3/16 X 3

$

$

Not available

6

790-006A

TREKER ENGINE/TRANS ALIGN TOOL Optional W/ Manual

$

$

Not available

7

800-219C

RIVET POP 3/16 .126-.250

$

$

Not available

8

800-235C

SPRING CLAMP 1" OD HOSE

$

$

Not available

9

800-259C

CLAMP WRM DRV#36SS (1.81-2.75)

Note: (1.81-2.75)

$

$

Not available

10

800-271C

RIVET POP WASHER 3/16

$

$

Not available

11

800-350C

KEY .187 X .247 X 2.5 LG

$

$

Not available

12

801-180C

TPHMS Y 1/4-20X3/4 YELLOW DIE

$

$

Not available

13

801-199C

SCR SELF TAP #10 X 3/4

$

$

Not available

14

801-215C

HSFHCS 5/16-24 X 1 1/4, BLK Apply Loctite

$

$

Not available

15

Gravely 05900502

HHCS 1/2-20X2 GR5

$

$

Not available

16

Gravely 05946900

BOLT, HEX 5/16-18 X 1 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

17

802-823C

HHCS 3/8-24X6 1/2 GR5 PLT

$

$

Not available

18

803-131C

INSERT, 1/4-20 ARS4-420-280

$

$

Not available

19

Gravely 06543100

NUT, TOP LOCK FLANGE .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06400216

WASHER FLAT 3/8 SAE PLT

$

$

Not available

21

Gravely 06300019

WASHER, LOCK 3/8

$

$

Not available

22

Gravely 06300020

WASHER, LOCK 1/2

$

$

Not available

23

Gravely 06400217

WASHER FLAT 1/2 SAE
(Superseded to 06400416)

$3.49

$

Usually ships in 4-12 days

0

24

804-135C

WASHER FLAT 5/16 NEOPRENE PLT

$

$

Not available

25

Gravely 816-469C

SEAL, MAIN TRUCK CVT HOUSING

$6.99

$

Usually ships in 4-12 days

0

26

816-470C

SEAL, CVT TO ENGINE

$

$

Not available

27

816-471C

SEAL, CVT TO TRANSAXLE

$

$

Not available

28

816-546C

BELT, CVT -LP3

$

$

Not available

29

817-621C

CAP, DRAIN 7/8 OD PORT

$

$

Not available

30

Gravely 817-711C

ENCLOSURE, CVT OUTER

$

$

Not available

31

817-712C

OUTLET DIVERTER, CVT

$

$

Not available

32

826-523C

DRIVER, POWERBLOC - LP3

$

$

Not available

33

Gravely 826-525C

DRIVEN, CVTECH POWERBLOC-LP3
(Superseded to 04878500)

$581.99

$

Usually ships in 4-12 days

0

34

840-266C

SNORKEL AIR INTAKE

$

$

Not available

35

840-268C

FILTER, AIR INTAKE

$

$

Not available

36

840-323C

HOSE, CVT AIR INTAKE

$

$

Not available

37

700-112A

CVT SHIM KIT

$

$

Not available
