996120 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Air Cleaner Parts Diagram

Treker Utility Vehicle, 4x2, Red

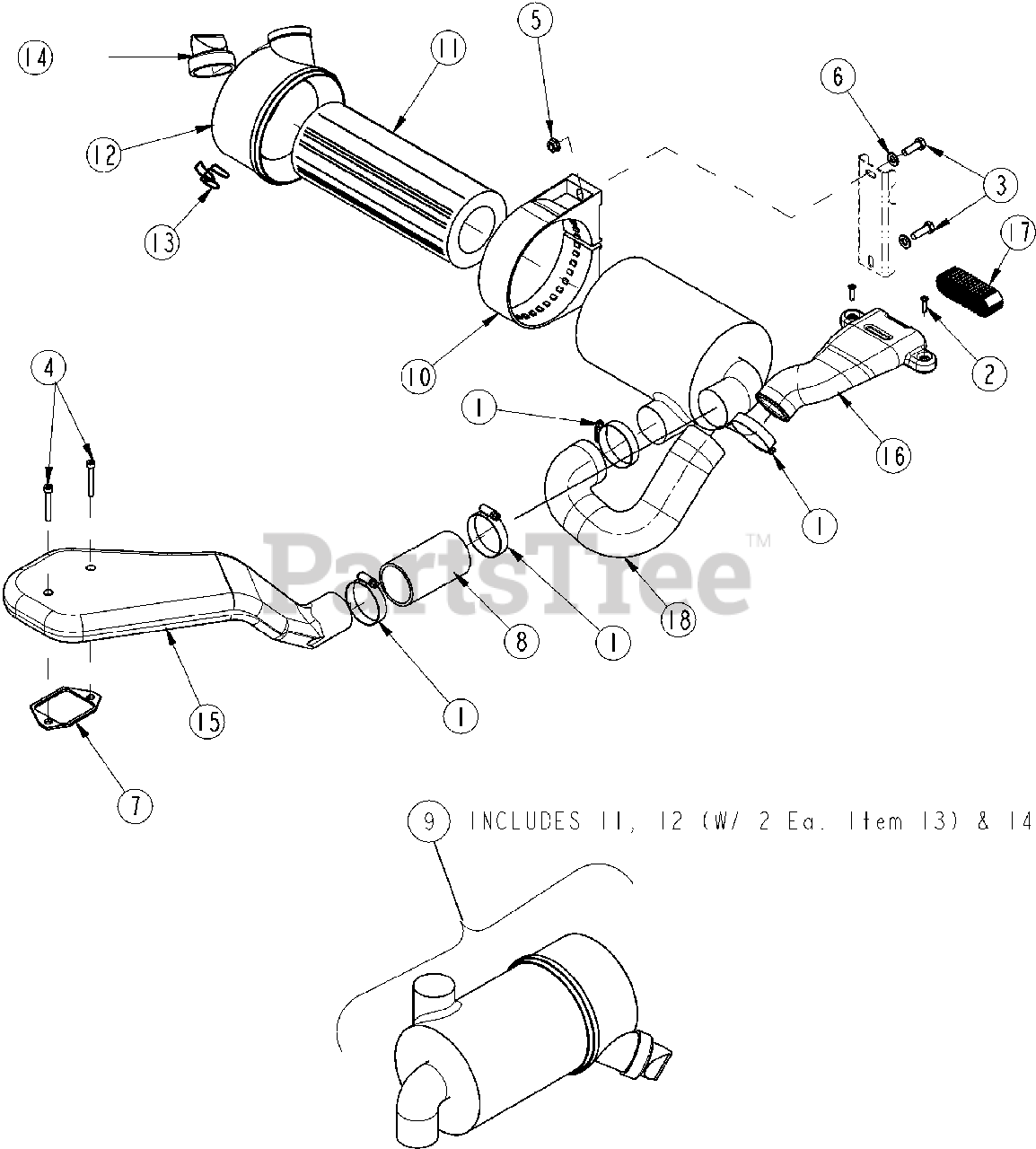

Air Cleaner Parts Diagram

  • Title

1

800-259C

CLAMP WRM DRV#36SS (1.81-2.75)

Note: (1.81-2.75)

$

$

Not available

2

801-199C

SCR SELF TAP #10 X 3/4

$

$

Not available

3

Gravely 05946900

BOLT, HEX 5/16-18 X 1 GR5 ZNYCR
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

4

802-752C

HSHCS M6X1X45 GR8.8

$

$

Not available

5

Gravely 06543100

NUT, HEX TOP LOCK FLANGE 5/16-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06400536

WASHER, FLAT 5/16 HARD ASTMF44712

$

$

Not available

7

816-421C

GASKET-ENGINE AIR INTAKE TRUCK

$

$

Not available

8

816-522C

HOSE, 2" ID X 4" LONG

$

$

Not available

9

839-309C

DNLDSN AC ASSY W/FLTR G057514

$

$

Not available

10

839-311C

DNLDSN AIR CLNR CLAMP PPGF30

$

$

Not available

11

839-323C

FILTER AIR OUTER ELEMENT

$

$

Not available

12

839-375C

DNLDSN COVER W/LATCHES P533761

$

$

Not available

13

839-376C

DNLDSN LATCH P538928

$

$

Not available

14

839-377C

DNLDSN VACUATOR (BURP) P522958

Note: (BURP) P522958

$

$

Not available

15

840-072C

AIR INTAKE PLASTIC ST TRUCK

$

$

Not available

16

840-266C

SNORKEL AIR INTAKE

$

$

Not available

17

840-268C

FILTER, AIR INTAKE

$

$

Not available

18

840-298C

HOSE AIR INTAKE

$

$

Not available
