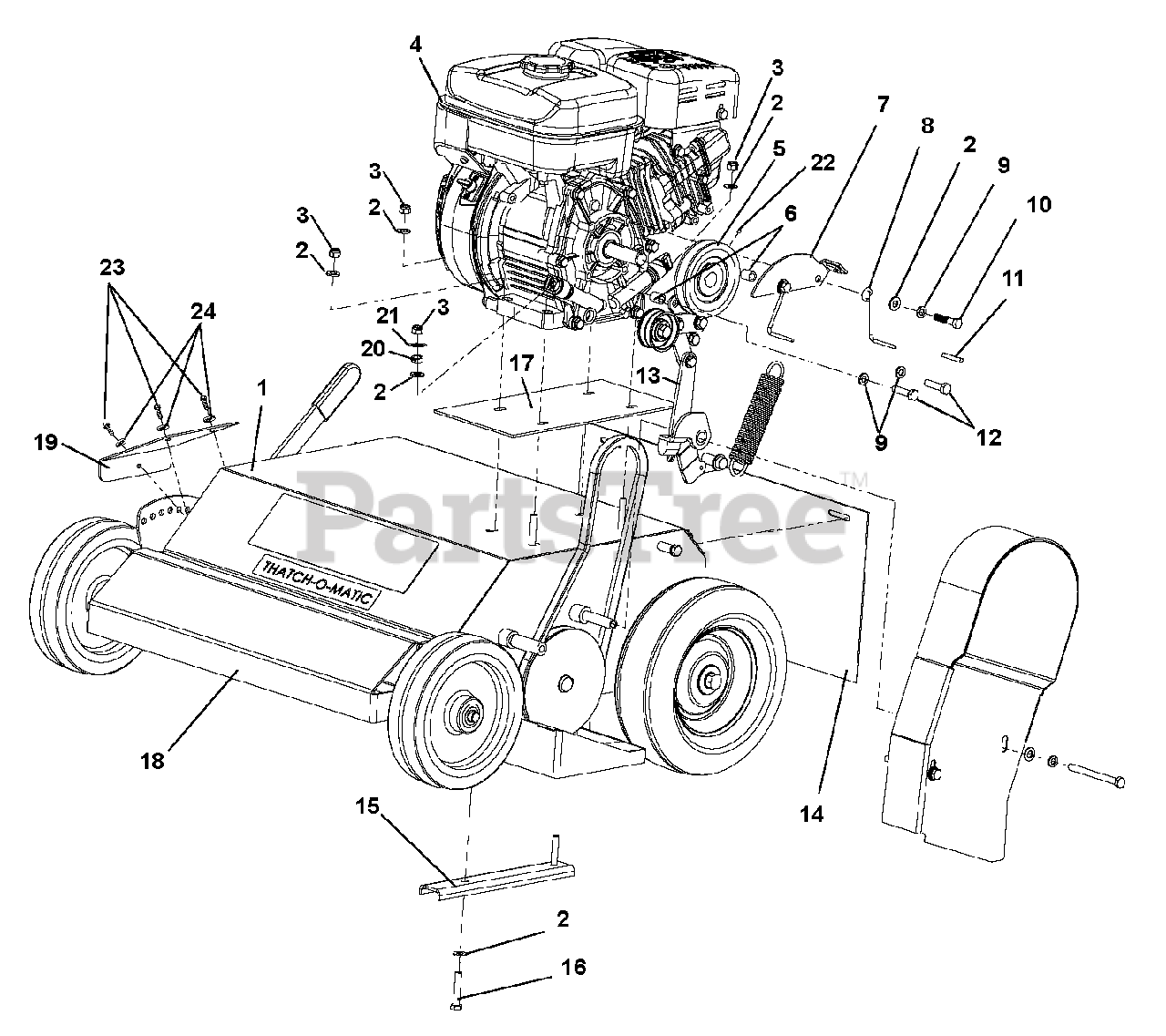

995863 - Gravely Thatch-O-Matic, Flail (SN: 000101 & Above) Frame And Engine Parts Diagram

Thatch-O-Matic, Flail

Frame And Engine Parts Diagram

  • Title
1

Gravely 04286200

Housing Weldment w/ Decals

$205.99

$

Usually ships in 4-12 days

0

2

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06530200

Nut, Locking-Nylon 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 08200429

Engine, Subaru 6HP SP170 (Carb)

Note: (Carb)

$

$

Not available

5

Gravely P77-62-A

Pulley, 2275-3/4" Bore (995862)(Used with spring tine reel)

Note: (995862)(Used with spring tine reel)

$35.99

$

Usually ships in 4-12 days

0

Gravely P89-133-B

Pulley-Sheave, AK-39 Bore (995863 Thatch-O-Matic with Flail Assembly)(Used with flail reel)

Note: (995863 Thatch-O-Matic with Flail Assembly)(Used with flail reel)

$

$

Not available

6

$16.99

$

Usually ships in 4-12 days

0

7

Gravely P88-41-A

Weld-Bracket

$

$

Not available

8

Gravely P70-71-A

Belt Finger

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

Gravely P60-516-24

Bolt, Hex Head 5/16-24 x 1.5
(Superseded to 05963500)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely P68-137-A

3/16 Key 1 1/4"

$3.99

$

Usually ships in 4-12 days

0

12

Gravely P60-516-20

Bolt HH 5/16-24 x 1.25
(Superseded to 05901423)

$

$

Not available

13

Gravely 04348400

Clutch Pulley Assembly

$219.99

$

Usually ships in 4-12 days

0

14

Gravely P89-143-C

Drag Strip

$58.99

$

Usually ships in 4-12 days

0

15

Gravely P90-13

Stiffener

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 05957400

Bolt, Hex .31-18 x 1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

17

Gravely P90-12

Mounting Plate

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 04228868

Front Bumper Welment
(Superseded to 04228851)

$75.99

$

Usually ships in 4-12 days

0

19

Gravely 04258353

Guard, Right Hand (995863 Thatch-O-Matic with Flail Assembly)

Note: (995863 Thatch-O-Matic with Flail Assembly)

$31.99

$

Usually ships in 4-12 days

0

20

Gravely 06500011

Nut, Locking-Center-Jam .31-18
(Superseded to 06500913)

$0.99

$

In Stock, Qty 5

0

21

Gravely 06310500

Washer, Lock Internal .31

$0.99

$

In Stock, only 3 left!

0

22

Gravely 06005500

Screw, Set .31-18 x .38 Socket Head

$2.99

$

In Stock, Qty 15

0

23

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0
