995862 - Gravely Thatch-O-Matic, Tine (SN: 000101 & Above) Upper Handle Assembly Parts Diagram

Thatch-O-Matic, Tine

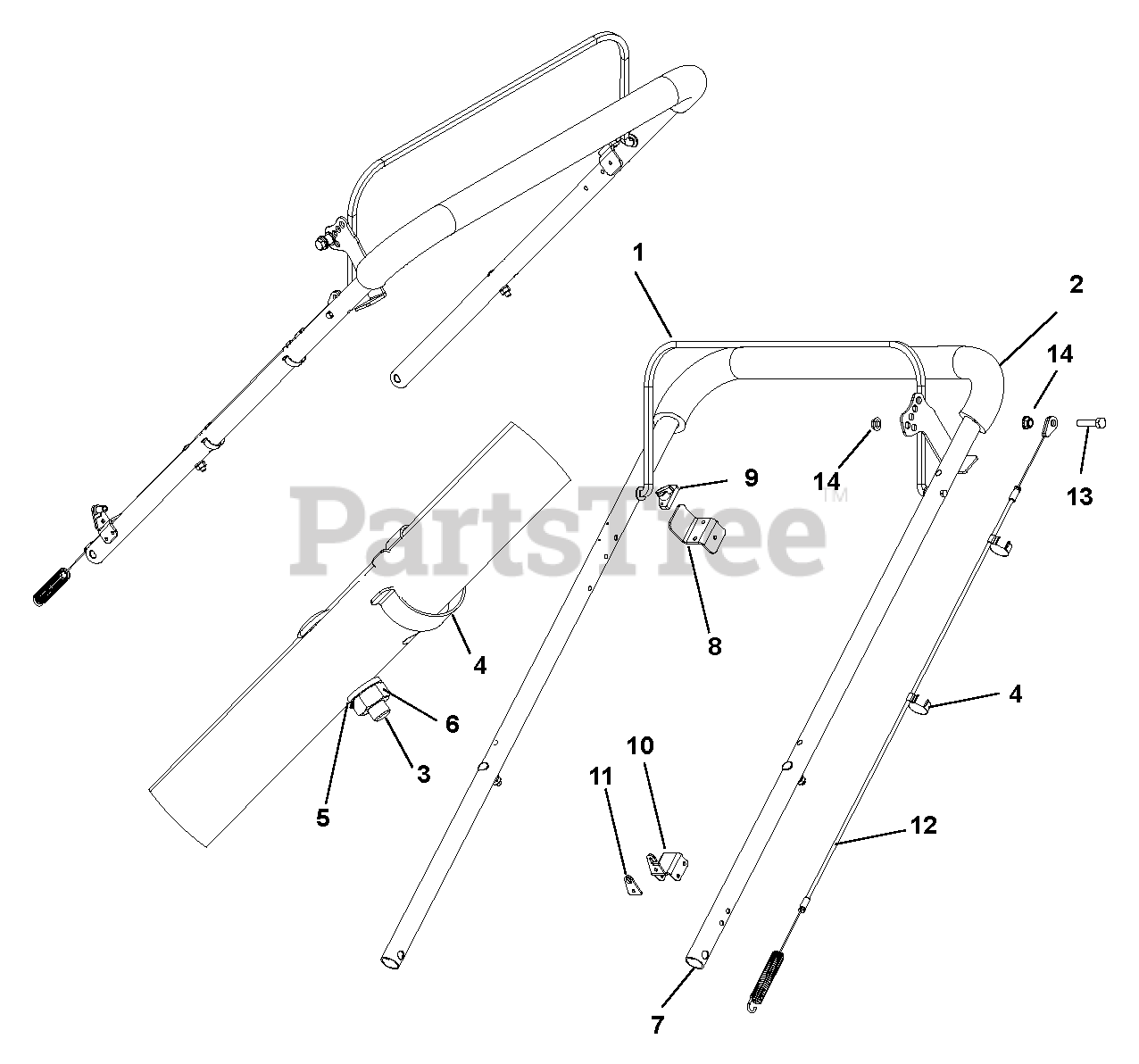

Upper Handle Assembly Parts Diagram

  • Title

1

Gravely P07-70-A

PR-Safety Bail Assembly

$

$

Not available

2

Gravely P360108

Sleeve Handle
(Superseded to 04290700)

$35.99

$

Usually ships in 4-12 days

0

3

Gravely P69-416-24

Bolt, Cont Head 1/4-20 x 1.50

$5.99

$

Usually ships in 4-12 days

0

4

Gravely P80-276-A

Snap Mount

$

$

Not available

5

Gravely 06308400

Washer, Lock .250
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06533200

Hex Nut, 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

7

Gravely 04156168

Handle, Dethatcher
(Superseded to 04156151)

$

$

Not available

8

Gravely 04238068

Switch Bracket
(Superseded to 04238051)

$19.99

$

Usually ships in 4-12 days

0

9

Gravely 04238900

Switch Assembly

$

$

Not available

10

Gravely 04259768

Cable Mount
(Superseded to 04259751)

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 04259868

Cable Lock
(Superseded to 04259851)

$19.99

$

Usually ships in 4-12 days

0

12

Gravely 04248200

Cable, Clutch, Dethatcher

$78.99

$

In Stock, only 1 left!

0

13

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

14

Gravely 06530400

Nut, Spin Lock, Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 04275600

Wire, Harness Dethatcher (Not shown)

Note: (Not shown)

$15.99

$

Usually ships in 4-12 days

0
