995862 - Gravely Thatch-O-Matic, Tine (SN: 000101 & Above) Clutch Pull Assembly Parts Diagram

Thatch-O-Matic, Tine

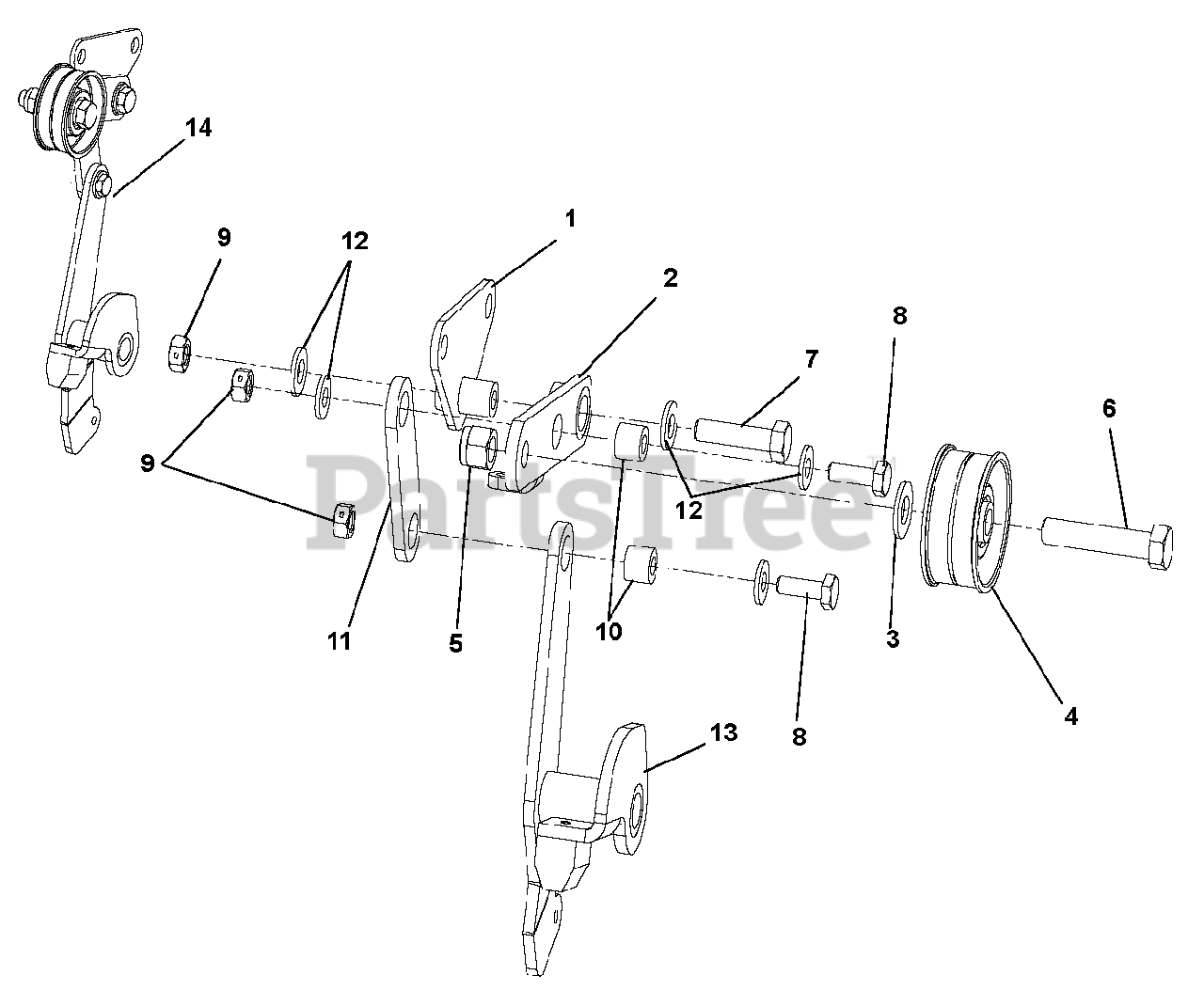

Clutch Pull Assembly Parts Diagram

  • Title

1

Gravely 04272400

Pivot Plate Weldment

$30.99

$

In Stock, only 1 left!

0

2

Gravely 04272300

Idler Arm Weldment

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely P360910

Clutch Pulley 3/4

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 06535800

Locknut, Nylock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 05958500

Bolt, Hex .38-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

8

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 04221300

Spacer

$25.99

$

Usually ships in 4-12 days

0

11

Gravely 04221800

Link, Dethatcher

$

$

Not available

12

Gravely 06437300

Washer, Flat .250 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 04348500

Brake Lever W/Pad

$58.99

$

Usually ships in 4-12 days

0

14

Gravely 04348400

Clutch Pulley Assembly

$219.99

$

Usually ships in 4-12 days

0
