995430 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 002500 & Above) Scoop Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

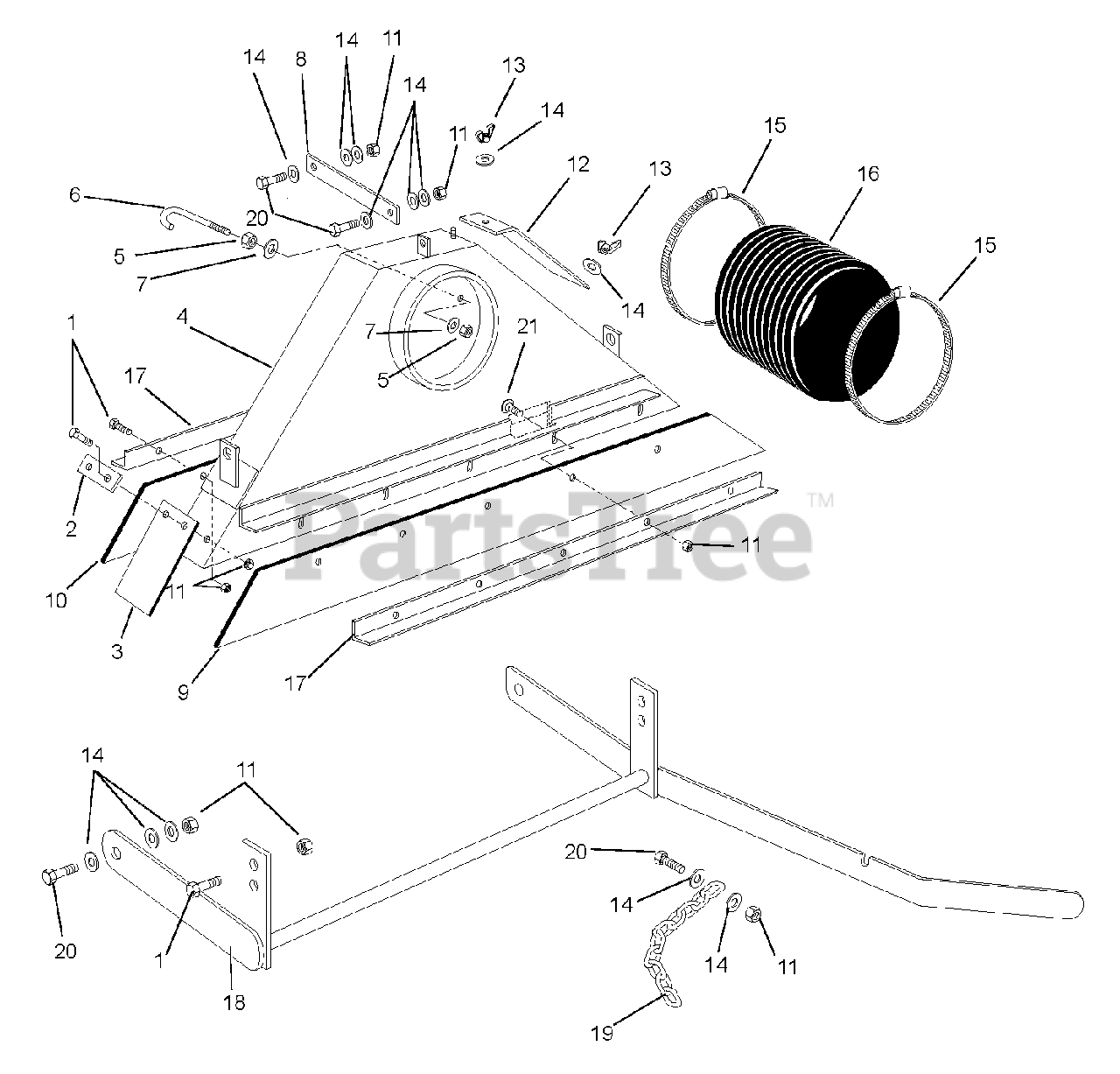

Scoop Parts Diagram

  • Title

1

Gravely 05900801

Cap Screw, Hex Head .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 02083851

End, Bolting Strip

$

$

Not available

3

Gravely 02085300

End Cap, Flex Skirt

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 02076053

Weldment, Scoop

$

$

Not available

5

Gravely 06500612

Nut, Hex .50

$

$

Not available

6

Gravely 05900613

J-Bolt

$

$

Not available

7

Gravely 06400416

Washer, Flat .50

$

$

Not available

8

Gravely 02083251

Brace, Scoop Stabilizer

$

$

Not available

9

Gravely 02952300

Flex Skirt, Front

$116.99

$

Usually ships in 4-12 days

0

10

Gravely 02085400

Flex Skirt, Rear

$

$

Not available

11

Gravely 06500517

Nut, Nylock .38-16

$

$

Not available

12

Gravely 02077551

Side Cover, Scoop

$45.99

$

In Stock, only 1 left!

0

13

Gravely 06500418

Wing Nut, .38-16

$

$

Not available

14

Gravely 06400417

Washer, Flat .38

$

$

Not available

15

Gravely 02085700

Clamp, Worm Drive 13 Inch

$

$

Not available

16

Gravely 02078700

Hose, Flex 12 Inch

$

$

Not available

17

Gravely 02077651

Retainer Strip

$

$

Not available

18

Gravely 02077751

Weldment, Lift

$

$

Not available

19

Gravely 02084900

Support Chain 12 Link 1/4"

$

$

Not available

20

Gravely 05900623

Cap Screw, Hex Head .38-16 x 1.25

$

$

Not available

21

Gravely 06200031

Bolt, Carriage .38-16 x 1.00

$

$

Not available
