995430 (Pro-Vac 1060) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 002500 & Above) Engine and Drive Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

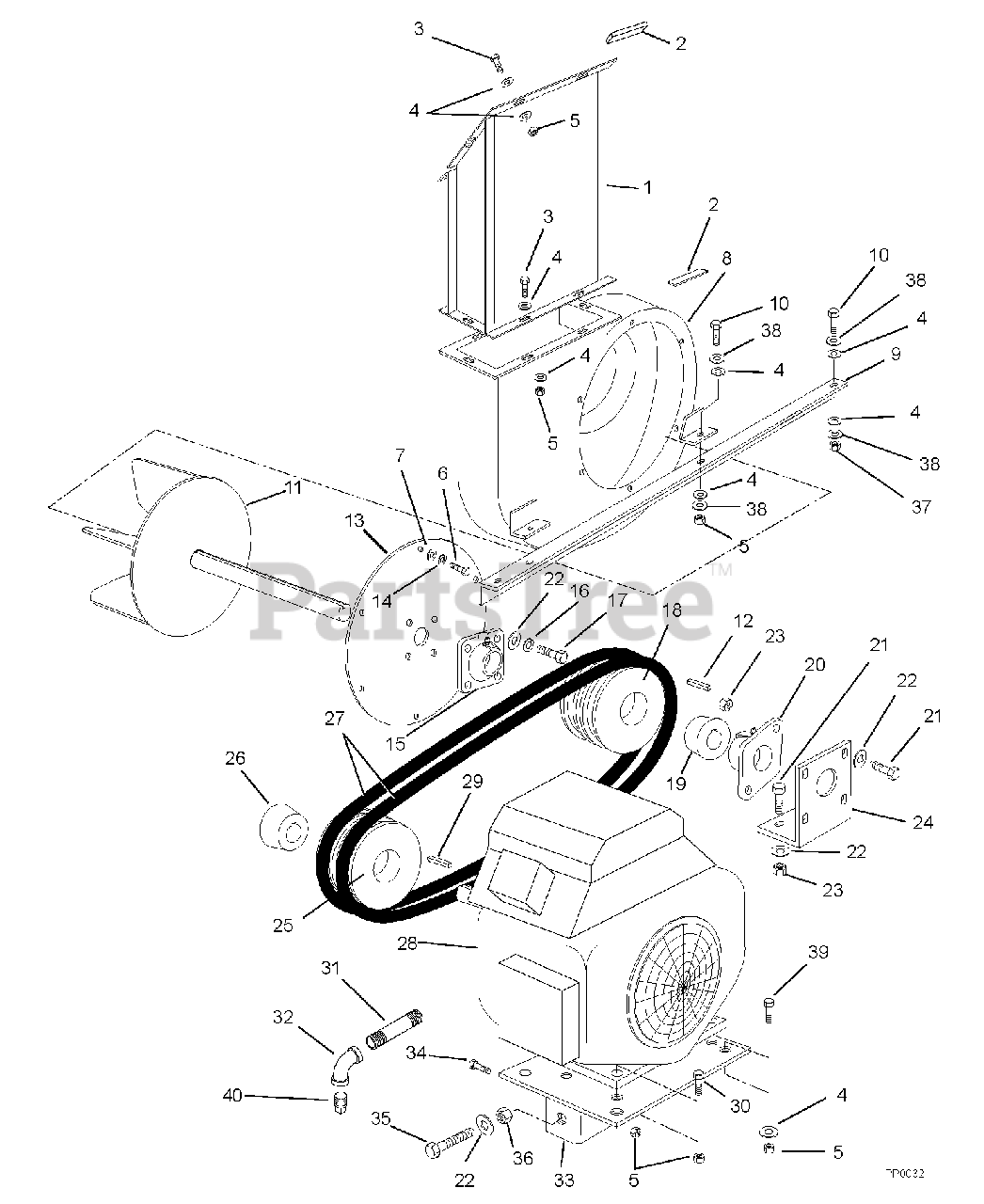

Engine and Drive Parts Diagram

  • Title

1

Gravely 02083353

Weldment, Discharge Chute

$258.99

$

Usually ships in 4-12 days

0

2

Gravely 02071900

Gasket Material 1.25 x .188
(Superseded to 00915900)

$

$

Not available

3

Gravely 05901107

Bolt, Hex .38-16 x .75

$

$

Not available

4

Gravely 06400417

Washer, Flat .38

$

$

Not available

5

Gravely 06500517

Nut, Hex Nylock .38-16

$

$

Not available

6

Gravely 05900620

Cap Screw, Hex Head .312-16 x .75

$

$

Not available

7

Gravely 06400509

Washer, Flat .312
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 02074553

Weldment, Blower

$

$

Not available

9

Gravely 02078651

Support Beam, Blower

$

$

Not available

10

Gravely 05900801

Cap Screw, Hex Head .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 02075600

Fan, Impeller

$782.99

$

Usually ships in 4-12 days

0

12

Gravely 06605600

Key, Straight .38 x .38 x 2.0

$

$

Not available

13

Gravely 02074353

Weldment, Fan Cover

$

$

Not available

14

Gravely 06300029

Washer, Locking .312

$

$

Not available

15

Gravely 05400235

Bearing, Four-Bolt Flange

$113.99

$

Usually ships in 4-12 days

0

16

Gravely 06300031

Washer, Lock .438

$

$

Not available

17

Gravely 05901022

Cap Screw, Hex Head .44-14 x 1.25 Grade 8

$

$

Not available

18

Gravely 07300310

Pulley, V 2G 3V 6.5 Taper Lock

$162.99

$

In Stock, only 1 left!

0

19

Gravely 05500439

Bushing, Drive Sheave

$

$

Not available

20

Gravely 05400234

Bearing, Two-Bolt Flange

$96.99

$

Usually ships in 4-12 days

0

21

Gravely 05900703

Cap Screw, Hex Head .50-13 x 1.50

$

$

Not available

22

Gravely 06400416

Washer, Flat .50

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 02116500

Nut, Lock .50-13

$

$

Not available

24

Gravely 05400251

Holder, Bearing

$

$

Not available

25

Gravely 07300311

Pulley, V 2G 3V 5.5 Taper Lock

$

$

Not available

26

Gravely 05500438

Bushing, Drive Sheave

$

$

Not available

27

Gravely 07200329

V-Belt (Matched Set of Two)

Note: (Matched Set of Two)

$75.99

$

Usually ships in 4-12 days

0

28

Gravely 04315200

Engine, 18 HP Kohler Command

$

$

Not available

29

Gravely 06600112

Key .25 x .25 x 1.25

$

$

Not available

30

Gravely 05900931

Cap Screw, Hex Head .38-16 x 1.75

$

$

Not available

31

Gravely 07000830

Nipple .38 x 3.50

$17.99

$

Usually ships in 4-12 days

0

32

Gravely 07001435

Elbow .375-18 NPTF

$

$

Not available

33

Gravely 02089751

Weldment, Engine Base
(Superseded to 09271751)

$

$

Not available

34

Gravely 05900623

Cap Screw, Hex Head .38-16 x 1.25

$

$

Not available

35

Gravely 05900921

Cap Screw, Hex Head .50-13 x 5.00

$

$

Not available

36

Gravely 06500612

Nut, Hex .50

$3.49

$

Usually ships in 4-12 days

0

37

Gravely 06500521

Nut, Hex Serrated Flange .38-16

$

$

Not available

38

Gravely 06400418

Washer, Hardened .50
(Superseded to 06401116)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 05900824

Cap Screw, Hex Head .38-16 x 1.50

$

$

Not available

40

Gravely N/A

Plug, Oil Drain (Use drain plug supplied with engine)

Note: (Use drain plug supplied with engine)

$

$

Currently unavailable
