995408 - Gravely 21" SuperStriper Walk-Behind Mower, Honda GCV-160 (SN: 000101 & Above) Handlebar And Control Parts Diagram

21" SuperStriper Walk-Behind Mower, Honda GCV-160

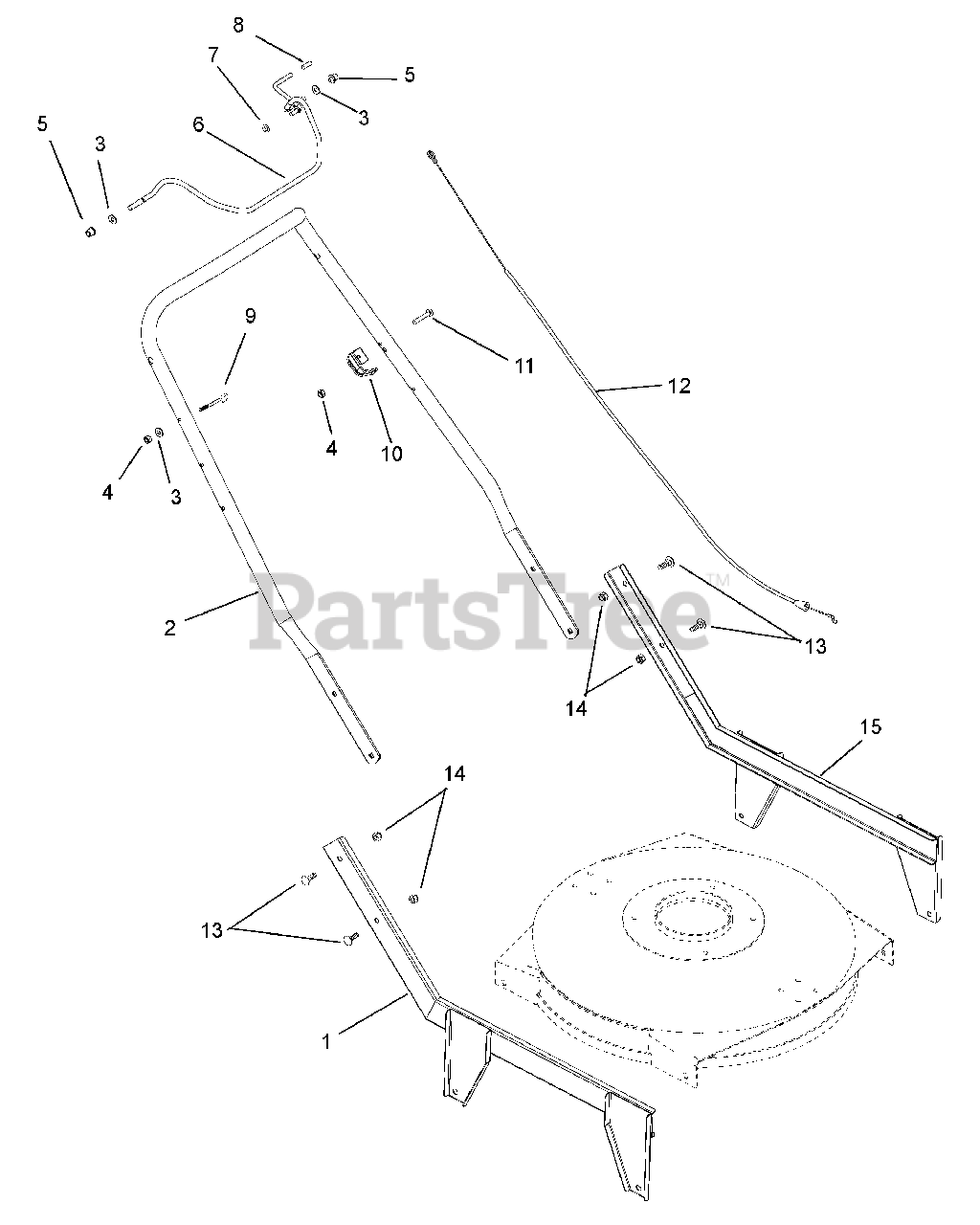

Handlebar And Control Parts Diagram

  • Title

1

Gravely 01971800

Weldment, Handle Mount, Right Side

$

$

Not available

2

Gravely 02965300

Handlebar, Modified

$

$

Not available

3

Gravely 06400214

Washer, Flat .25

$

$

Not available

4

Gravely 06500311

Hex Nut, .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 05514500

Bushing, Flange

$3.99

$

In Stock, Qty 20+

0

6

Gravely 01245100

Weldment, Engine Bail
(Superseded to 01245151)

$56.99

$

Usually ships in 4-12 days

0

7

Gravely 05717600

Ring, External Retaining

$0.99

$

In Stock, Qty 17

0

8

Gravely 07517000

Cap, Vinyl .25 ID

$3.49

$

In Stock, Qty 10

0

9

Gravely 02052800

Eyebolt

$

$

Not available

10

Gravely 01245651

Bracket, Engine Cable Anchor

$

$

Not available

11

Gravely 05900603

Capscrew, Hexhead .25-20 x 1.5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

12

Gravely 06900016

Cable, Engine Control

$37.99

$

Usually ships in 4-12 days

0

13

Gravely 06200024

Bolt, Roundhead Squareneck .313-18 x .5

$

$

Not available

14

Gravely 06500317

Nut, Hex Nylock .3125-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 01971100

Weldment, Handle Mount, Left Side

$

$

Not available
