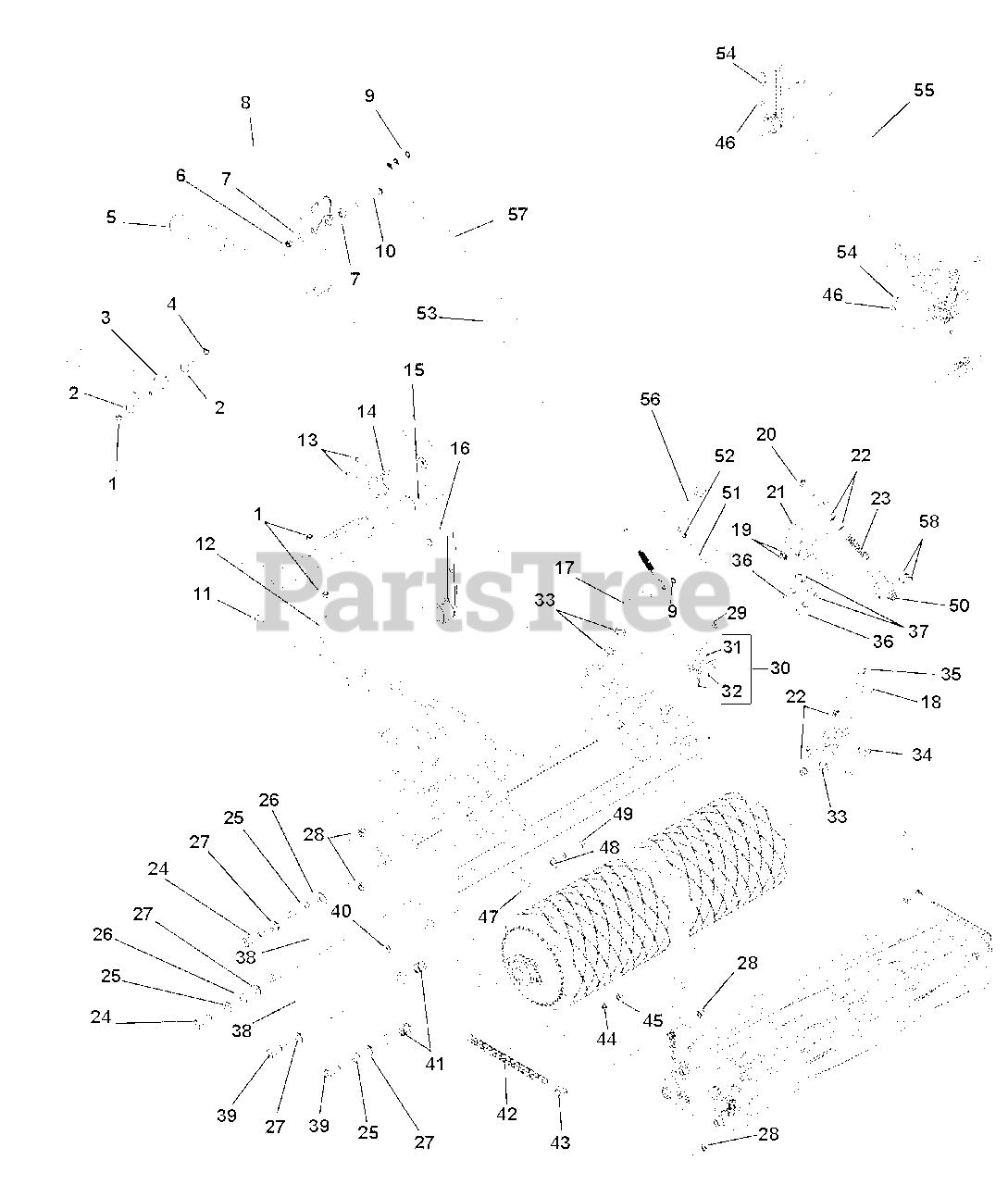

995313 (CL-130) - Gravely 30" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Frame Assembly- Right Side Parts Diagram

30" Walk-Behind Reel Mower, Kohler

Frame Assembly- Right Side Parts Diagram

  • Title

1

Gravely 06500429

Nut, Hex .25-20

$

$

Not available

2

Gravely 06400532

Washer, Flat .25

$

$

Not available

3

Gravely 03378453

Stop, Handle

$

$

Not available

4

Gravely 02110600

Screw, Pan Head Slotted .25-20 x 2

$

$

Not available

5

Gravely 02812600

Grip

$

$

Not available

6

Gravely 06500513

Nut, Hex .25-20 Nyloc

$

$

Not available

7

Gravely 00399300

Bushing, Flange

$

$

Not available

8

Gravely 00398351

Paddle, Right Hand

$25.99

$

In Stock, only 2 left!

0

9

Gravely 05717600

Ring, Retaining .25

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05900918

Cap Screw, Hex Head .25-20 x 2.5

$

$

Not available

11

Gravely 05901133

Screw, Caster Pin .25-28 Pan Head Slotted Stainless Steel

$

$

Not available

12

Gravely 07000725

Eyebolt .25-20 x 1.563

$

$

Not available

13

Gravely 06100126

Screw, Round Head Machine 10-24 x .75

$

$

Not available

14

Gravely 02139653

Cap, Hand Lever

$

$

Not available

15

Gravely 05500516

Bushing, Lever

$

$

Not available

16

Gravely 02815153

Handle, Reel Lift

$

$

Not available

17

Gravely 03373551

Braking Block, Left Side

$

$

Not available

18

Gravely 02816800

Cap Screw, Hex Head .50-20 x 3.5

$

$

Not available

19

Gravely 06536000

Nut, Nylock #10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06200022

Bolt, Carriage .312-18 x 1.5

$

$

Not available

21

Gravely 03373751

Braking Retainer, Left Hand

$

$

Not available

22

Gravely 06500428

Nut, Hex .312-18

$

$

Not available

23

Gravely 08300314

Spring

$

$

Not available

24

Gravely 05901019

Screw, Shoulder .50 Diameter .38 x 1

$

$

Not available

25

Gravely 06400402

Washer, Metal Bushing .50 x 18

$

$

Not available

26

Gravely 06400739

Washer

$

$

Not available

27

Gravely 05500733

Bushing, Sintered Steel, Oil Impregnated

$9.99

$

Usually ships in 4-12 days

0

28

Gravely 02091800

Nut, Hex .375-16

$

$

Not available

29

Gravely 02101700

Pin

$

$

Not available

30

Gravely 02101500

Assembly, Brake (Includes Items 31 & 32)

Note: (Includes Items 31 & 32)

$

$

Not available

31

Gravely 02101400

Shoe, Brake

$

$

Not available

32

Gravely 02101600

Pad, Brake

$

$

Not available

33

Gravely 02223900

Nut, Hex Jam .50-20

$

$

Not available

34

Gravely 02103451

Lever, Clutch Fork

$

$

Not available

35

Gravely 05900738

Cap Screw, Hex Head .312-18 x 1.5

$

$

Not available

36

Gravely 05900717

Cap Screw, Hex Head .50-20 x 1

$

$

Not available

37

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

38

Gravely 02799053

Arm, Reel

$

$

Not available

39

Gravely 02799300

Bolt, Arm Stainless Steel, .50 Shoulder 18-8

$

$

Not available

40

Gravely 05901132

Cap Screw, Flat Head Socket .312-18 x 1 Stainless Steel

$

$

Not available

41

Gravely 02815600

Spring, Reel .750 OD x .090 Wire Diameter x .730 – .750 Free Length

$

$

Not available

42

Gravely 03760700

Chain, Traction Drive (31" #423)

Note: (31" #423)

$

$

Not available

43

Gravely 02268800

Master Link

$

$

Not available

44

Gravely 06400522

Washer, Lock .312

$

$

Not available

45

Gravely 06500428

Nut, Hex .312-10

$

$

Not available

46

Gravely 06400509

Washer, Flat .312
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 02793900

Adjuster, Chain

$

$

Not available

48

Gravely 06400421

Washer, Flat .375

$

$

Not available

49

Gravely 05900931

Cap Screw, Hex Head .38-16 x 1.75

$

$

Not available

50

Gravely 01668500

Switch, Double Pole Plunger

$

$

Not available

51

Gravely 07001520

Eyebolt .186 10-24 x 3

$

$

Not available

52

07300725

Nut, Hex 10-24

$

$

Not available

53

Gravely 03764200

Cable Assembly, CL Brake

$

$

Not available

54

Gravely 06700109

Pin, Cotter

$

$

Not available

55

Gravely 02813900

Rod, Mower Lift 29-Inch

$

$

Not available

56

Gravely 05901213

Cap Screw, Hex Head .50-20 x 3

$

$

Not available

57

Gravely 03764400

Cable Assembly, CL Reel Clutch

$

$

Not available

58

Gravely 061001262

Screw, Pan Head Phillips 10-20 x .75

$

$

Not available
