995302 - Gravely APV Vacuum, Subaru (SN: 000101 & Above) Wheel Assembly Parts Diagram

APV Vacuum, Subaru

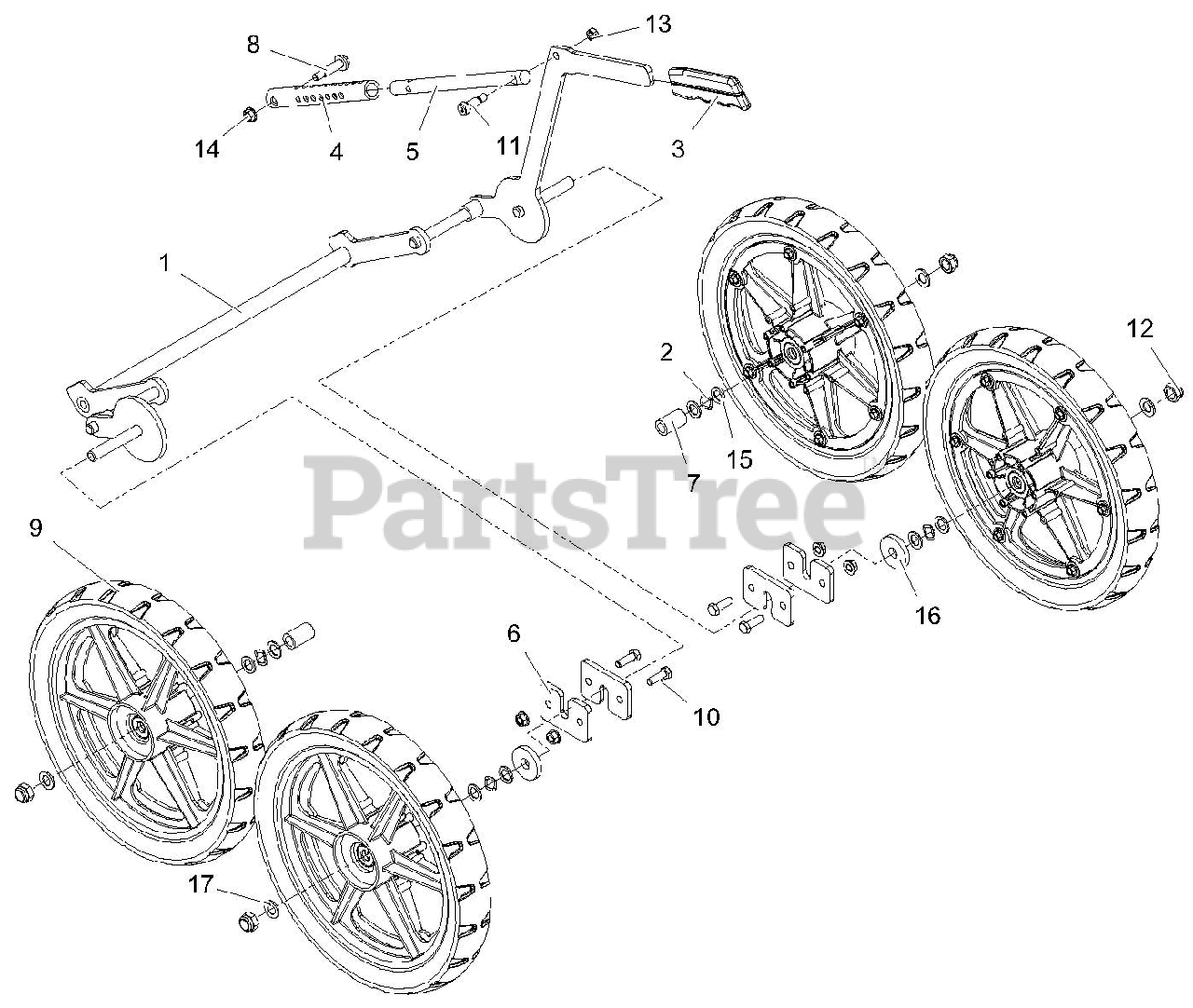

Wheel Assembly Parts Diagram

  • Title

1

Gravely 04570851

WLDMT, AXLE - APV HEIGHT ADJ SYS

$105.99

$

Usually ships in 4-12 days

0

2

Gravely 00325400

WAVE WASHER .531 x .781 x .125 FH

$0.99

$

In Stock, Qty 20+

0

3

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

Note: (YELLOW)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 04690153

TUBE, ADJ - APV HEIGHT ADJ

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 04690200

ROD, ADJ - APV HEIGHT ADJ

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 04690351

PLATE, RETAINER - APV HEIGHT ADJ

$

$

Not available

7

Gravely 04713000

SPCR, WHEEL - APV REAR WHEEL

$

$

Not available

8

Gravely 07001709

BLT, SHLDR .50 x 1.30 x .38-16 GR5

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 07101023

ASM, WHEEL 14 x 2 .50ID W/DRIVE HUB
(Superseded to 07101102)

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 05946900

BLT-HEX .31-18 x 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07001726

BLT-SHLDR .375 x .750 x .31-18 ZC

$

$

Not available

12

Gravely 06500715

NUT, ACORN .500-13 LC YWZC

$

$

Not available

13

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06441100

WSHR-FL-STL .520 x .827 x .062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

16

Gravely 06445000

WSHR-FL-STL .515 x 1.625 x .250 YWZC

$5.99

$

In Stock, only 3 left!

0

17

Gravely 06436600

WSHR-FL-STL .505 x .880 x .072 YWZC
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0
