995301 - Ariens All-Purpose Vacuum, Self-Propelled, Subaru (SN: 000101 - 000178) Main Frame Parts Diagram

All-Purpose Vacuum, Self-Propelled, Subaru

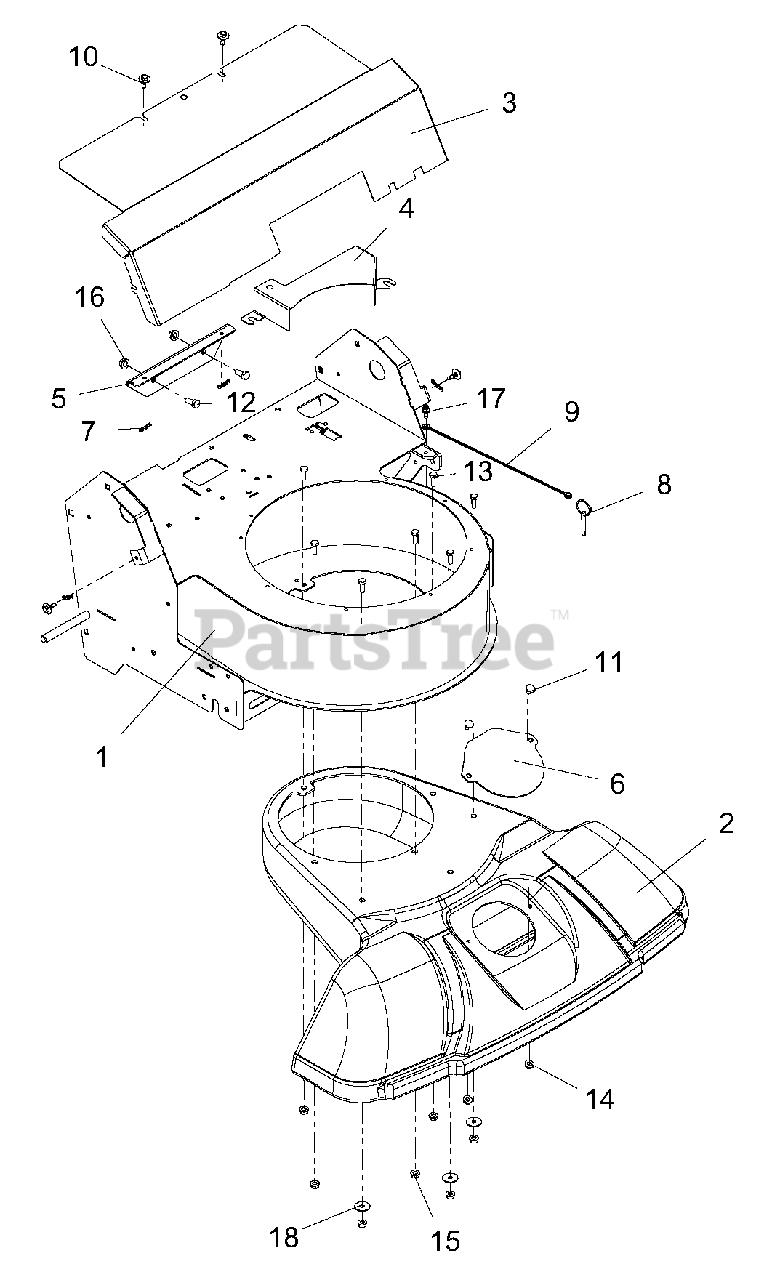

Main Frame Parts Diagram

  • Title

1

Ariens 59503600

KIT, APV FRAME ARIENS W/DECAL

$

$

Not available

2

Ariens 04556400

INLET-MOLDED, APV FRONT

$129.99

$

Usually ships in 4-12 days

0

3

Ariens 04682459

GUARD, TRANSMISSION - APV

$

$

Not available

4

Ariens 04682559

GUARD, BELT - APV

$

$

Not available

5

Ariens 04682859

BRKT, SUPPORT - TRANS GUARD

$

$

Not available

6

Ariens 04711851

COVER, HOSE INLET

$

$

Not available

7

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06800118

PIN, RING DETENT .25X1.50 ZC

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 06927100

CBL,HOOD

$14.99

$

In Stock, only 1 left!

0

10

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0
