995300 - Gravely APV Vacuum, Subaru (SN: 000101 - 000150) Handlebars And Bag Parts Diagram

APV Vacuum, Subaru

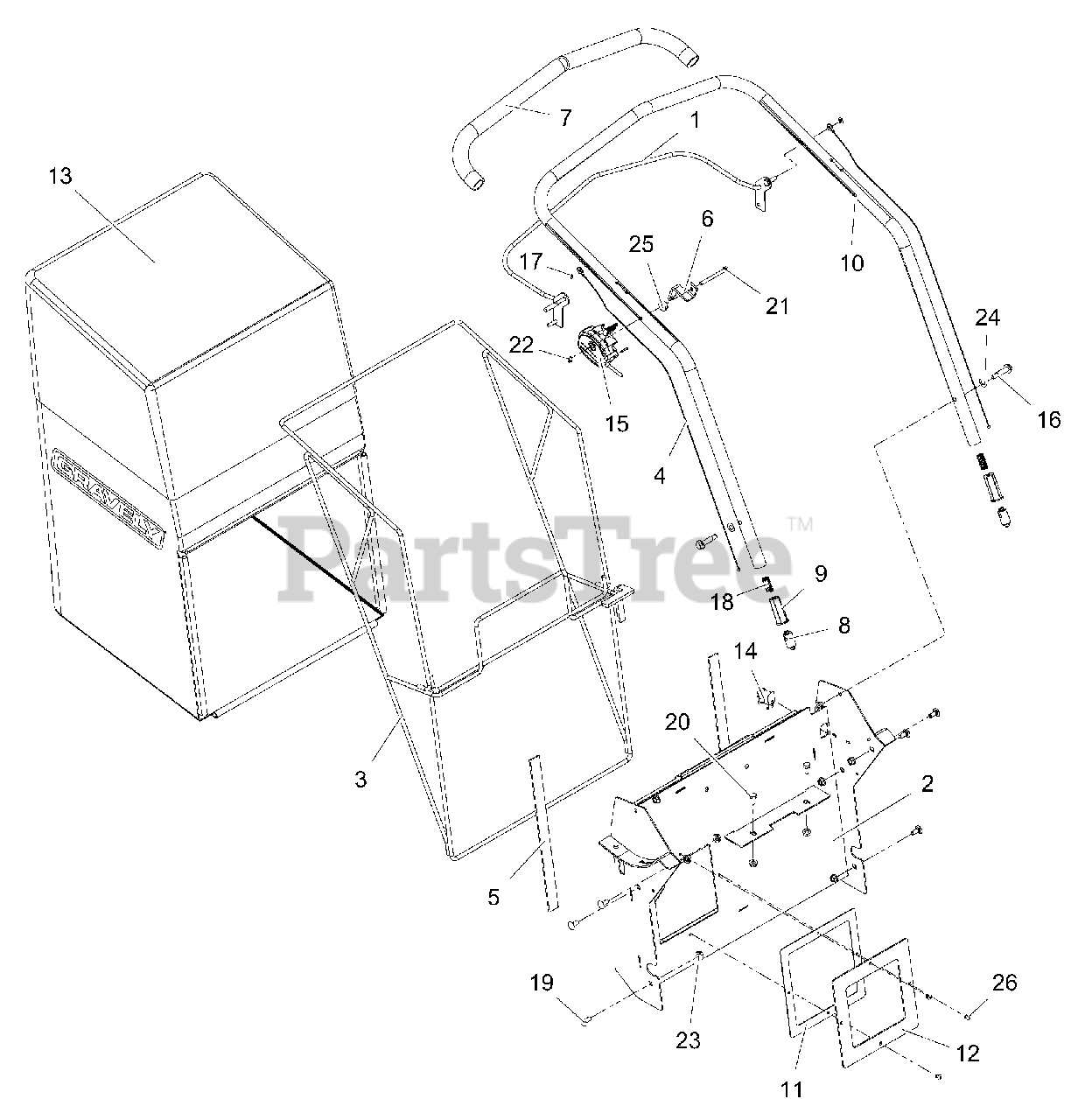

Handlebars And Bag Parts Diagram

  • Title

1

Gravely 04559451

WLDMT, BAIL,TRACTION APV

$52.99

$

Usually ships in 4-12 days

0

2

Gravely 04573453

WLDMT, BAG BACKING PLATE

$221.99

$

Usually ships in 4-12 days

0

3

Gravely 04675653

WLDMT, BAG FRAME - APV
(Superseded to 04675651)

$211.99

$

Usually ships in 4-12 days

0

4

Gravely 06900604

CABLE, ADJUSTABLE HANDLEBAR

$

$

Not available

5

Gravely 00928300

TAPE, FOAM - .12 x 1.00 VINYL

$

$

Not available

6

Gravely 01245400

ANCHOR, CABLE
(Superseded to 01245451)

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 04290700

GRIP-HANDLEBAR, UPPER

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 04521400

PIN, LM HANDLEBAR LOCKING

$7.99

$

In Stock, Qty 7

0

9

Gravely 04528600

HANDLEBAR ADJUSTMENT INSERT

$3.99

$

In Stock, Qty 12

0

10

Gravely 04557651

HANDLEBAR, APV

$

$

Not available

11

Gravely 04574851

PLATE, SEAL BACKER

$

$

Not available

12

Gravely 04576100

SEAL, RUBBER

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 04687100

BAG, GRAVELY APV - FELT

$158.99

$

Usually ships in 4-12 days

0

14

Gravely 04694300

SWITCH, SNAP MTG. N.C. W/BOOT

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 06900519

CABLE, THROTTLE /CHOKE 37.25"

$75.99

$

Usually ships in 4-12 days

0

16

Gravely 07001709

BLT, SHLDR .50 x 1.30 x .38-16 GR5

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 07027600

NUT, PUSH .25 x .50 O.D.

$2.49

$

In Stock, Qty 9

0

18

Gravely 08300028

SPRG, COMPRESSION

$4.99

$

In Stock, Qty 7

0

19

Gravely 06215700

BLT-RDHDSQNK .31-18 x .75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 05952200

BLT-HEX .31-18 x .625 GR5 YWZC
(Superseded to 05901832)

$

$

Not available

21

Gravely 05969900

BLT-HEX .25-20 x 2.75 GR5 YWZC

$

$

Not available

22

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06400840

WSHR-FL-STL .385 x .745 x .030 YWZC
(Superseded to 06401107)

$2.49

$

In Stock, only 1 left!

0

25

Gravely 06439100

WSHR-FL-STL .328 x .87 x .179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

26

Gravely 06800028

RVT-POP .187 x .250 (#64) YWZC
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, Qty 16

0
