995048 - Gravely APV Vacuum, Subaru (SN: 000101 - 000274) Transmission Assembly Parts Diagram

APV Vacuum, Subaru

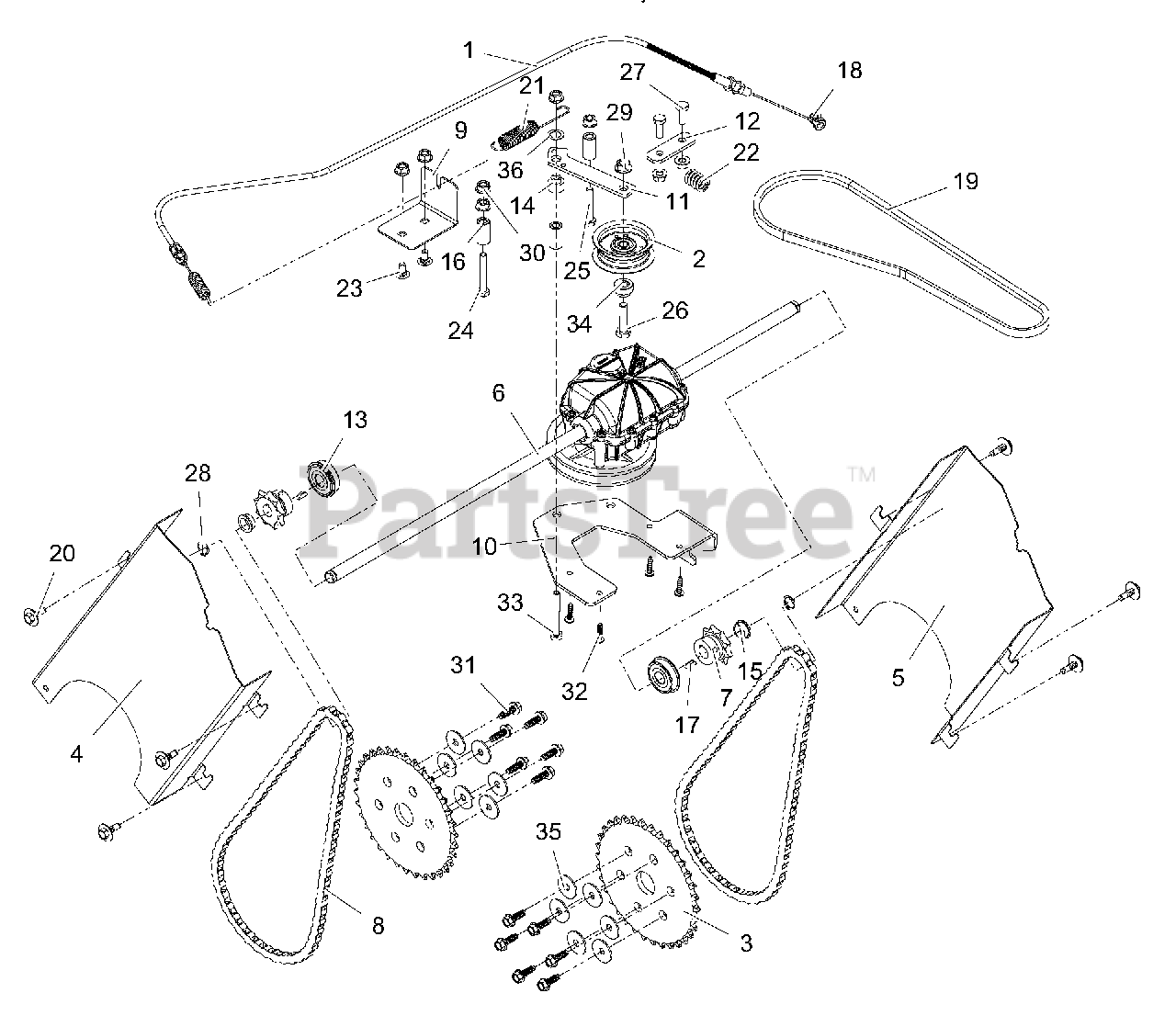

Transmission Assembly Parts Diagram

  • Title

1

Gravely 06900605

CABLE, TRACTION

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 07338900

IDLER, FLAT - 2.00"

$22.99

$

In Stock, only 1 left!

0

3

Gravely 04713800

SPROCKET, DRIVE - 41 34T FLAT

$51.99

$

Usually ships in 4-12 days

0

4

Gravely 04682653

GUARD, CHAIN - RIGHT APV

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 04682753

GUARD, CHAIN - LEFT APV

$30.99

$

Usually ships in 4-12 days

0

6

Gravely 04684400

TRANS, DRIVE -GT MA502

$115.99

$

Usually ships in 4-12 days

0

7

Gravely 04684600

SPROCKET, DRIVE - 41 9T #404KW

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 04684700

CHAIN, ROLLER - #41 64 PITCHES

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 04696651

MOUNT, CABLE - APV TRACTION

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 04696751

MOUNT, TRANS - APV

$12.99

$

Usually ships in 4-12 days

0

11

Gravely 04696800

ARM, IDLER - APV BELT DRIVE

$

$

Not available

12

Gravely 04712251

PLATE, RETAINER - APV TRANS

$

$

Not available

13

Gravely 05480000

BRG, BALL .501 x 1.38 x .438 SEALED

$13.99

$

In Stock, Qty 20+

0

14

Gravely 05500912

BSHG, FLANGE .263 x .394 x .625 x .528

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 05501119

BSHG, FLANGE .500 x .625 x .270 x .750

$3.99

$

In Stock, Qty 16

0

16

Gravely 05501131

BSHG, SLV .265 x .505 x .995

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 06600004

KEY, WDRF .125 x .50 x .20 (HRDEND)

Note: (HRDEND)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 07027600

NUT, PUSH .25 x .50 O.D.

$2.49

$

In Stock, Qty 9

0

19

Gravely 07200529

V-BELT, 3LWRAPPED CLUTCHING (NO RUBBER BLEED THRU)

Note: (NO RUBBER BLEED THRU)

$27.99

$

In Stock, Qty 19

0

20

Gravely 07400108

SCR, TAP .25-20 x .5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 08300540

SPRG, EXTENSION
(Superseded to 08300611)

$9.49

$

In Stock, Qty 20+

0

22

Gravely 08300605

SPRG, COMPRESSION

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 06220600

BLT-RDHDSQNK .25-20 x .50 G5 Y
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05964700

BLT-HEX .25-20 x 1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

25

Gravely 05952500

BLT-HEX .25-20 x 1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

26

Gravely 05947500

BLT-HEX .31-18 x 1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

27

Gravely 05946800

BLT-HEX .25-20 x .75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 05717100

RG-RTNG-EXT .500 x .050

$2.49

$

In Stock, Qty 8

0

29

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 07400106

SCR-HEX .25-14 x .75 YWZC

$2.49

$

In Stock, only 1 left!

0

32

Gravely 07400112

SCR-TAP #10-14 x .75 PLASTITE BLZC

$1.99

$

Usually ships in 4-12 days

0

33

Gravely 05967100

BLT-HEX .25-20 x 2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 05501114

BSHG, FLG .315 x .500 x .481 x .281

$

$

Not available

35

Gravely 06426600

WSHR-FL-STL .281 x 1.000 x .063 YWZC
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06442500

WSHR, - FIBER .437 x .656 x .032

$0.99

$

In Stock, only 2 left!

0
