995048 - Gravely APV Vacuum, Subaru (SN: 000101 - 000274) Main Frame Parts Diagram

APV Vacuum, Subaru

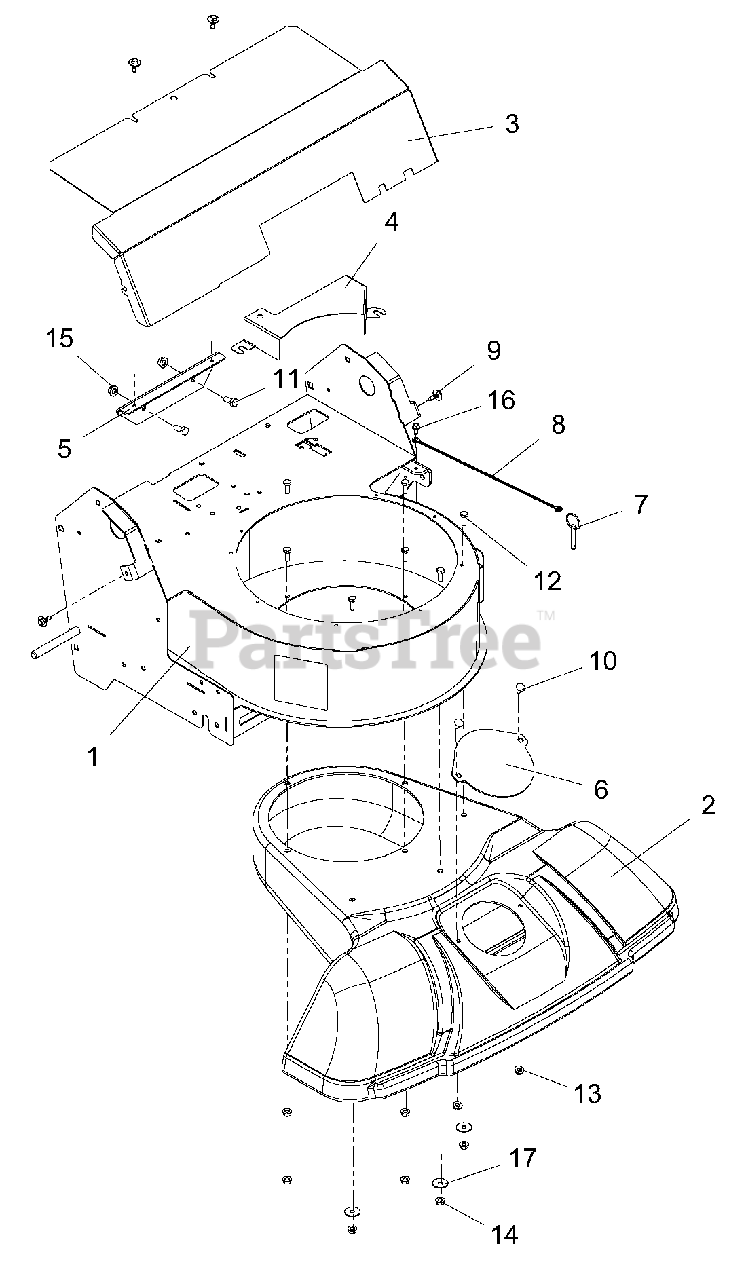

Main Frame Parts Diagram

  • Title

1

Gravely 59503500

WLDMT, FRAME - APV

$

$

Not available

2

Gravely 04556400

INLET, UPPER

$129.99

$

Usually ships in 4-12 days

0

3

Gravely 04682453

GUARD, TRANS - APV

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 04682553

GUARD, BELT - APV

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 04682853

BRKT, SUPPORT - TRANS GUARD

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 04711851

COVER, HOSE INLET-BLACK

$

$

Not available

7

Gravely 06800118

PIN, RING DETENT .25 x 1.25

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06927100

CABLE

$14.99

$

In Stock, only 1 left!

0

9

Gravely 07400108

SCR, TAP .25-20 x .5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06214300

BLT-RDHDSQSHNK .25-20 x .50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05947000

BLT-HEX .31-18 x .75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05946800

BLT-HEX .25-20 x .75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06500710

NUT, LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07400034

SCR-TAP .25-20 x .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06426600

WSHR-FL-STL .281 x 1.000 x .063 YWZC
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0
