995048 - Gravely APV Vacuum, Subaru (SN: 000101 - 000274) Engine/Fan Assembly Parts Diagram

APV Vacuum, Subaru

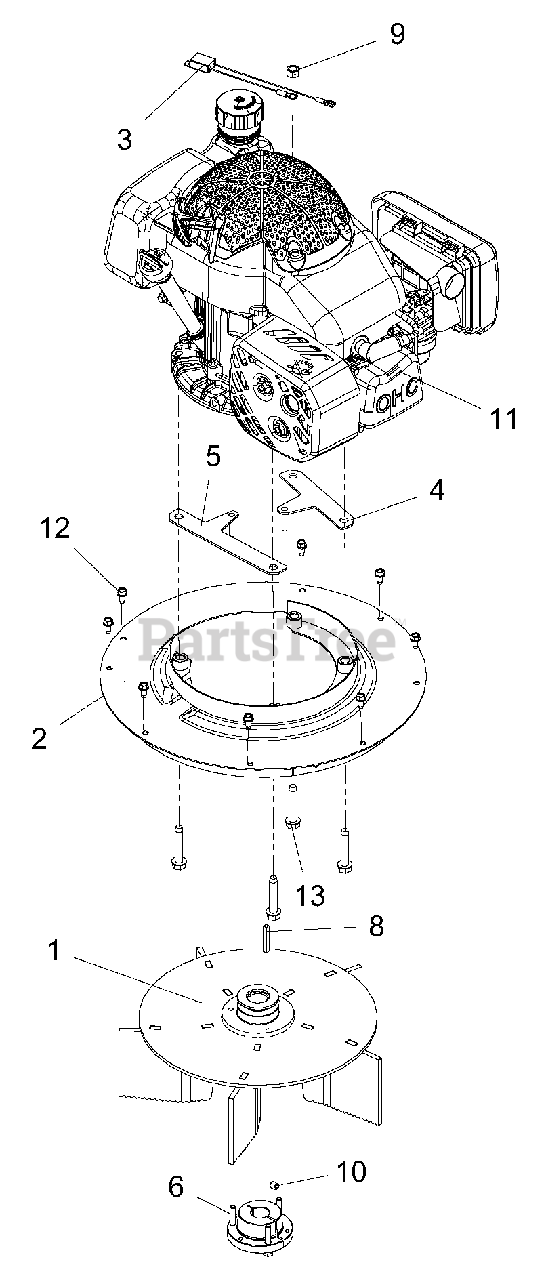

Engine/Fan Assembly Parts Diagram

  • Title

1

Gravely 04748000

WLDMT, IMPELLER - APV TAPER
(Superseded to 59504500)

$188.99

$

Usually ships in 4-12 days

0

2

Gravely 04569753

WLDMT, ENGINE PLATE - RED

$71.99

$

Usually ships in 4-12 days

0

3

Gravely 04674600

HARNESS, WIRE APV

$

$

Not available

4

Gravely 04696951

WLDMT, BRKT - APV BELT FNGR S

$35.99

$

Usually ships in 4-12 days

0

5

Gravely 04697051

WLDMT, BRKT - APV BELT FNGR R

$

$

Not available

6

Gravely 05501216

BUSHING, TAPER - SPLIT 7/8" (SDS)

Note: (SDS)

$95.99

$

Usually ships in 4-12 days

0

6

Gravely 05901536

BLT-HEX .25-20 X 1.5 FTHD GR5 ZC

$

$

Not available

6

Gravely 06308400

@WSHR-LK .25 X .062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06609600

KEY-SQ .188 x .188 x 1.50 SAE 8630

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06005500

SCR-SET, 31-18 x .38 SKHCUPDL REV

$2.99

$

In Stock, Qty 15

0

11

Gravely 08200838

ENGINE, SUBARU - EA190 (CARB)

Note: (CARB)

$

$

Not available

12

Gravely 07400034

SCR-TAP .25-20 x .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07417300

SCR-TAP .38-16 x 2.00 HWH TR YZ

$4.99

$

Usually ships in 4-12 days

0
