995041 - Gravely Tow-Behind Truck Loader, 10" Hose (SN: 000101 & Above) Vacuum Hose Assembly Parts Diagram

Tow-Behind Truck Loader, 10" Hose

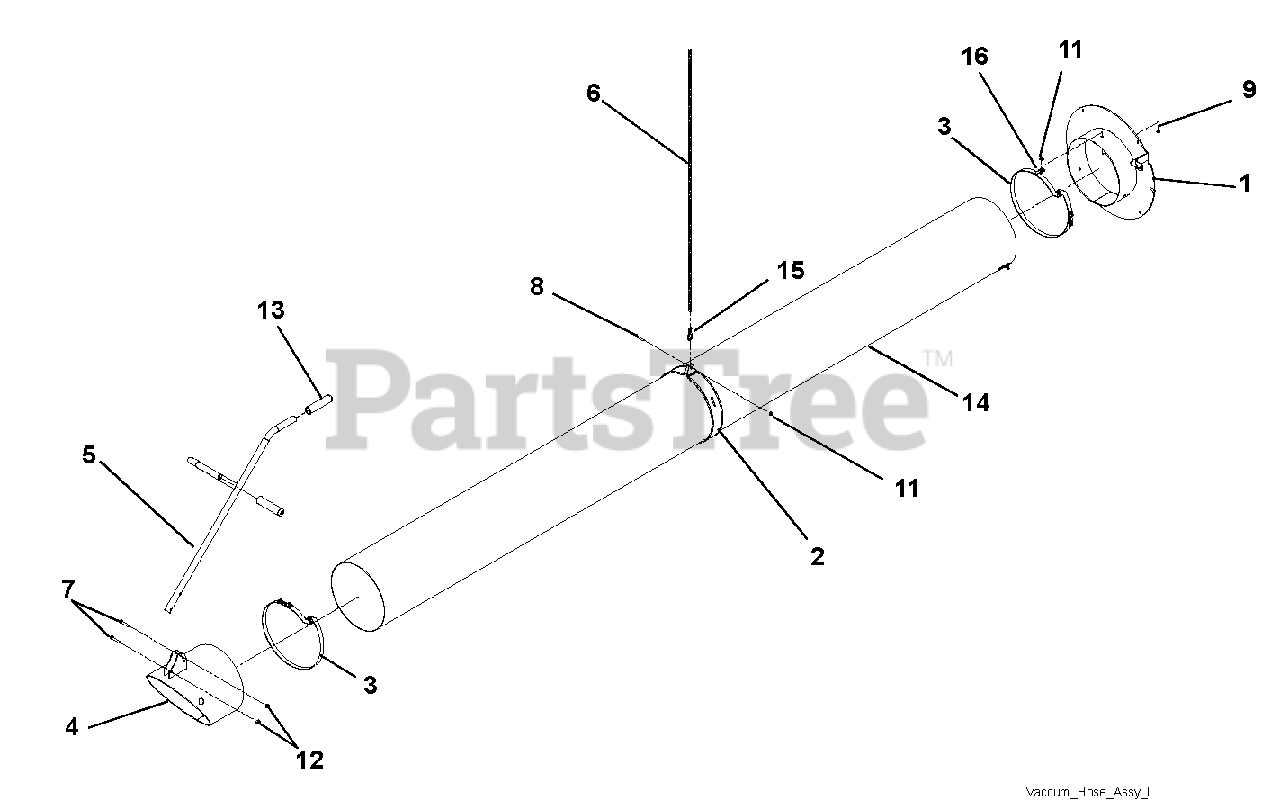

Vacuum Hose Assembly Parts Diagram

  • Title

1

Gravely 04216353

Weldment, Cover Plate (995042)

Note: (995042)

$

$

Not available

Gravely 04225253

Weldment, Cover Plate (995041)

Note: (995041)

$

$

Not available

2

Gravely 04217353

Band, Hose Support 12" (995042)

Note: (995042)

$

$

Not available

Gravely 04247653

Band, Hose Support 10" (995041)

Note: (995041)

$

$

Not available

3

Gravely P360344

Clamp, Bridge 12" (995042)

Note: (995042)

$

$

Not available

Gravely P360222

Clamp, Hose 10" Step (995041)

Note: (995041)

$55.99

$

Usually ships in 4-12 days

0

4

Gravely 04217453

Weldment, Tube Pickup 12" (995042)

Note: (995042)

$

$

Not available

Gravely 04238453

Weldment, Tube Pickup 10" (995041)

Note: (995041)

$129.99

$

Usually ships in 4-12 days

0

5

Gravely 04238653

Weldment, Handle, Truck Loader
(Superseded to 04238651)

$

$

Not available

6

Gravely 04247400

Chain, .148 x 5’

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 05957400

Bolt, Hex .312-18 x 1.75 Grade 5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

8

Gravely 05964700

Bolt, Hex .25-20 x 1.75 Grade 5 YWZ
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00 Grade 5 YWZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06435800

Washer, Flat .312 x .734 x .065 STL YWZ (not shown)
(Superseded to 06401124)

Note: (not shown)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

12

Gravely 06545400

Nut, .31-18 Nyloc Flange YXCZ
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07518700

Grip, Handle
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

14

Gravely P360386

Hose, 12" x 12’ Clear (995042)

Note: (995042)

$641.99

$

Usually ships in 4-12 days

0

Gravely P360221

Hose, 10" x 12’ Clear (995041)

Note: (995041)

$502.99

$

Usually ships in 4-12 days

0

15

Gravely P430103

Hook, Spring 2450S-3/16"

$

$

Not available

16

Gravely 04314051

Clip, Hose

$15.99

$

Usually ships in 4-12 days

0
