995040 - Gravely Tow-Behind Truck Loader, 8" Hose (SN: 000101 & Above) Fan And Spacers Parts Diagram

Tow-Behind Truck Loader, 8" Hose

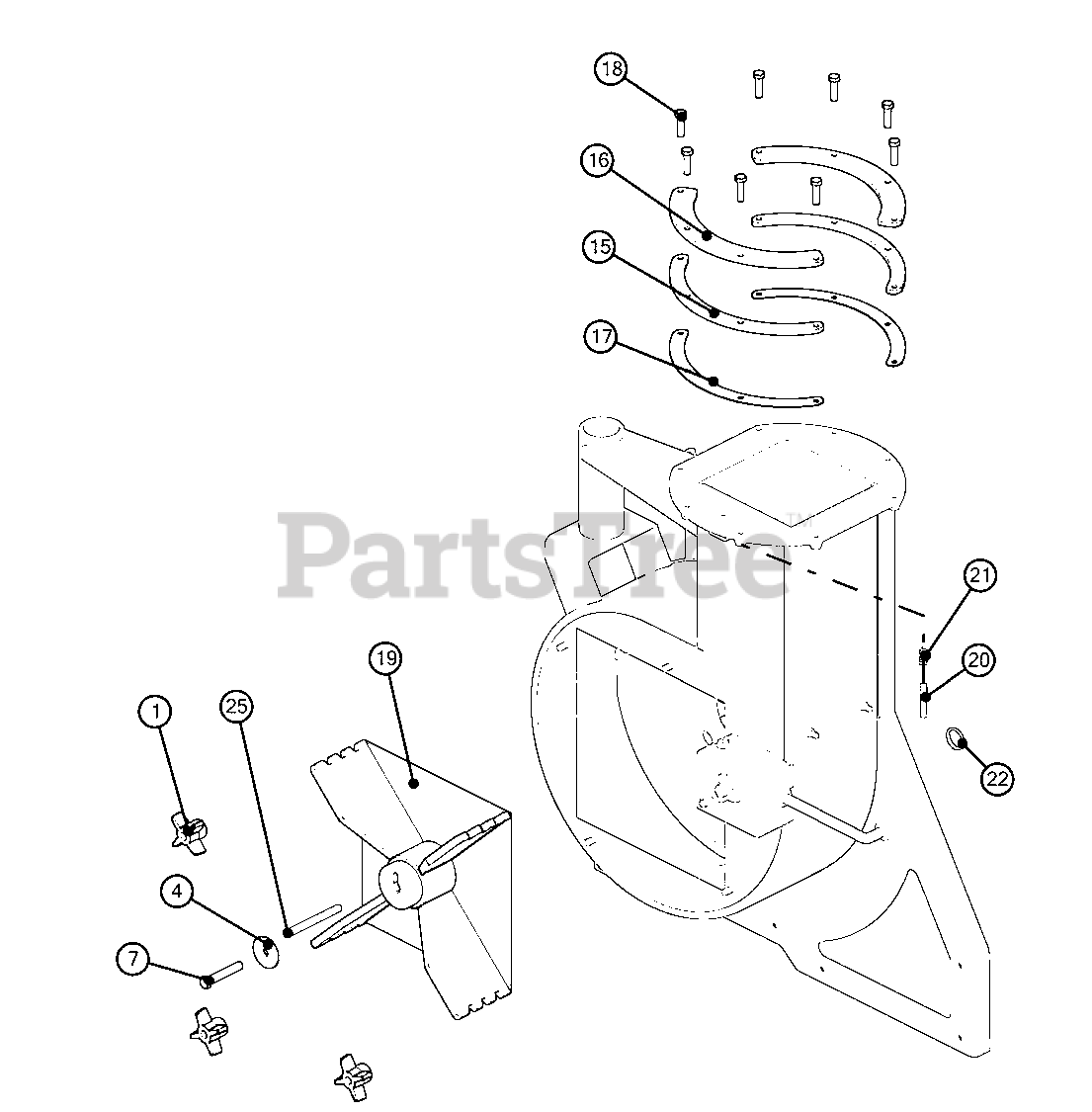

Fan And Spacers Parts Diagram

  • Title

1

Gravely P350139

Knob-5/16 THRD

$

$

Not available

4

82-138-B-3

Washer, Area VAC 35 - 29/64 x 3/4

$

$

Not available

7

Gravely 05901417

Bolt, Hex .38-24 x 2.5 GR5 EP80

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 04240453

Spacer, Flange

$

$

Not available

16

Gravely 04240553

Flange, Top

$

$

Not available

17

Gravely 04265653

Spacer, Flange .060

$

$

Not available

18

Gravely 05947500

Bolt, Hex .31-18 x 1.25 GR5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

19

Gravely 04222600

Fan Weldment 20 TL

$517.99

$

Usually ships in 4-12 days

0

20

Gravely 04265100

Pin, Spring Latch

$29.99

$

Usually ships in 4-12 days

0

21

Gravely 08300700

Spring, Comp. .028 x .34 x 1.062

$

$

Not available

22

Gravely M88183

Ring, Locking

$

$

Not available

25

Gravely 06600216

Key, Square .250 x 4.00

$7.99

$

Usually ships in 4-12 days

0
