995040 - Gravely Tow-Behind Truck Loader, 8" Hose (SN: 000101 & Above) Engine Parts Diagram

Tow-Behind Truck Loader, 8" Hose

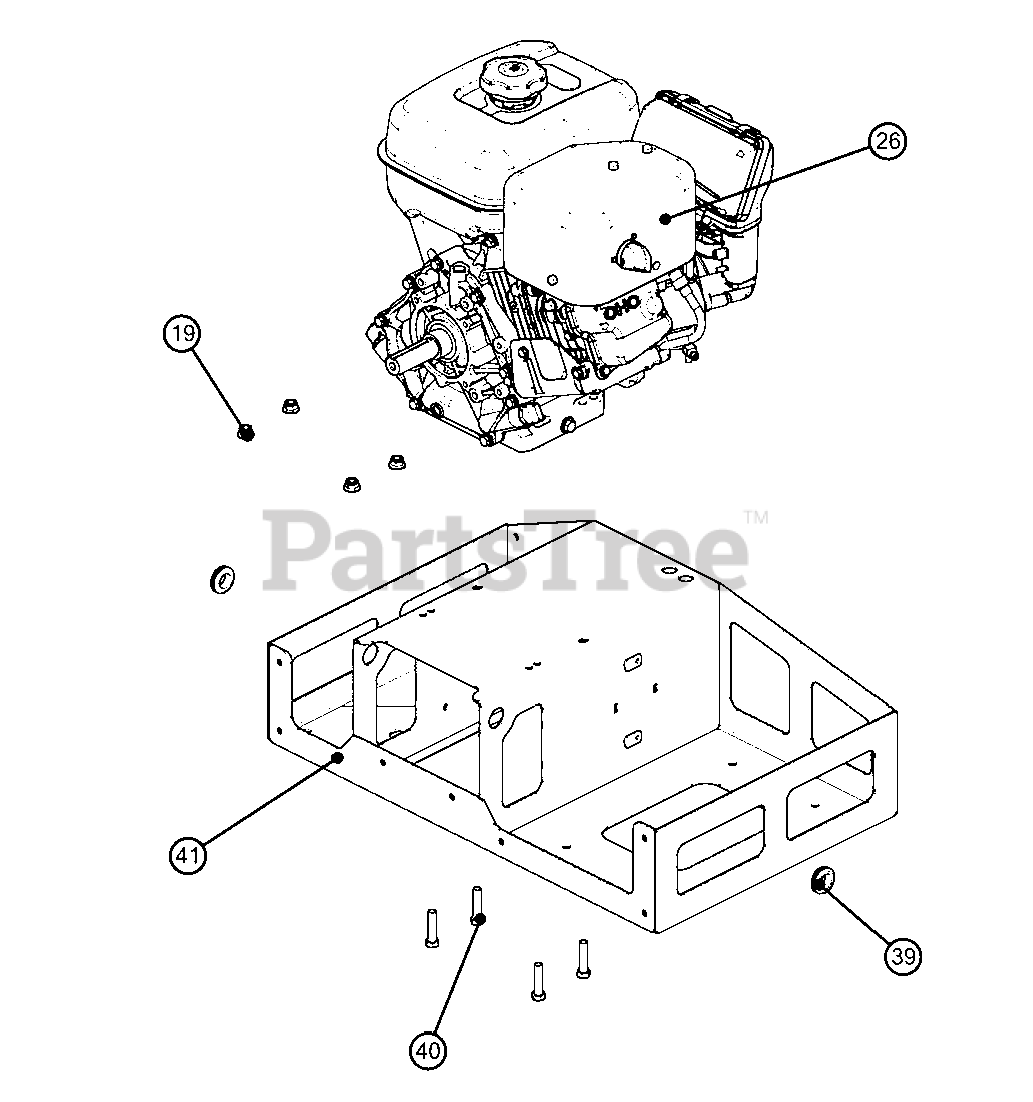

Engine Parts Diagram

  • Title
39

Gravely 03384007

Grommet, Rubber .88 ID x 1.38 OD x .14 GR

$

$

Not available

41

Gravely 04244553

Weldment, Frame Base

$

$

Not available

26

Gravely 08200637

Engine, Robin EX40 14 HP

$

$

Not available

40

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06545500

Nut, Nyloc Flange .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
