995037 - Gravely Estate Master Tow-Behind 100" Trailing Lawn Sweeper, Hard (SN: 000101 & Above) Sweeper unit Assembly Parts Diagram

Estate Master Tow-Behind 100" Trailing Lawn Sweeper, Hard

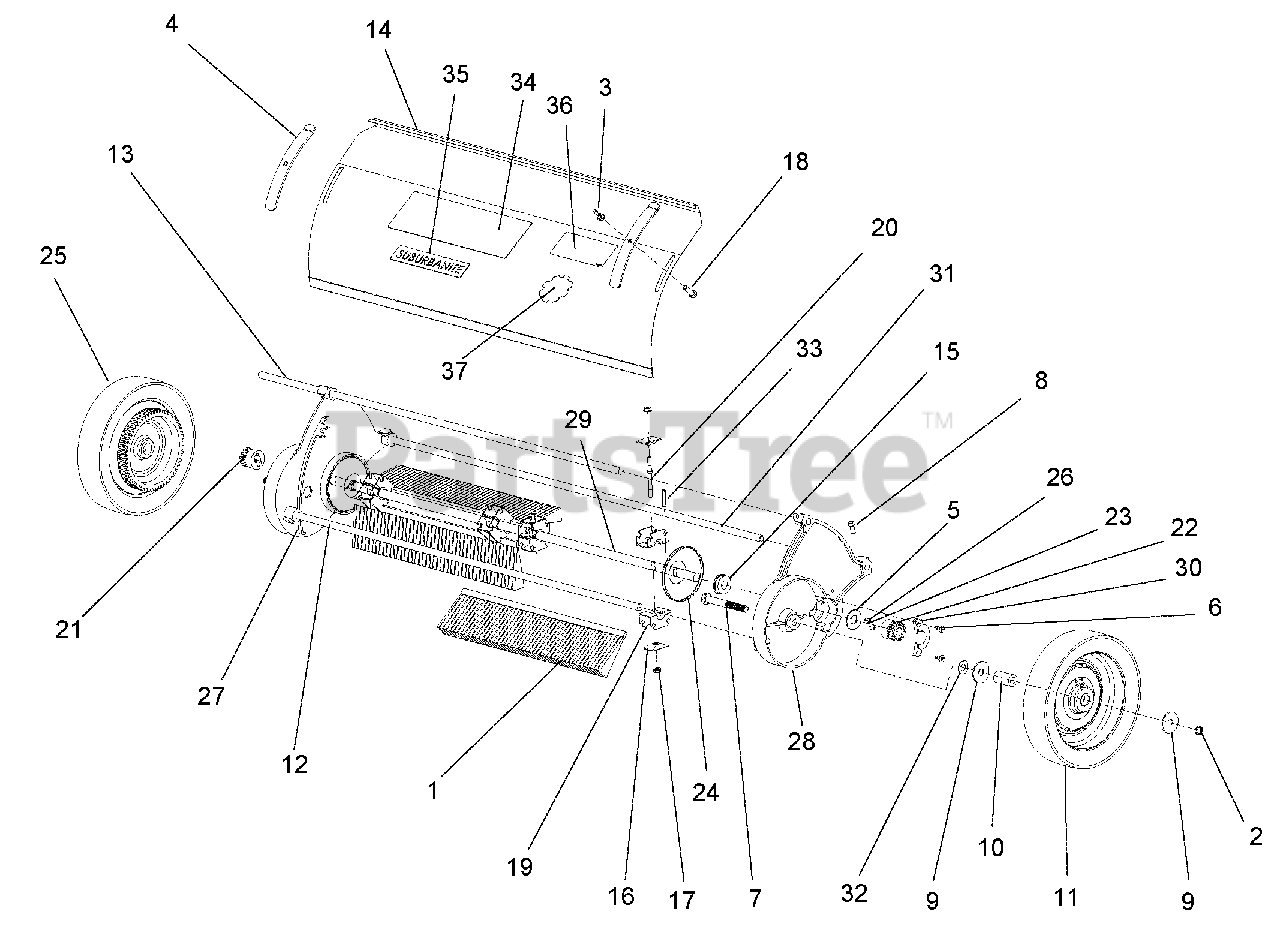

Sweeper unit Assembly Parts Diagram

  • Title

Decal, Parker, Heritage-Small

Decal, Parker, Heritage-Small

$

$

Not available

1

Gravely P-1200-17-B

Brush Assembly

$

$

Not available

1A

Gravely PBK-11

Brush Kit (includes mounting hardware)

Note: (includes mounting hardware)

$

$

Not available

2

Gravely 06544000

Nut, 1/2-20 Hex Nyloc
(Superseded to 06500818)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06503800

Nut, 5/16-18 Wing

$2.49

$

Usually ships in 4-12 days

0

4

Gravely P49-11-A

Clamp, Hood

$23.99

$

Usually ships in 4-12 days

0

5

Gravely P50-33-A

Washer, .656 x 1.50 x .06 Flat

$

$

Not available

6

Gravely 06006130

Screw, 1/4-20 x .5/8 Flat Hd.

$1.49

$

Usually ships in 4-12 days

0

7

Gravely P53-35-A

Bolt, Axle

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 06006125

Set Screw, Square Hd.
(Superseded to 06000220)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely P58-05-A

Washer, 5.16 x 1.625 x .075 Flat
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

10

Gravely P58-06-A

Sleeve

$45.99

$

Usually ships in 4-12 days

0

11

Gravely P58-14PTD

Wheel Hub

$

$

Not available

12

P68-33A

Tie Rod, Zinc Plated

$

$

Not available

13

P68-34A

Tie Rod

$

$

Not available

14

Gravely 04292100

Hood with Decals, SU, Gravely

$

$

Not available

Gravely 04199800

Hood with Decals, SU Parker

$

$

Not available

15

Gravely P68-60-A

Bearing, .625 x .150 Flange Radial

$

$

Not available

16

Gravely P69-04-A

Clamp, Brush Strip

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 06530100

Nut, 1/4-20 Flanged
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05946900

Bolt, 5/16-18 x 1 Hex 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

19

Gravely P74-13-C

Bracket

$20.99

$

Usually ships in 4-12 days

0

20

Gravely P74-16PLT

Stud, Plated Zinc

$34.99

$

Usually ships in 4-12 days

0

21

Gravely P74-78-RB

Pinion, Right

$6.99

$

Usually ships in 4-12 days

0

22

Gravely P74-79-LB

Pinion, Left

$

$

Not available

22A

Gravely PSA-1580-B

Pinion Kit (includes items 21, 22, 23 & 26)

Note: (includes items 21, 22, 23 & 26)

$

$

Not available

23

Gravely P74-80-A

Dowel Pin, .1875" OD x .4375"

$5.99

$

Usually ships in 4-12 days

0

24

Gravely P74-166-B

Dust Cover, Zinc Plated

$

$

Not available

25

Gravely P75-88-C

Tire Only

$36.99

$

Usually ships in 4-12 days

0

25A

Gravely PSA-609-C

Tire Assembly (includes items 11 & 25)

Note: (includes items 11 & 25)

$

$

Not available

26

Gravely P76-37-A

Pawl Spring

$12.99

$

In Stock, only 1 left!

0

27

Gravely P76-338-RF

Side Plate, Right

$

$

Not available

28

Gravely P76-339-LF

Side Plate, Left

$

$

Not available

29

Gravely 04229100

Shaft, Reel

$

$

Not available

30

Gravely P80-01-B

Casting, Cover Pinion

$

$

Not available

31

Gravely P80-141PLT

Adjust Tube, 1/2 x .065 Zinc Plated

$28.99

$

Usually ships in 4-12 days

0

32

Gravely P50-33-A

Washer, .656 x 1.50 x .06 Fiber

$

$

Not available

33

Gravely P67-521-A

Pin, Roll 3/16 x 1.0

$

$

Not available

34

Gravely 07800338

Decal, Gravely Logo

$11.99

$

In Stock, Qty 16

0

Decal, Parker Logo

Decal, Parker Logo

$

$

Not available

35

Gravely 04199900

Decal, Suburbanite

$

$

Not available

36

Gravely 04147800

Decal, Danger Read Manual

$

$

Not available

37

Gravely 08000507

Decal, Gravely, Heritage-Small

$28.99

$

Usually ships in 4-12 days

0
