995035 (CL-130) - Gravely 30" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Frame Assembly- Left Side View Parts Diagram

30" Walk-Behind Reel Mower, Kohler

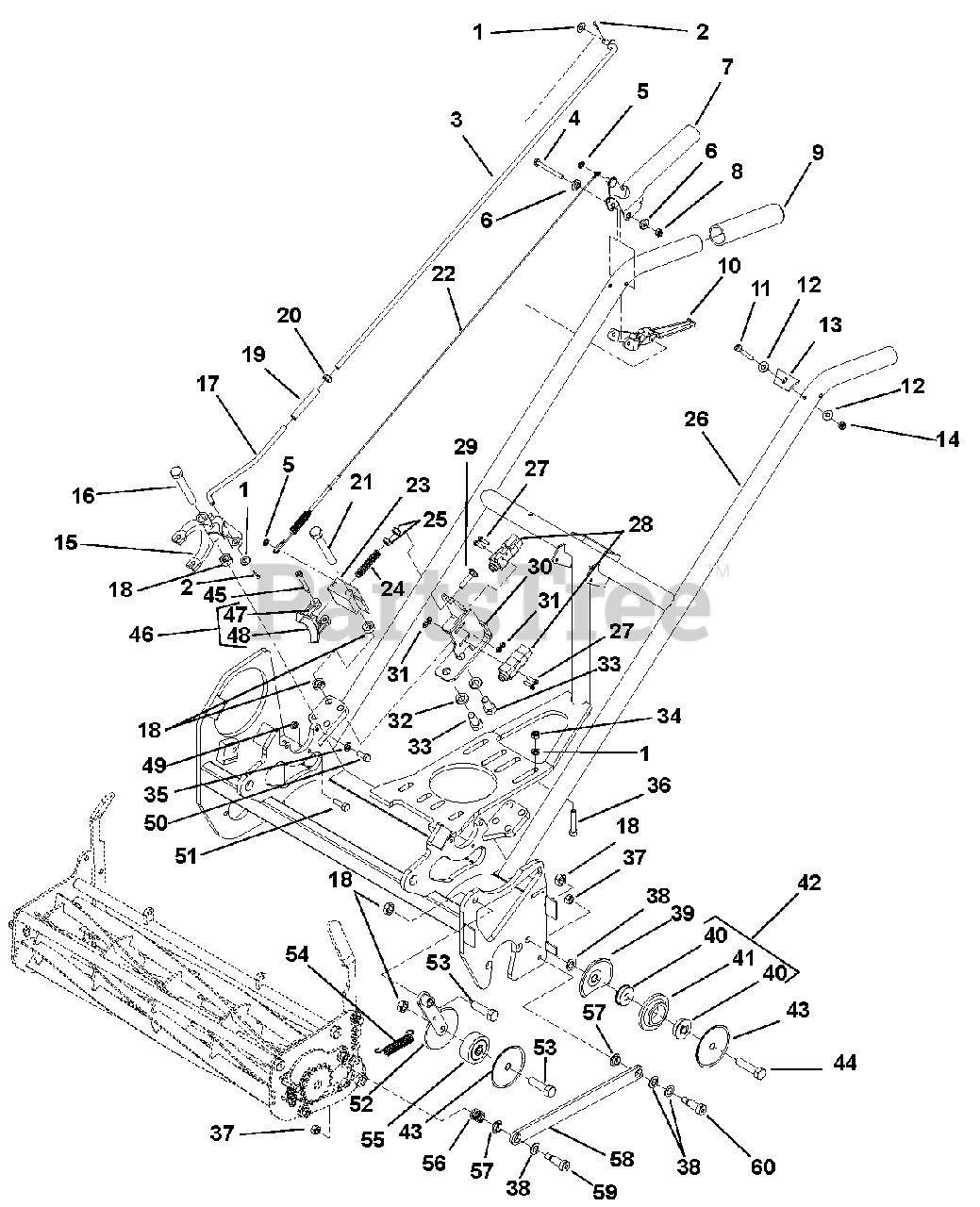

Frame Assembly- Left Side View Parts Diagram

  • Title

1

Gravely 06400807

Washer .312

$

$

Not available

2

Gravely 06700109

Pin, Cotter

$

$

Not available

3

Gravely 02818900

Rod, Clutch Straight

$

$

Not available

4

Gravely 05901323

Cap Screw, Hex Head .25-20 2.75

$

$

Not available

5

Gravely 05717600

Ring, Retaining .25

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00399300

Bushing, Flange

$

$

Not available

7

Gravely 00398151

Paddle, Clutch Hand

$40.99

$

In Stock, only 2 left!

0

8

Gravely 06500513

Nut, Hex .25-20 Nyloc

$

$

Not available

9

Gravely 02812600

Grip

$

$

Not available

10

Gravely 02797000

Lever, Clutch Hand

$

$

Not available

11

Gravely 02110600

Screw, Pan Head Slotted .25-20 x 2

$

$

Not available

12

Gravely 06400532

Washer, Flat .25

$

$

Not available

13

Gravely 03378400

Stop, Handle

$

$

Not available

14

Gravely 06500429

Nut, hex .25-20

$

$

Not available

15

Gravely 02103451

Lever, Clutch Fork

$

$

Not available

16

Gravely 02816800

Cap Screw, Hex Head .50-20 x 3.5

$

$

Not available

17

Gravely 02819000

Angle Rod, Left

$

$

Not available

18

Gravely 02223900

Nut, Jam .50-20

$

$

Not available

19

Gravely 02819200

Rod, Clutch Coupler

$

$

Not available

20

Gravely 06500601

Nut, Hex .312-24

$

$

Not available

21

Gravely 05901213

Cap Screw, Hex Head .50-20 x 3

$

$

Not available

22

Gravely 03764200

Cable Assembly, CL Brake

$

$

Not available

23

Gravely 03377551

Block, Braking Right Hand

$

$

Not available

24

Gravely 08300314

Spring

$

$

Not available

25

Gravely 06500428

Nut, Hex .312-18

$

$

Not available

26

04300553

Frame Weldment, CL-125 (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 04330453

Frame Weldment, CL-130 (995033, 035)

Note: (995033, 035)

$

$

Not available

27

Gravely 06100126

Screw, Pan Head Phillips 10-24 x .75

$

$

Not available

28

Gravely 01668500

Switch, Double Pole Plunger

$

$

Not available

29

Gravely 06200022

Bolt, Carriage .312-18 x 1.5

$

$

Not available

30

Gravely 03377851

Weldment, Braking Retainer Right Hand

$

$

Not available

31

Gravely 06536000

Nut, Nylock #10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 05900717

Cap Screw, Hex Head .50-20 x 1

$

$

Not available

34

Gravely 06500512

Nut, Hex .312-18 Nyloc
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06400522

Washer, Lock .312

$

$

Not available

36

Gravely 06200101

Bolt, Carriage .312-18 x 1.75

$

$

Not available

37

Gravely 02091800

Nut, Hex .375-16

$

$

Not available

38

Gravely 06400402

Washer, Metal Bushing .50 x 18 Gauge

$

$

Not available

39

Gravely 02389053

Guard, Inner Chain (Cupped)

Note: (Cupped)

$

$

Not available

40

Gravely 05400238

Bearing, Flange 1.375 O.D., .500 Bore

$

$

Not available

41

Gravely 02094500

Shell, Chain Idler

$

$

Not available

42

Gravely 02094400

Idler Assembly, Chain (Includes Items 40 and 41)

Note: (Includes Items 40 and 41)

$

$

Not available

43

Gravely 02819853

Disc, Chain Guide

$

$

Not available

44

Gravely 05900639

Cap Screw, Hex Head .50-20 x 2

$

$

Not available

45

Gravely 02101700

Pin

$

$

Not available

46

Gravely 02101500

Brake Assembly (Includes Items 47 and 48)

Note: (Includes Items 47 and 48)

$

$

Not available

47

Gravely 02101400

Shoe, Brake

$

$

Not available

48

Gravely 02101600

Pad, Brake

$

$

Not available

49

Gravely 02221000

Nut, Jam .312-18

$

$

Not available

50

Gravely 05900620

Cap Screw, Hex Head .312-18 x .75

$

$

Not available

51

Gravely 05900621

Cap Screw, Hex Head .312-18 x 1

$

$

Not available

52

Gravely 02383353

Bracket, Idler With Disc

$

$

Not available

53

Gravely 02818000

Bolt, Idler .50-20 x 1.75

$

$

Not available

54

Gravely 02100300

Spring, Idler High Tension

$

$

Not available

55

Gravely 02094600

Idler

$

$

Not available

56

Gravely 02815600

Spring, Reel

$

$

Not available

57

Gravely 05500733

Bushing, Sintered Steel, Oil Impregnated

$9.99

$

Usually ships in 4-12 days

0

58

Gravely 02799053

Arm, Reel

$

$

Not available

59

Gravely 02799300

Screw, Shoulder .50 Diameter .38-16 x .75 Stainless Stee

$

$

Not available

60

Gravely 05901019

Screw, Shoulder .50 Diameter .38-16 x 1 Stainless Steel

$

$

Not available

61

Gravely 02117700

Sprocket, 10-Tooth

$

$

Not available

62

Gravely 06400539

Spacer, Sprocket

$

$

Not available

63

Gravely 06400512

Washer

$

$

Not available

64

Gravely 05901215

Cap Screw, Hex Head 8 mm-1.25 x 20 8.

$

$

Not available

65

Gravely 02227400

Sprocket, 17-Tooth

$

$

Not available
