995033 (CL-130) - Gravely 30" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Verticutter Head Assembly Parts Diagram

30" Walk-Behind Reel Mower, Kohler

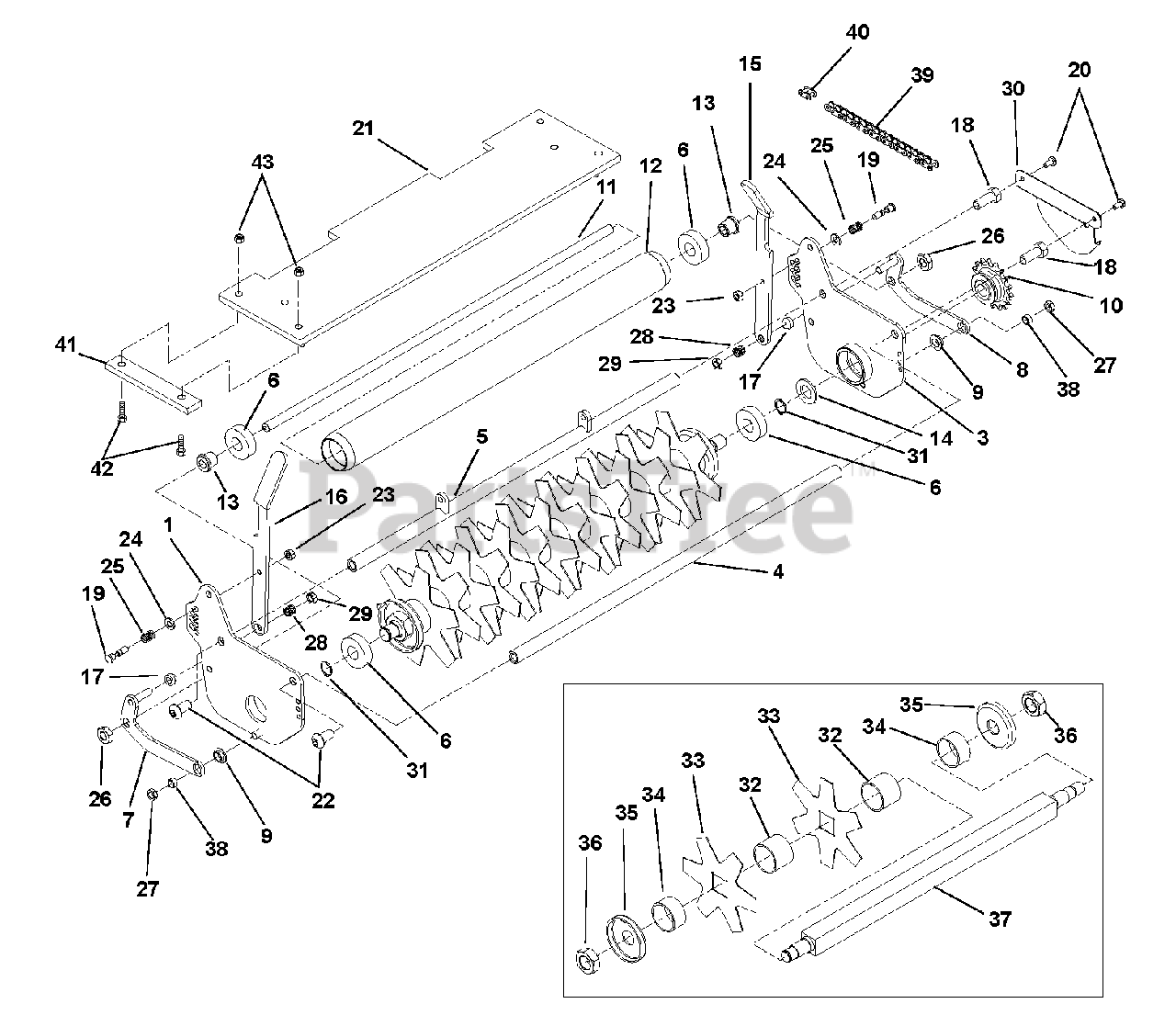

Verticutter Head Assembly Parts Diagram

  • Title

1

2228800

Shaft Assembly, Verticutter (995030, 032)

Note: (995030, 032)

$

$

Not available

2096500

Shaft Assembly, Verticutter (995033, 035)

Note: (995033, 035)

$

$

Not available

2

2096300

End Plate, V-Cut Right Hand

$

$

Not available

3

2096200

End Plate, V-Cut Left Hand

$

$

Not available

4

6400725

Bar, Spacer 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

2797500

Bar, Spacer 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

5

6400728

Bar, Rear Spacer 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

6400729

Bar, Rear Spacer 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

6

5400515

Bearing, 47 mm x 20 mm x 14 mm

$

$

Not available

7

2796200

Arm, Rear Roller Height Right Hand

$

$

Not available

8

2796100

Arm, Rear Roller Height Left Hand

$

$

Not available

9

5500733

Bushing, Sintered Steel, Oil Impregnated

$

$

Not available

10

2105300

Sprocket, 17 Tooth

$

$

Not available

11

2797900

Axle, Roller 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

2798000

Axle, Roller 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

12

2819400

Tube, Roller 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

2819500

Tube, Roller 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

13

5500730

Bushing

$

$

Not available

14

2106800

Shim

$

$

Not available

15

2797600

Handle, Quick Adjust Left Hand

$

$

Not available

16

2797700

Handle, Quick Adjust Right Hand

$

$

Not available

17

5500731

Bushing, 60 Degree

$

$

Not available

18

2821000

Cap Screw, Hex Head Special .50-13 x 1.25 (Hole)

Note: (Hole)

$

$

Not available

19

Gravely 79503800

Pin, Quick Adjust

$

$

Not available

20

5901133

Screw, Pan Head Slotted, Stainless Steel .25-28

$

$

Not available

21

2099000

Shield/Counterweight

$

$

Not available

22

2799200

Screw, Button Head .50-13 x 1 Stainless Steel

$

$

Not available

23

6500424

Nut, Hex .312-24

$

$

Not available

24

6400727

Washer, Quick Adjust

$

$

Not available

25

2815500

Spring, Quick Adjust

$

$

Not available

26

2135900

Nut, Nyloc Jam .50-20

$

$

Not available

27

2847200

Nut, Jam .375-24

$

$

Not available

28

8300423

Spring

$

$

Not available

29

2817200

Nut, Nyloc Jam .38-24

$

$

Not available

30

2813700

Chain Guard, Reel

$

$

Not available

31

5700117

Snap Ring, External .75

$

$

Not available

32

2228900

Spacer, Blade 1.50 x 2

$

$

Not available

33

2688400

Blade, Verti-Cut 6.5-Inch

$

$

Not available

34

2229000

Spacer, Blade 1.00 x 2

$

$

Not available

35

6400632

Washer, Shaft

$

$

Not available

36

2117200

Nut, Jam 1.0-14

$

$

Not available

37

2228600

Shaft, Verticutter (995030, 032)

Note: (995030, 032)

$

$

Not available

2096400

Shaft, Verticutter (995033, 035)

Note: (995033, 035)

$

$

Not available

38

5500734

Bushing

$

$

Not available

39

3760500

Chain, Reel Drive (56" # 423)

Note: (56" # 423)

$

$

Not available

40

2268800

Master Link

$

$

Not available

41

3764551

Retainer, Verticutter Top Shield

$

$

Not available

42

5900808

Cap Screw, Hex Head .25-20 x 1.75

$

$

Not available

43

6500513

Nut, Hex Nyloc 025-2

$

$

Not available
