995033 (CL-130) - Gravely 30" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Reel Adjustments Parts Diagram

30" Walk-Behind Reel Mower, Kohler

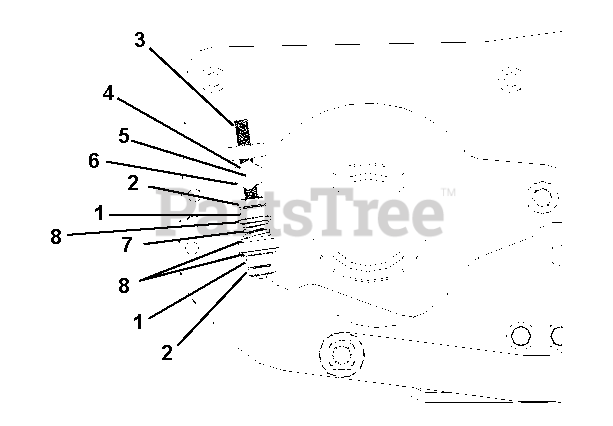

Reel Adjustments Parts Diagram

  • Title
?1

Gravely 06500528

Nut, Hex .25-28

$

$

Not available

2

Gravely 02225600

Nut, Jam .25-28

$

$

Not available

3

Gravely 07000917

Rod, Adjuster .25-20 x 3

$

$

Not available

4

Gravely 02662100

Screw, Bedknife

$

$

Not available

5

Gravely 02232400

Pivot Nut, Reel Adjuster

$

$

Not available

6

Gravely 05901206

Bolt, Nylon Lock .312-18 x .50

$

$

Not available

7

$

$

Not available

8

Gravely 06400825

Washer, SAE Flat .25

$

$

Not available
