995033 (CL-130) - Gravely 30" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Front Roller Assembly Parts Diagram

30" Walk-Behind Reel Mower, Kohler

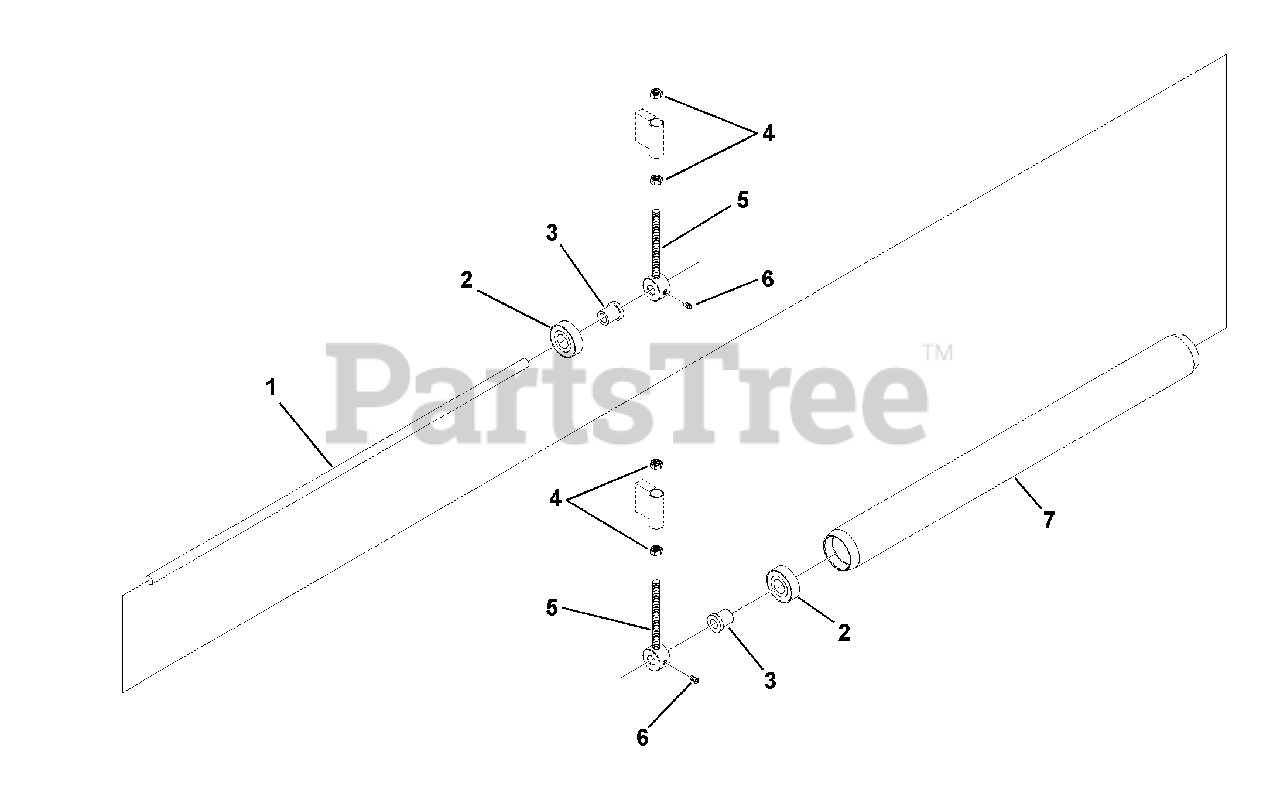

Front Roller Assembly Parts Diagram

  • Title

1

Gravely 02793500

Shaft, Front Roller 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02793600

Shaft, Front Roller 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

2

Gravely 05400515

Bearing, 47 mm x 20 mm x 14 mm

$

$

Not available

3

Gravely 05500730

Bushing

$

$

Not available

4

Gravely 02116100

Nut, Jam .50-13

$

$

Not available

5

Gravely 02820551

Weldment, Front Roller Adjustment Rod

$

$

Not available

6

Gravely 06000123

Set Screw, Square Head Cup Point .25 x .50

$

$

Not available

7

Gravely 02819400

Roller, Height 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02819500

Roller, Height 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available
