995032 (CL-125) - Gravely 25" Walk-Behind Reel Mower, Honda (SN: 000101 & Above) Reel Lift Shaft Assembly 25 Mowers Parts Diagram

25" Walk-Behind Reel Mower, Honda

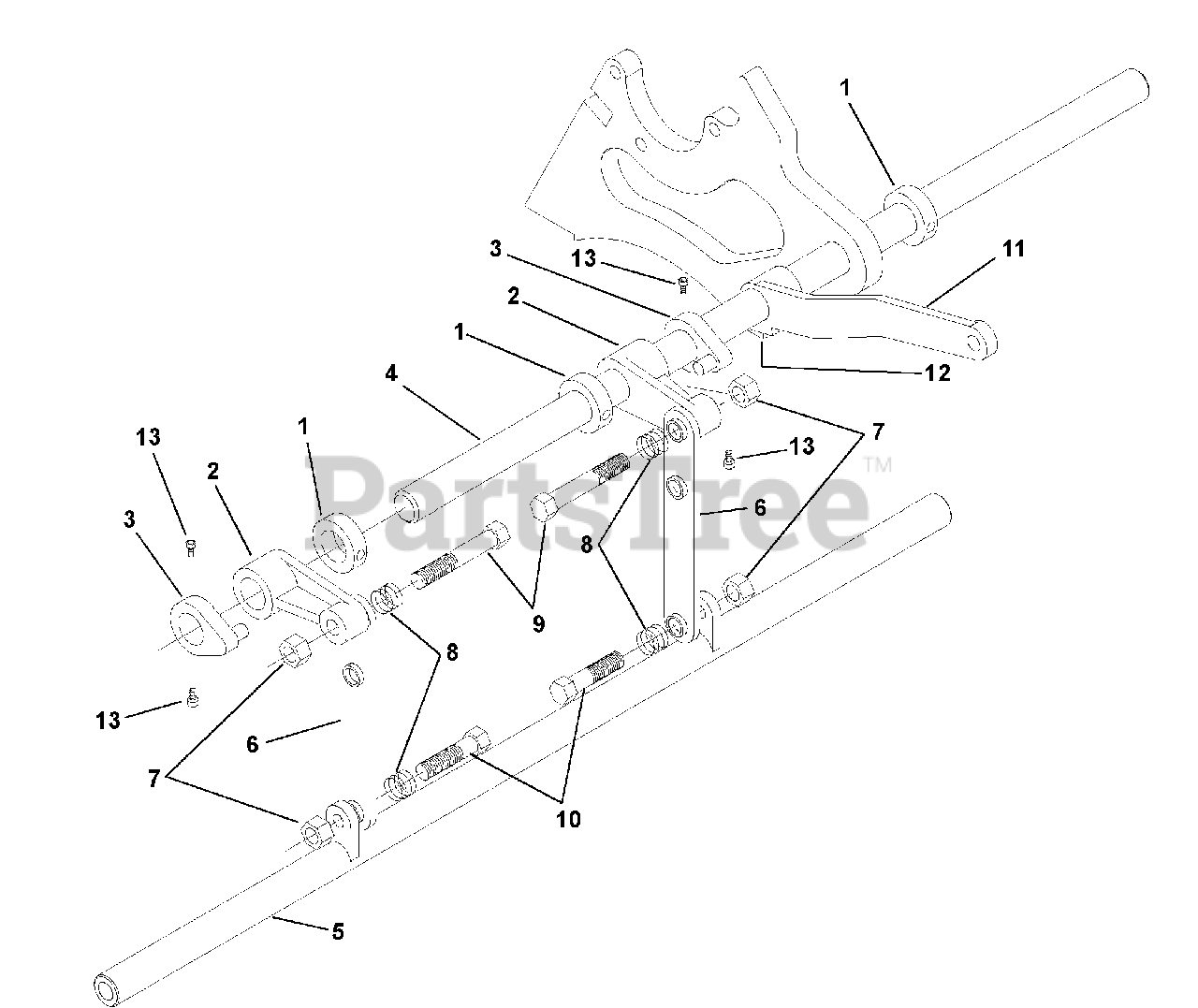

Reel Lift Shaft Assembly 25 Mowers Parts Diagram

  • Title

1

Gravely 02166600

Collar

$

$

Not available

2

Gravely 02815353

Arm, Reel Lift

$

$

Not available

3

Gravely 02814753

Collar, Lift

$

$

Not available

4

Gravely 02814100

Shaft, Lift 25-Inch

$

$

Not available

5

Gravely 06472851

Bar, Spacer 25-Inch

$

$

Not available

6

Gravely 02889900

Link

$

$

Not available

7

Gravely 06500610

Nut, Hex .38-16

$

$

Not available

8

Gravely 08300423

Spring

$

$

Not available

9

Gravely 05900931

Cap Screw, Hex Head .38-16 x 1.75

$

$

Not available

10

Gravely 05900824

Cap Screw, Hex Head .38-16 x 1.50

$

$

Not available

11

Gravely 02815853

Lever, Reel Lift

$

$

Not available

12

Gravely 05900735

Set Screw, Socket .312-24 x .25 Stainless Steel

$

$

Not available

13

Gravely 06000114

Set Screw, Hex Socket Head .25 x .38 Grade 8

$

$

Not available
