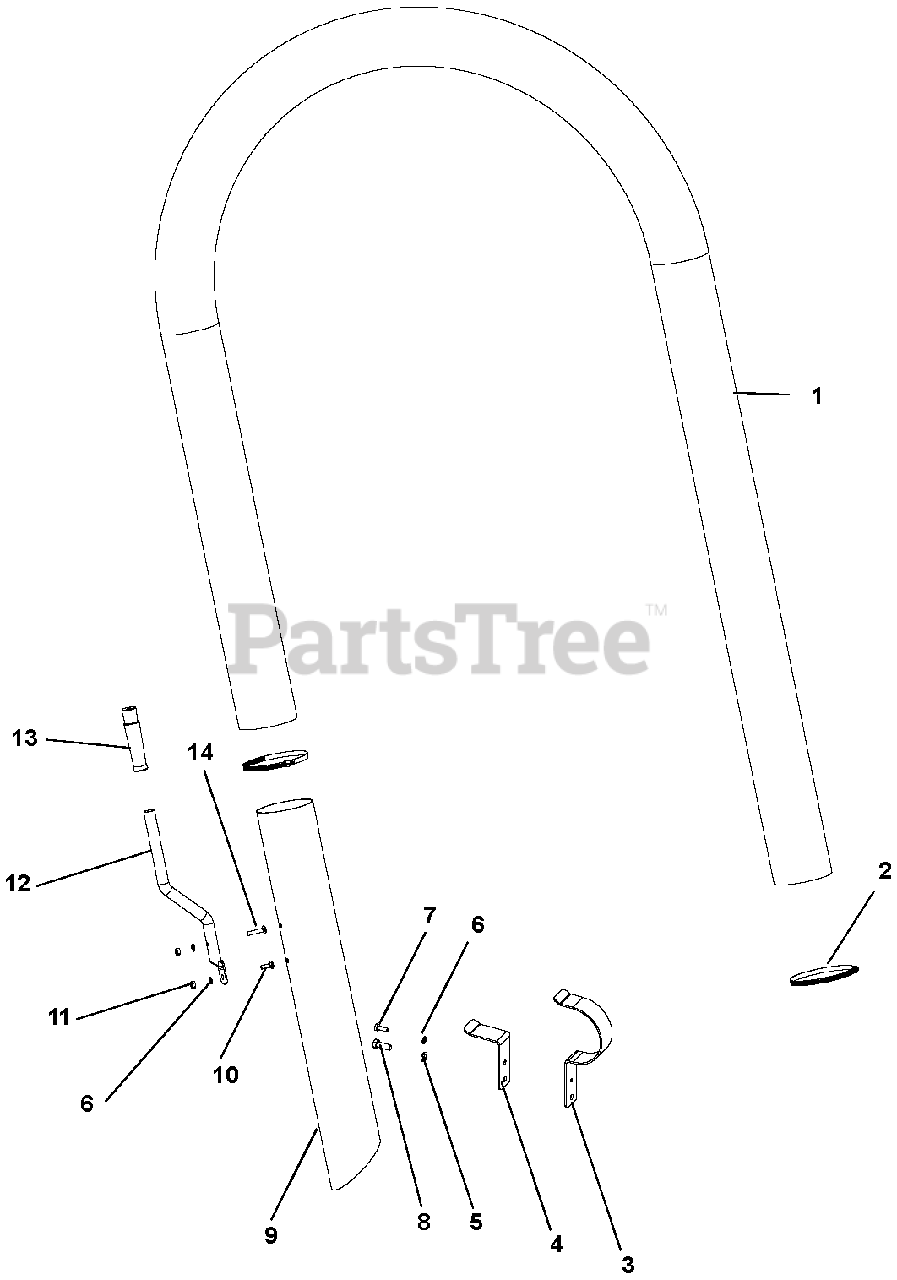

995029 - Gravely APV Vacuum, Briggs & Stratton (SN: 000101 & Above) Upper Hose Support Parts Diagram

APV Vacuum, Briggs & Stratton

Upper Hose Support Parts Diagram

  • Title

1

Gravely P410103

Hose 4" x 10' Tigerflex LKC400

$138.99

$

Usually ships in 4-12 days

0

2

Gravely P64-36-A

Clamp, Hose 4.50 Diameter .50 Band

$

$

Not available

3

Gravely 04227668

Hose Guide, Inner

$16.99

$

Usually ships in 4-12 days

0

4

Gravely 04227768

Hose Guide, Outer

$

$

Not available

5

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely P410100-1

Hose Extension Machined

$

$

Not available

10

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

11

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

12

Gravely P78-62-B

APV Handle for Hose Assembly
(Superseded to 04752151)

$

$

Not available

13

Gravely P78-71-A

Grip, Handle, Black (23-3160-09-01)

Note: (23-3160-09-01)

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 06219700

Bolt, Round Head Square Neck .25-20 x 1.25

$3.99

$

Usually ships in 4-12 days

0
