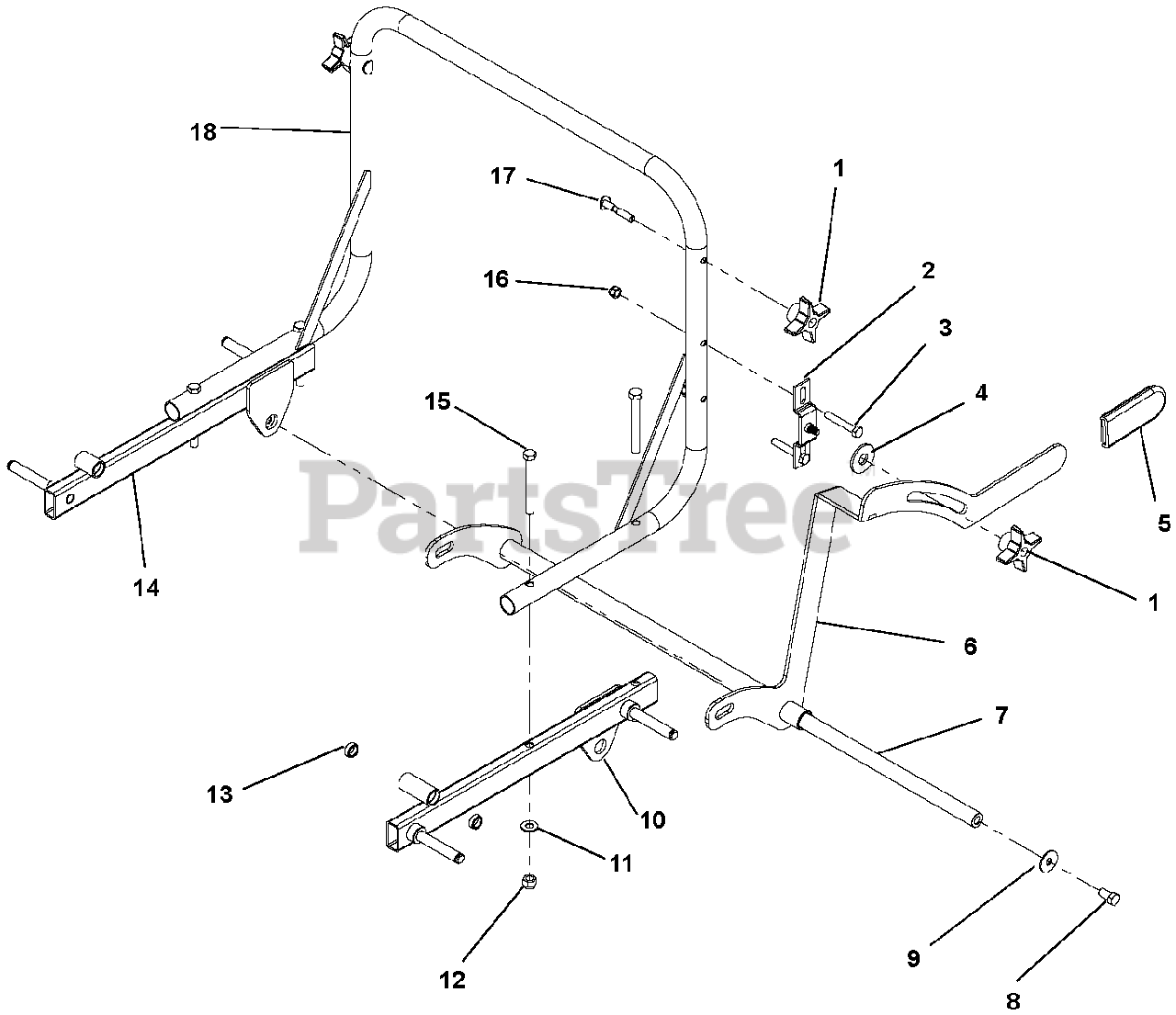

995029 - Gravely APV Vacuum, Briggs & Stratton (SN: 000101 & Above) Lower Handle Assembly Parts Diagram

APV Vacuum, Briggs & Stratton

Lower Handle Assembly Parts Diagram

  • Title

1

Gravely P350139

Knob, 5/16 Thread

$

$

Not available

2

Gravely P410056

APV Height Adjust Bracket

$42.99

$

Usually ships in 4-12 days

0

3

Gravely 05957200

Bolt, Hex .31-18 x 2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

4

Gravely P711510

Washer, Flat .50 x 1.37 x .10

$3.99

$

Usually ships in 4-12 days

0

5

Gravely W27359

Grip (Flat Handle)

Note: (Flat Handle)

$

$

Not available

6

Gravely P410065

APV Height Adjustment Lever Weldment Assembly

$193.99

$

Usually ships in 4-12 days

0

7

Gravely P410054

APV Bar, Height Adjust Lever 21.90625"

$32.99

$

Usually ships in 4-12 days

0

8

Gravely 05959400

Bolt, Hex .38-16 x .75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06425500

Washer, Flat, Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

10

Gravely P410071

APV Side Rail Weldment Assembly, Left

$146.99

$

Usually ships in 4-12 days

0

11

Gravely 06436200

Washer, Flat, Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06535800

Nut, Locking, Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely P361103

Oilite Sleeve AA-618-16

$3.99

$

Usually ships in 4-12 days

0

14

Gravely P410076

APV Side Rail Weldment Assembly, Right

$146.99

$

Usually ships in 4-12 days

0

15

Gravely 05961100

Bolt, Hex .38-16 x 3.25
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely P69-516-32

Bolt, Cont. Head 5/16 x 2.00

$5.99

$

Usually ships in 4-12 days

0

18

Gravely P410052

APV Lower Handle Weldment

$195.99

$

Usually ships in 4-12 days

0
