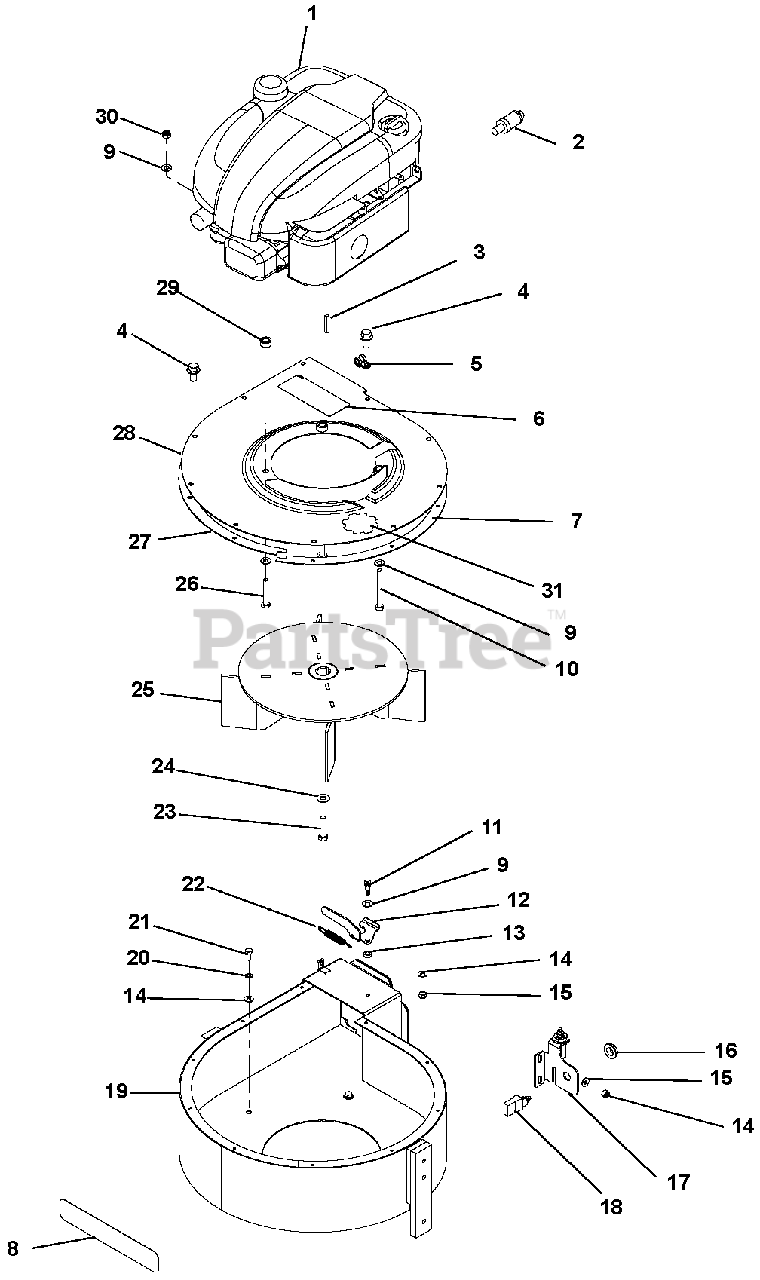

995029 - Gravely APV Vacuum, Briggs & Stratton (SN: 000101 & Above) Engine And Housing Assembly Parts Diagram

APV Vacuum, Briggs & Stratton

Engine And Housing Assembly Parts Diagram

  • Title

1

Gravely 08200633

Briggs & Stratton Pro 850

$

$

Not available

2

Gravely P350183

Valve, Oil Drain (6783A)

Note: (6783A)

$

$

Not available

3

Gravely P74-83-A

3/16 x 1.3/8" Long Key

$

$

Not available

4

Gravely 07430101

Screw, Hex, Flange .25-20 x .63 SLFTAP

$3.49

$

Usually ships in 4-12 days

0

5

Gravely P78-120-A

Cushioned Loop Clamp, 3/8"

$

$

Not available

6

Gravely 04147800

Decal, Danger Read Manual

$

$

Not available

7

Gravely P410029-1

APV Fan Housing Gasket, Left .062

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 05239900

Decal, Gravely Logo

$9.99

$

Usually ships in 4-12 days

0

9

Gravely 06437200

Washer, Flat, Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05962500

Bolt, Hex .31-18 x 3.00
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

11

Gravely 07070103

Bolt, Shoulder .313 x .250 x .250-20

$3.49

$

Usually ships in 4-12 days

0

12

Gravely P410061

APV Hold Down Lever

$

$

Not available

13

Gravely P82-135-A

Spacer .316 x .498 x .197

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 06437300

Washer, Flat, Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely P350135

Switch Nut 9250

$

$

Not available

17

Gravely P410060-1

APV Bracket Switch .125R 1S2B

$32.99

$

Usually ships in 4-12 days

0

18

Gravely P740283

SE Switch, Delta

$

$

Not available

19

Gravely P410010

APV Fan Housing Weldment Assembly

$342.99

$

Usually ships in 4-12 days

0

20

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05900338

Bolt, Hex .25-20 x .63
(Superseded to 05901722)

$

$

Not available

22

Gravely P430051

Spring, Return .313 x .438 x 2.93

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 05986700

Bolt, Hex .38-24 x 1.50

$3.49

$

Usually ships in 4-12 days

0

24

Gravely P360154

Washer, Belleville .38 (90127A031)

Note: (90127A031)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely P410020BAL

APV Fan Assembly, Balanced

$

$

Not available

26

Gravely 05957200

Bolt, Hex .31-18 x 2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

27

Gravely P410029-2

APV Fan Housing Gasket, Right .062

$

$

Not available

28

Gravely 50300800

Deck Weldment with Decals

$

$

Not available

29

Gravely P83-181-A

Spacer .413 x .75 x .39

$

$

Not available

30

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 08000507

Decal, Gravely, Heritage, Small

$28.99

$

Usually ships in 4-12 days

0
