995025 - Parker Truck Loader with 10" Hose (SN: 000101 & Above) Main Assembly Parts Diagram

Truck Loader with 10" Hose

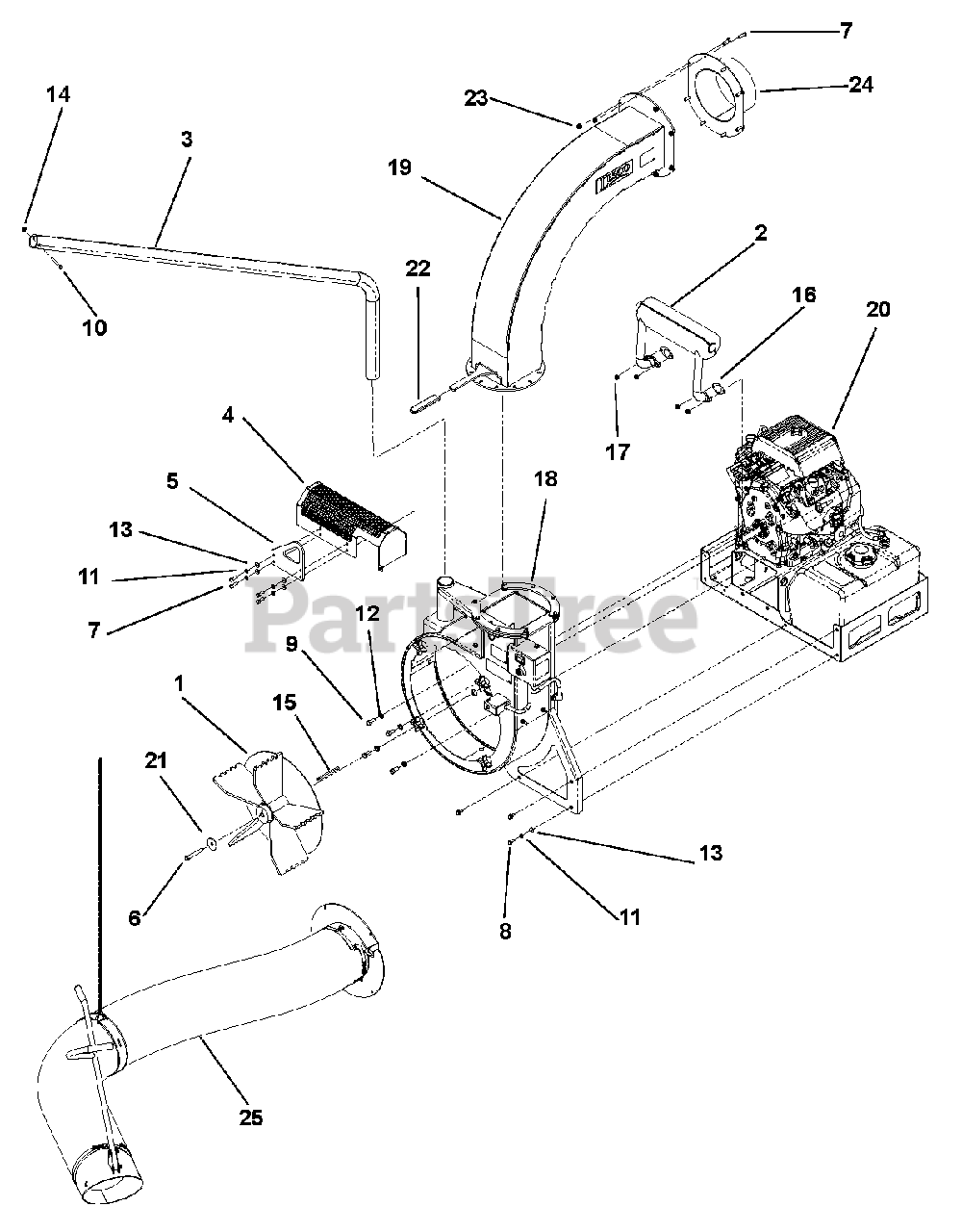

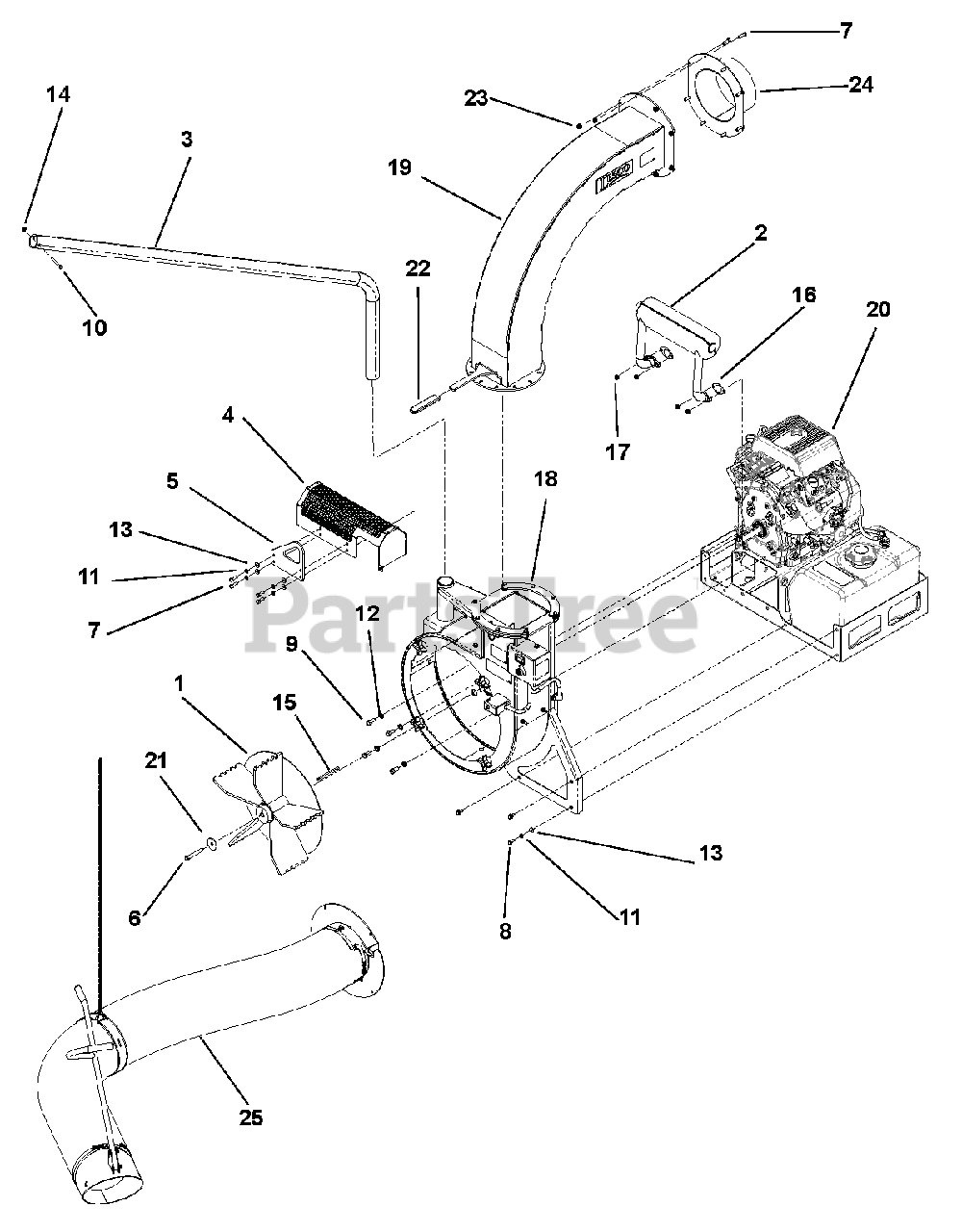

Main Assembly Parts Diagram

  • Title

1

Gravely 04216800

Weldment, Impeller 5 Blade Balanced (995841)

Note: (995841)

$601.99

$

Usually ships in 4-12 days

0

Gravely 04222600

Weldment, Impeller 4 Blade Balanced (995025)

Note: (995025)

$517.99

$

Usually ships in 4-12 days

0

2

Gravely 04236200

Muffler, Subaru 20 HP & 22 HP

$

$

Not available

3

Gravely 04246353

Support Arm

$

$

Not available

4

Gravely 04246451

Weldment, Muffler Shield

$

$

Not available

5

Gravely 04247853

Blower Lift Plate

$

$

Not available

6

Gravely 05900037

Bolt, Hex .44-20 x 3.00 Grade YZ EP80 (995841)

Note: (995841)

$6.99

$

In Stock, only 1 left!

0

Gravely 05901417

Bolt, Hex .38-24 x 3.00 Grade YZ EP80 (995025)

Note: (995025)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05901427

Bolt, Hex .44-14 x .88 Grade 5 EP30

$

$

Not available

10

Gravely 05961600

Bolt, Hex .25-20 x 2.50 Grade 5 YWZC

$2.49

$

In Stock, only 1 left!

0

11

Gravely 06308600

Washer, Lock .31 x .078 Reg YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06309300

Washer, Lock .44 x .109 Reg YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

13

Gravely 06437200

Washer, Flat .344 x .688 x .065 Stl, YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

15

Gravely 06600216

Key, Square .250 x 4.00

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 21549900

Gasket, Exhaust Manifold EH65

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 21549901

Nut, Exhaust Manifold EH65

$

$

Not available

18

Gravely N/A

Fan Housing Assembly, 22 HP (See Fan Housing Assembly on page 8.)

Note: (See Fan Housing Assembly on page 8.)

$

$

Currently unavailable

Gravely N/A

Fan Housing Assembly, 20 HP (See Fan Housing Assembly on page 8.)

Note: (See Fan Housing Assembly on page 8.)

$

$

Currently unavailable

19

Gravely 50552007

Assy, Exhaust Tall W/Decals (Grn)

Note: (Grn)

$

$

Not available

20

Gravely N/A

Engine and Base Assembly, 22 HP (See Engine & Base Assembly on page 6.)

Note: (See Engine & Base Assembly on page 6.)

$

$

Currently unavailable

Gravely N/A

Engine and Base Assembly, 20 HP (See Engine & Base Assembly on page 6.)

Note: (See Engine & Base Assembly on page 6.)

$

$

Currently unavailable

21

Gravely P82-138-B-3

Washer, Area Vac 35, 29/64 x 13/4X

$

$

Not available

22

Gravely 00105593

Grip, Rubber Lever

$

$

Not available

23

Gravely 06545400

Nut, .31-18 Nyloc Flange YXZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 04218453

Weldment, Discharge 8"

$155.99

$

Usually ships in 4-12 days

0

25

Gravely N/A

Vacuum Hose Assembly, 12" (See Vacuum Hose Assembly on page 10.)

Note: (See Vacuum Hose Assembly on page 10.)

$

$

Currently unavailable

Gravely N/A

Vacuum Hose Assembly, 10" (See Vacuum Hose Assembly on page 10.)

Note: (See Vacuum Hose Assembly on page 10.)

$

$

Currently unavailable
