995024 - Parker Truck Loader (SN: 000101 & Above) Main Assembly Parts Diagram

Truck Loader

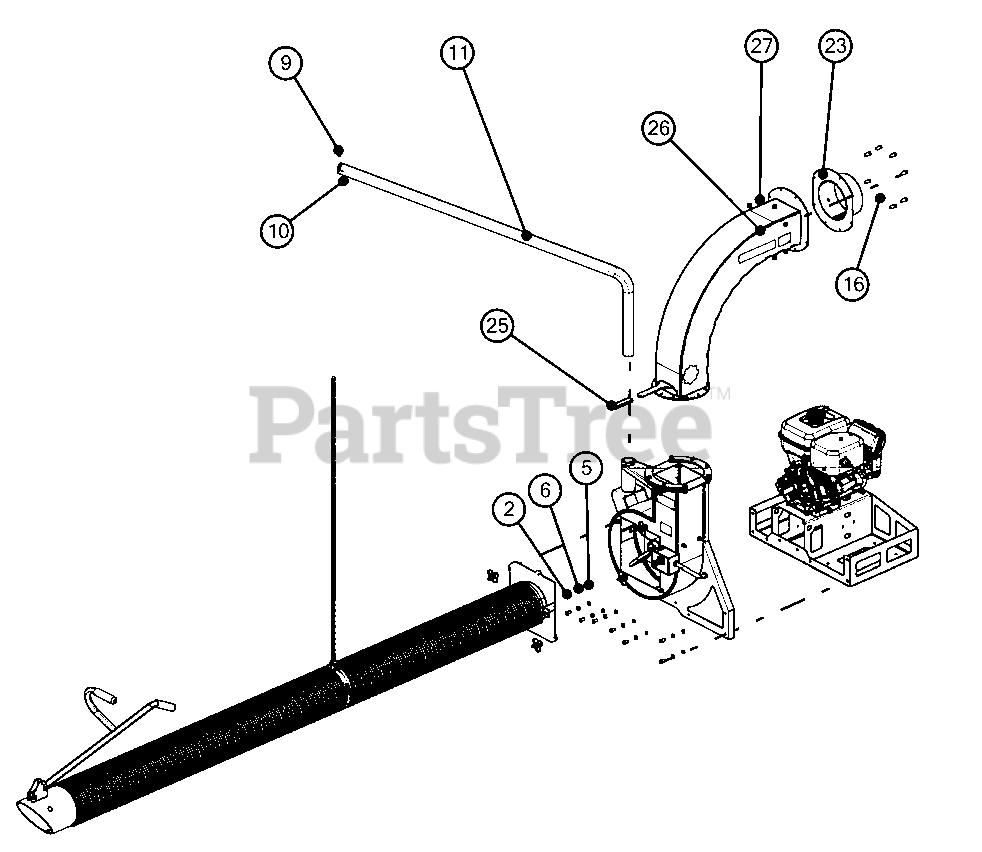

Main Assembly Parts Diagram

  • Title

2

Gravely 05947000

BLT-HEX .31-18 X .75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06308600

WSHR-LK .31 X .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06437200

WSHR-FL-STL .344 X .688 X .065 YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05961600

BLT-HEX .25-20 X 2.50 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

10

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

11

Gravely 04246353

SUPPORT ARM

$

$

Not available

16

Gravely 05946900

BLT-HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

23

04248453

BLDT, DISCHARGE 8"

$

$

Not available

25

Gravely 00105593

GRIP, RUBBER LEVER

$

$

Not available

26

Gravely 50552008

ASSY, EX ELB W/DECALS GRAVELY

$

$

Not available

27

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
