994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 002500 & Above) Fuel, Hydraulic And Handle Assembly Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

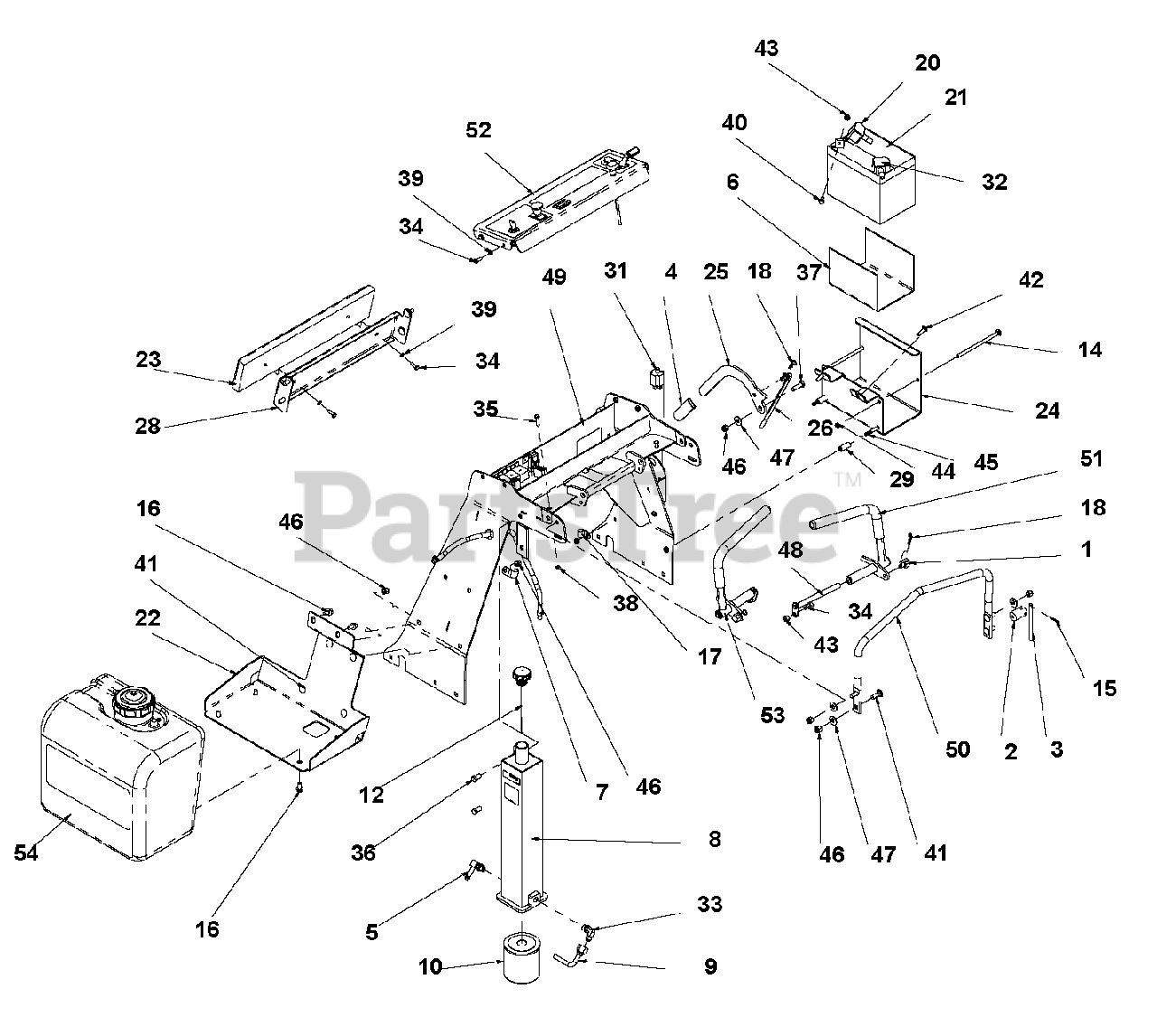

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Ariens 00874300

SWIVEL
(Superseded to D13028)

$83.99

$

Usually ships in 4-12 days

0

2

Ariens 00874500

BASE, SPEED CONTROL LOCK

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 00874600

HANDLE

$

$

Not available

4

Ariens TCU19034

GRIP
(Superseded to 03826900)

$3.99

$

In Stock, only 1 left!

0

5

Ariens 07019700

FTG-ADPTR .562-18 ST THD

$6.99

$

Usually ships in 4-12 days

0

6

Ariens 00877200

ISOLATOR PAD, BATTERY
(Superseded to D28159)

$15.99

$

Usually ships in 4-12 days

0

7

Ariens E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 00883300

HYDRAULIC RESERVOIR, INC DECAL
(Superseded to TCA15373)

$

$

Not available

9

Ariens 00954500

ELBOW FITTING

$14.99

$

Usually ships in 4-12 days

0

10

Ariens 00669300

ELEMENT, OIL FILTER

$26.99

$

In Stock, only 4 left!

0

11

Ariens 06900108

CLAMP
(Superseded to 03278800)

Note: (Red) #

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00882500

CAP
(Superseded to TCA15122)

$

$

Not available

13

Ariens 00950900

HOSE, 1/4" ID LOW PERM FUEL 50

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 05900106

BOLT, 3/8-16 X 3-3/4 CHCS

$

$

Not available

15

Ariens 05800005

PIN, SPRING 5/32 X 1

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 19M7865

SCREW,HEX,FL,JDS123,M8X1.25X16

$

$

Not available

17

Ariens 00888500

P-CLIP, .500 INSULATED
(Superseded to 06900512)

$

$

Not available

18

Ariens 06703600

PIN-HAIR INT .09X1.65 PL
(Superseded to 00121080)

$2.99

$

In Stock, Qty 9

0

19

Ariens 00180266

GROMMET, ROUND RUBBER .625X.19

$

$

Not available

20

Ariens 00181148

CABLE, BATTERY STARTER 48"

$38.99

$

Usually ships in 4-12 days

0

21

Ariens 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

22

Ariens 00896300

BRACKET, FUEL TANK MOUNTING
(Superseded to 00200603)

$

$

Not available

23

Ariens 00896400

PAD, THIGH
(Superseded to 00200606)

$

$

Not available

24

Ariens 00200613

TRAY, BATTERY

$

$

Not available

25

Ariens 00896800

LEVER, BRAKE
(Superseded to 00200614)

$

$

Not available

26

Ariens 00896900

LINK, BRAKE Y
(Superseded to 00200615)

$28.99

$

Usually ships in 4-12 days

0

27

Ariens 05500131

BUSHING, BRAKE PIVOT Y
(Superseded to 00200671)

$

$

Not available

28

Ariens 00896400

PAD, THIGH
(Superseded to 00200606)

$

$

Not available

29

Ariens 05500135

BUSHING, .364X.540X1.250 Y

$

$

Not available

30

Ariens 00200704

HARNESS, WIRING

$252.99

$

Usually ships in 4-12 days

0

31

Ariens 00942200

SWITCH, NO-NO-NC GREY PLUNGER
(Superseded to 00200705)

$17.99

$

In Stock, only 1 left!

0

32

Ariens 03387900

CABLE, BATTERY GROUND 25"

$35.99

$

Usually ships in 4-12 days

0

33

Ariens 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

34

Ariens 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

35

Ariens 00960002

BOLT, 1/4-20X1.00 HEX 5 Y
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

36

Ariens 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 00960500

QUICK START SHEET

$

$

Not available

39

Ariens 00960600

WDMT,IDLER PIVOT RAPID XZ 52"

$

$

Not available

40

Ariens 00963001

PLATE, ENGINE MOUNT

$

$

Not available

41

Ariens 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

42

Ariens 00963074

BOLT, 5/16-18X1.00 CRG 2 Y

$

$

Not available

43

Ariens 00964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

44

Ariens 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 00967185

BOLT, 5/16-18X2.00 CRG 5 Y
(Superseded to 06200127)

$3.99

$

Usually ships in 4-12 days

0

46

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

47

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

49

Ariens 03740020

WLDT, ARIENS CONSOLE W/DECALS

$

$

Not available

50

Ariens 03730751

SUPPORT, HANDLE PAINTED

$112.99

$

Usually ships in 4-12 days

0

51

Ariens 03730900

LH CONTROL LEVER W/GRIP

$

$

Not available

52

Ariens 03834800

ASSEMBLY, CONSOLE ARIENS

$

$

Not available

53

Ariens 03731000

RH CONTROL LEVER W/GRIP

$246.99

$

In Stock, only 1 left!

0

54

Ariens 04326500

TANK ASSY,EPA FUEL,ARIENS

$

$

Not available
