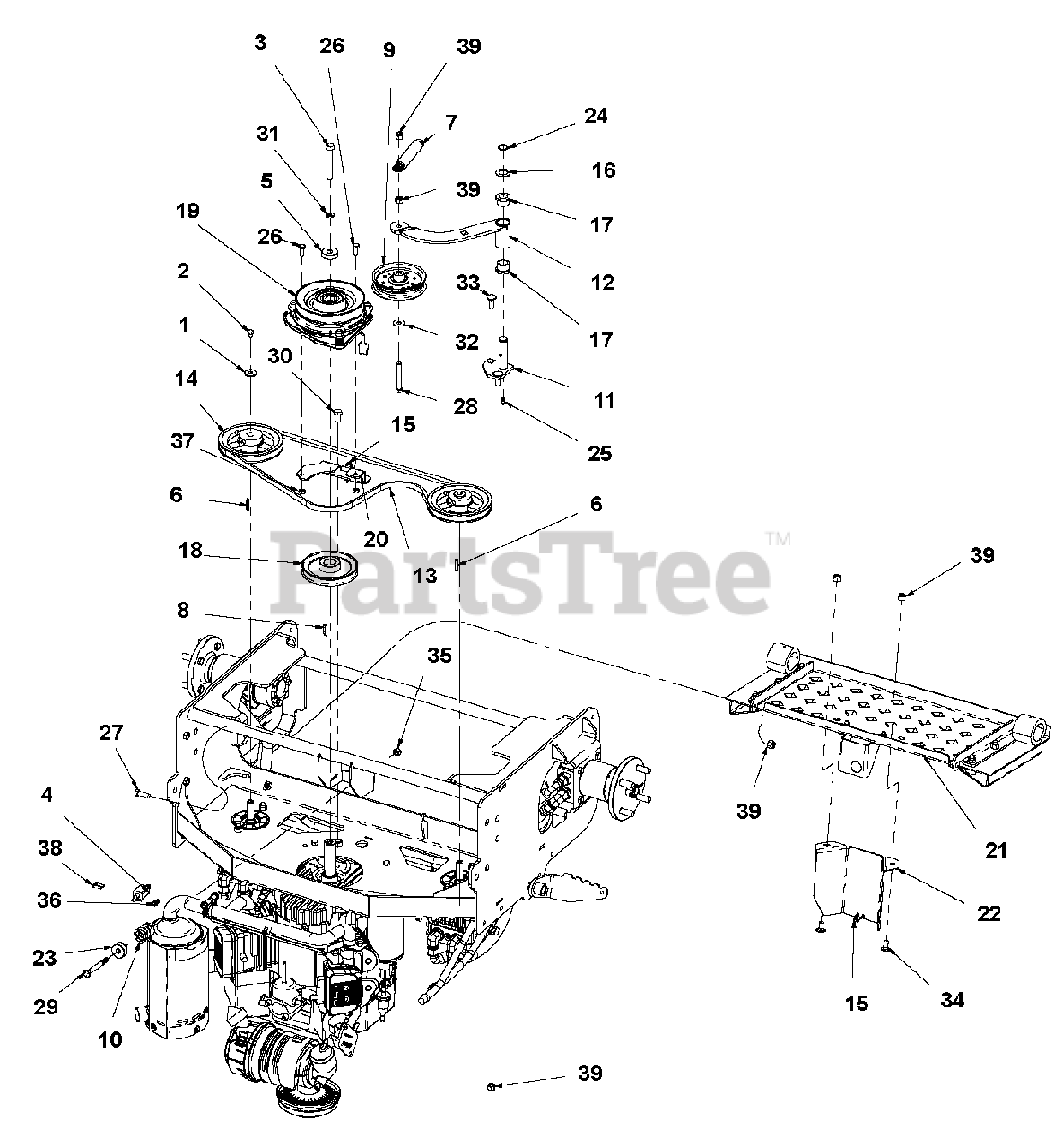

994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 002500 & Above) Clutch, Pump Components And Foot Plate Assembly Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

Clutch, Pump Components And Foot Plate Assembly Parts Diagram

  • Title

1

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

2

Ariens 05900124

BOLT, M6X1.00X10 HEX 8.8 Y

$

$

Not available

3

Ariens 05900040

BLT-HEX .44-20X2.25 G5 YZ EP80

$6.99

$

Usually ships in 4-12 days

0

4

Ariens 00875300

SWITCH
(Superseded to 03657100)

Note: (N.0.)

$9.49

$

In Stock, only 2 left!

0

5

Ariens 00875500

SPACER, PTO CLUTCH
(Superseded to D18056)

$20.99

$

Usually ships in 4-12 days

0

6

Ariens 06600007

KEY, .250 X .250 X .995 TPR
(Superseded to D18145)

$

$

Not available

7

Ariens D18071

SPRING, EXT .900X.135X4.50 Y

$11.99

$

Usually ships in 4-12 days

0

8

Ariens D18145

KEY, .250 X .250 X .995 TPR

$

$

Not available

9

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

10

Ariens 08300038

SPRING
(Superseded to D38128)

$

$

Not available

11

Ariens GDU10007

PLATE, IDLER MOUNT

$

$

Not available

12

Ariens GDA10005

ARM, IDLER WELDMENT

$77.99

$

Usually ships in 4-12 days

0

13

Ariens 07200118

V-BELT
(Superseded to GDU10025)

$46.99

$

In Stock, only 1 left!

0

14

Ariens TCA15316

ASSY, PUMP PULLEY W/SET SCREW

$51.99

$

Usually ships in 4-12 days

0

15

Ariens 07519900

TIE WRAP, BLACK LG 7.31

$3.49

$

Usually ships in 4-12 days

0

16

Ariens 00150052

WSHR-FL-STL .750X1.250X.048 YZ

$

$

Not available

17

Ariens 00191179

BRG, FLG .750X1.00X.750 BRNZ

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 07300121

SHEAVE, ENGINE 4.75X1.125

$177.99

$

Usually ships in 4-12 days

0

19

Ariens 03789900

CLUTCH, OGURA GT1A-AR03

$349.99

$

In Stock, only 3 left!

0

20

Ariens 00899900

PLATE, CLUTCH DOG
(Superseded to 00200666)

$51.99

$

Usually ships in 4-12 days

0

21

Ariens 00200719

ASSEMBLY, FOOT PLATE

$

$

Not available

22

Ariens 00841500

SCREW, CYLINDER, D912 M 4X 5

$

$

Not available

23

Ariens 06400027

WASHER, SPRING Y
(Superseded to 00200770)

$

$

Not available

24

Ariens 05700135

SNAP RING, .750 X .042 EXT

$2.49

$

In Stock, only 4 left!

0

25

Ariens 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0

26

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

29

Ariens 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

30

Ariens 05900121

@BLT-HEX .44-14X.75 GR5 YWZC

$

$

Not available

31

Ariens 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, Qty 11

0

32

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

34

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

35

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

36

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06111100

SCR-MCH 10-24X.62 P/HD

$0.99

$

In Stock, Qty 12

0

39

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0
