994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 000101 - 002499) Spindle Assembly Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

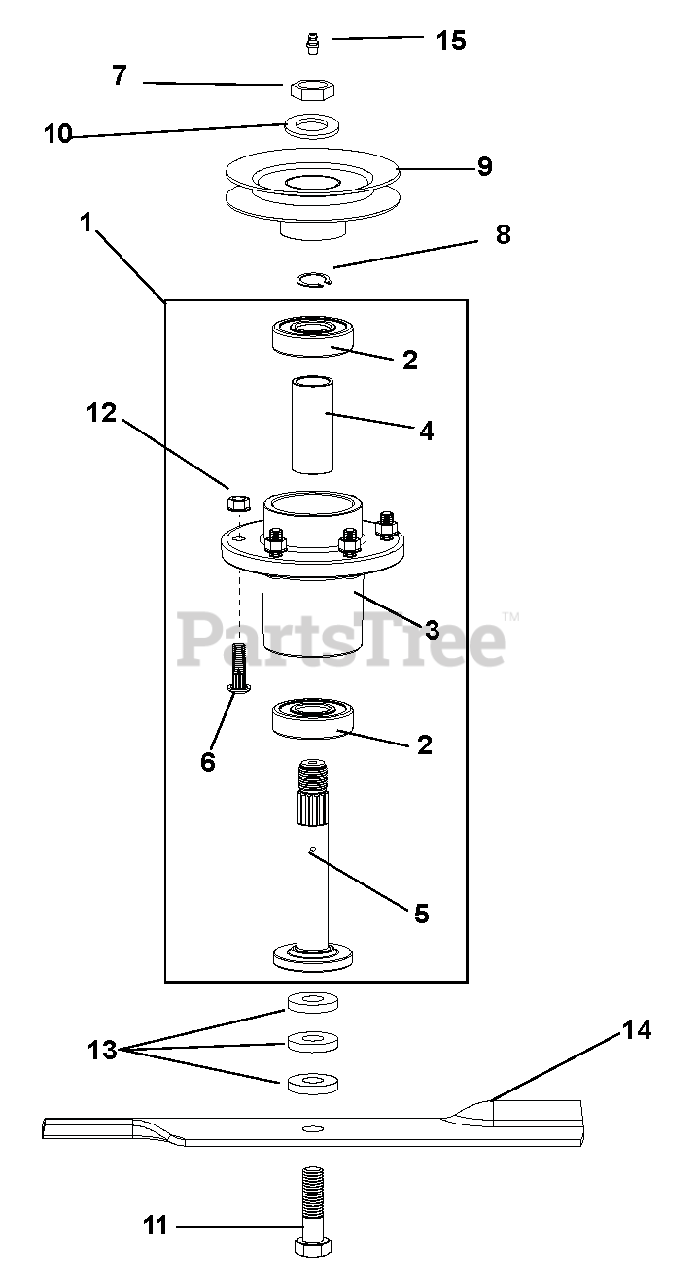

Spindle Assembly Parts Diagram

  • Title

1

Ariens 00200262

ASSY, SPINDLE S/O

Note: (Includes 2, 3, 4, 5, 6, 15)

$267.99

$

In Stock, only 2 left!

0

2

Ariens 05400019

BALL BEARING
(Superseded to 00200046)

$26.99

$

Usually ships in 4-12 days

0

3

Ariens 00872800

HOUSING
(Superseded to 00200042)

$87.99

$

Usually ships in 4-12 days

0

4

Ariens 00873000

SPACER, 1.000 X 1.250 X 2.772
(Superseded to 00200044)

$29.99

$

Usually ships in 4-12 days

0

5

Ariens 00200196

SHAFT, SPINDLE 3/4-16

$

$

Not available

6

Ariens 05900105

BOLT, 3/8-16 X 1.25 RIB
(Superseded to 00200045)

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, only 2 left!

0

8

Ariens 00200263

RING RETAINER S/O

$6.99

$

Usually ships in 4-12 days

0

9

Pulley, Cutter Housing

Note: Refer to Deck Assembly page

$

$

Not available

10

Ariens 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$1.99

$

Usually ships in 4-12 days

0

11

Ariens 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

13

Ariens 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$6.99

$

In Stock, only 1 left!

0

14

Ariens 00878200

18.0" BLADE, 52" DECK
(Superseded to GDU10231)

Note: (52-inch Decks)

$30.99

$

In Stock, Qty 20+

0

15

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0
