994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 000101 - 002499) Console Components Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

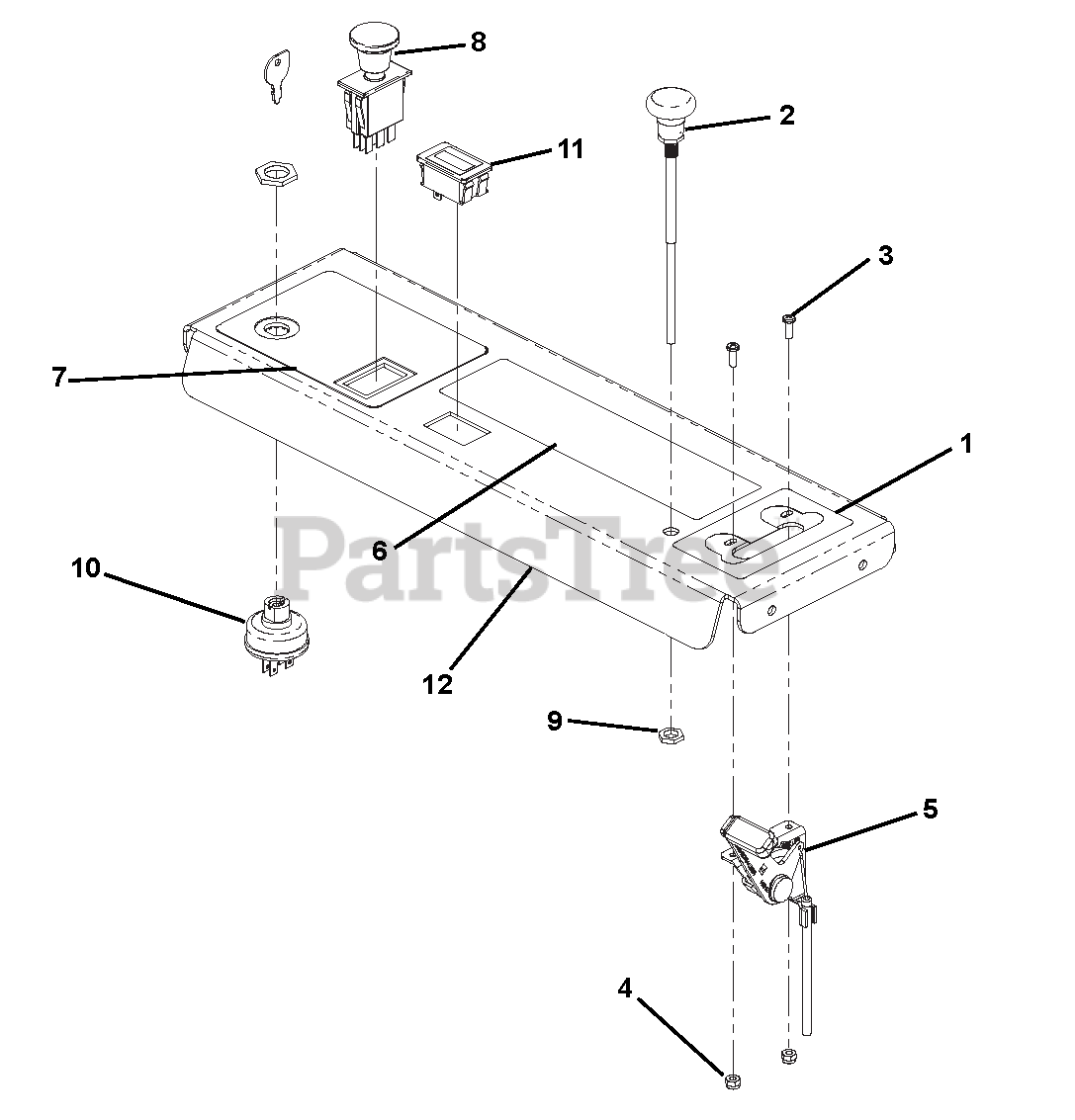

Console Components Parts Diagram

  • Title
1

Ariens 00875100

DECAL, THROTTLE
(Superseded to D18021)

$27.99

$

Usually ships in 4-12 days

0

2

Ariens 00876800

CABLE, CHOKE
(Superseded to D18427)

$51.99

$

Usually ships in 4-12 days

0

3

Ariens 06200013

@BLT-HEX 8-32 X .5 YWZC

$

$

Not available

4

Ariens 06531300

@NUT-LK-NYL 8-32 W/INSTR YWZC

$0.99

$

Usually ships in 4-12 days

0

5

Ariens 00881800

CABLE, THROTTLE
(Superseded to TCA15051)

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 00884000

DECAL, GENERAL CAUTION

$10.99

$

Usually ships in 4-12 days

0

7

Ariens 00885000

DECAL, PTO/IGNITION
(Superseded to 00111886)

$

$

Not available

8

Ariens 00941600

SWITCH, PTO ENGAGEMENT
(Superseded to 00136574)

$28.99

$

In Stock, only 1 left!

0

9

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 00953000

SWITCH, KEY - 3 POSITION
(Superseded to 00180620)

$35.99

$

Usually ships in 4-12 days

0

11

Ariens 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

12

Ariens 03731516

ASSEMBLY, ARIENS CONTROL PANEL

$

$

Not available
