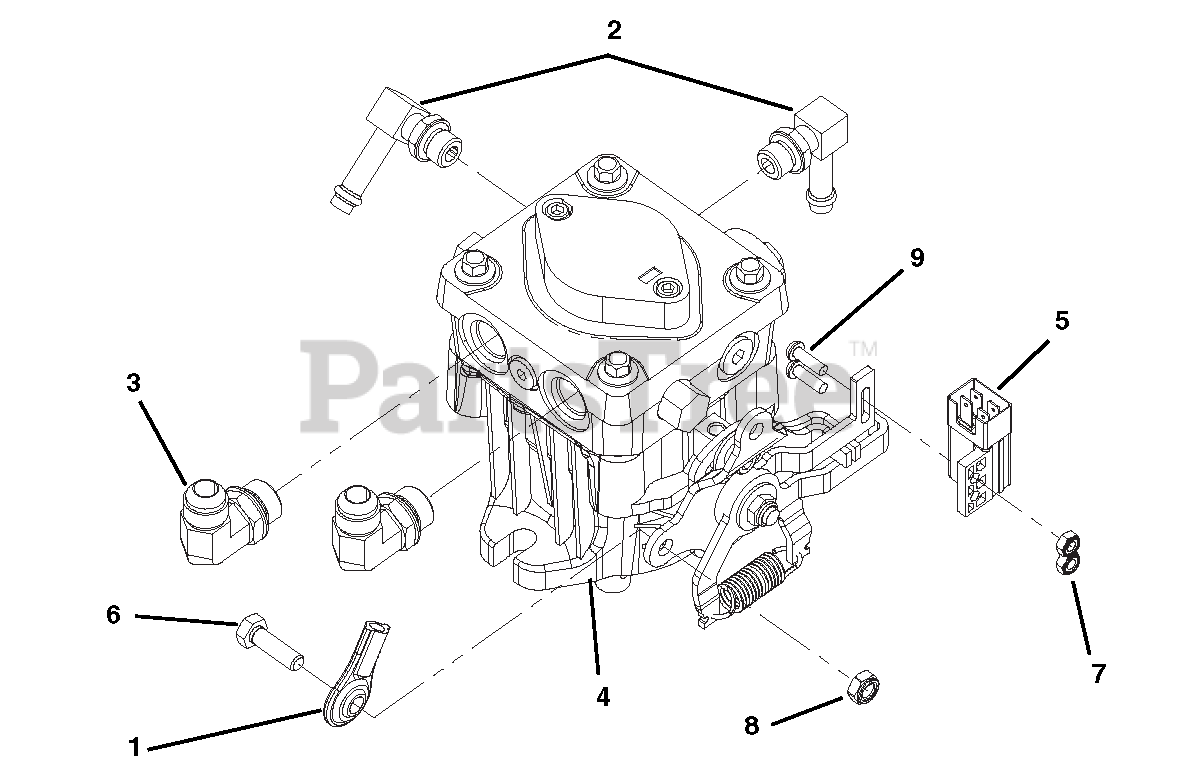

994604 (GSRKA1934S) - Ariens Surfer 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Pump Componets Parts Diagram

Surfer 34" Stand-On Mower, 19hp Kawasaki

Pump Componets Parts Diagram

  • Title
1

Ariens 03787100

ALIGNABALL, 5/16 RH THREAD

$12.99

$

In Stock, only 2 left!

0

2

Ariens D24028

FTG, 90 9/16MOR X 3/8HOSE

$

$

Not available

3

Ariens D14196

FTG, 90 ADP JIC-ORB 6801-08-08

$5.99

$

Usually ships in 4-12 days

0

4

Ariens TCA14966

PUMP, HYD RH

$841.99

$

Usually ships in 4-12 days

0

Ariens TCA14965

PUMP, HYD LH

$841.99

$

Usually ships in 4-12 days

0

5

Ariens 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

6

Ariens 00960023

BOLT, 5/16-18X1.00 HEX 5 Y

$

$

Not available

7

Ariens 00964013

LOCKNUT, 10-24 NYLOC Y

$

$

Not available

8

Ariens 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 00967340

SCREW, 10-24X.625 PAN PHL MACY

$

$

Not available

NS

Ariens D19003

KIT, PUMP SEAL BDP10 & 12 S/O

$

$

Not available
