994602 (GSRKA1952S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Wheel And Strut Assembly Parts Diagram

Surfer Walk-Behind Mower

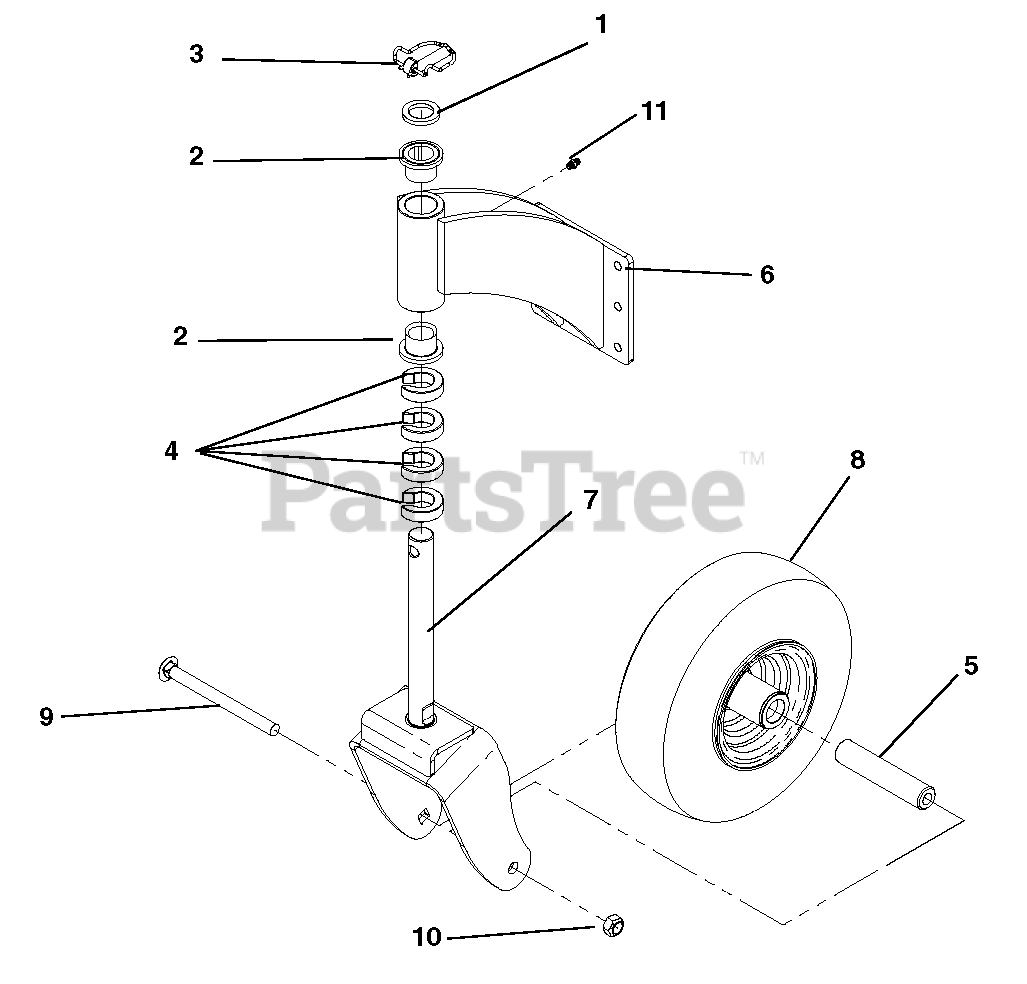

Wheel And Strut Assembly Parts Diagram

  • Title

1

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$9.99

$

In Stock, only 2 left!

0

2

Gravely D18076

Bearing, FLG 1.00 x 1.25 x 1.00

$6.99

$

In Stock, only 3 left!

0

3

Gravely 00161397

Pin, Lock .438 x 2.00

$9.49

$

In Stock, only 2 left!

0

4

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .50 (48-inch Decks)

Note: (48-inch Decks)

$3.99

$

In Stock, Qty 6

0

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .50 (52-inch Decks)

Note: (52-inch Decks)

$3.99

$

In Stock, Qty 6

0

5

Gravely 00191049

Tube, 1.00 x .50 x 4.76

$51.99

$

In Stock, only 2 left!

0

6

Gravely 00298400

Weldment, Caster Mount Bracket (48-inch Decks)

Note: (48-inch Decks)

$

$

Not available

Gravely 00200729

Weldment, Caster Mount Bracket (52-inch Decks)

Note: (52-inch Decks)

$

$

Not available

7

Gravely 00494551

Weldment, Front Wheel Fork (48-inch Decks)

Note: (48-inch Decks)

$

$

Not available

Gravely 00200731

Weldment, Front Wheel Fork (52-inch Decks)

Note: (52-inch Decks)

$

$

Not available

8

Gravely 00200778

Wheel, Front 11 x 4 x 5

$113.99

$

In Stock, only 1 left!

0

9

Gravely 00963011

Bolt, 1/2-13 x 6.00 CRG
(Superseded to 06223400)

$9.49

$

In Stock, only 2 left!

0

10

Gravely AA964000

Locknut, 1/2-13 Crown
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

11

Gravely 00959995

Grease Zerk, 1/4-28 STR .69 LG

$3.49

$

Usually ships in 4-12 days

0
